Rear seats
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Interior trim - GTV › Rear seats
70 BodyworkRear seats

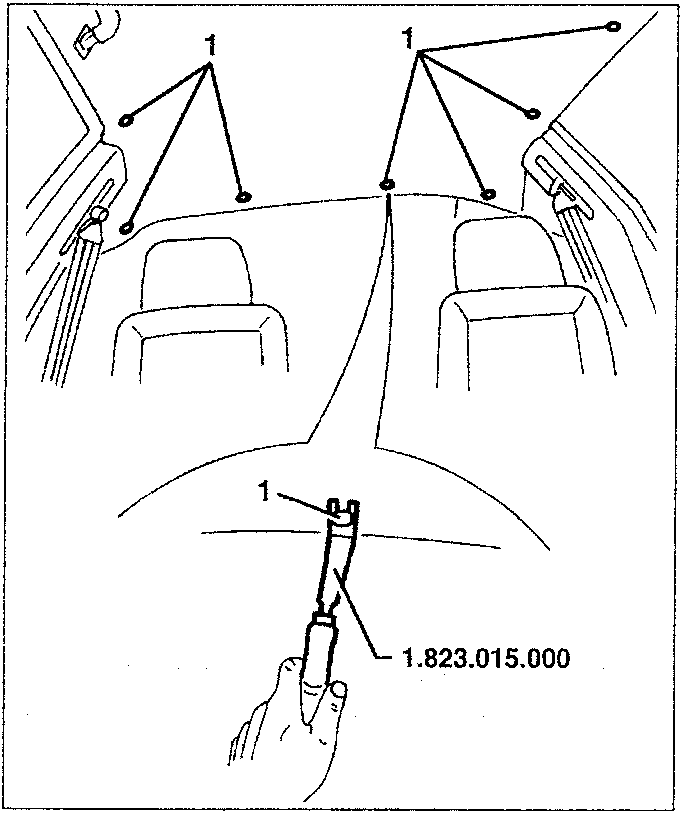

- Using tool 1.823.015.000 remove the seven plastic nails fastening the perimeter of the roof lining.

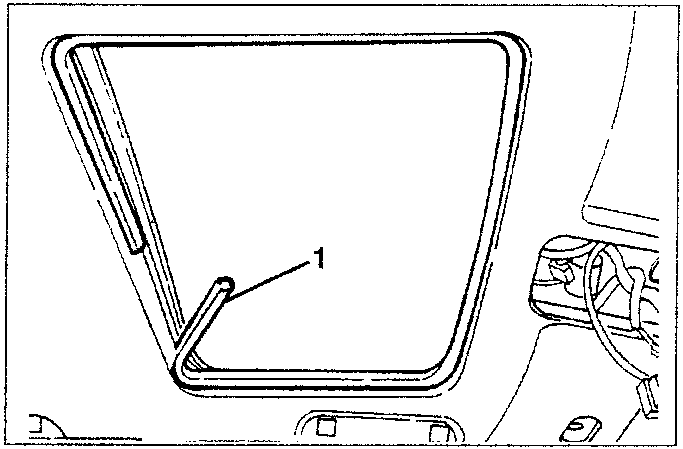

- If the car is fitted with a sunroof, prise and remove the inner seal.

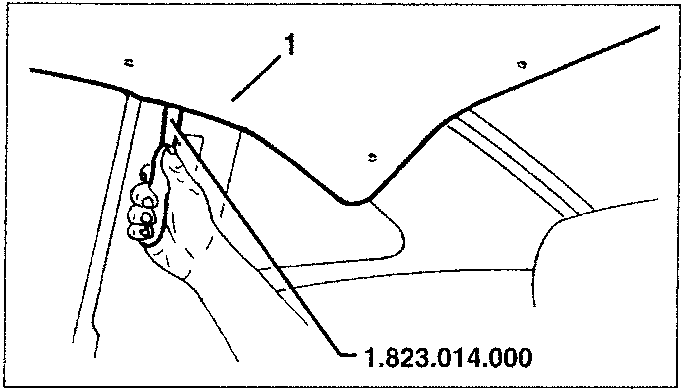

- Using tool 1.823.014.000 remove the roof lining from the centre pillar trim.
– Fold the seat backs, bring the roof lining down, roll it and remove it from the right-hand door.
Refit the roof lining reversing the sequence followed for removal.
REAR SEATS
BENCH
Removal / Refitting
– Move the front seats forward completely and fold the seat backs.

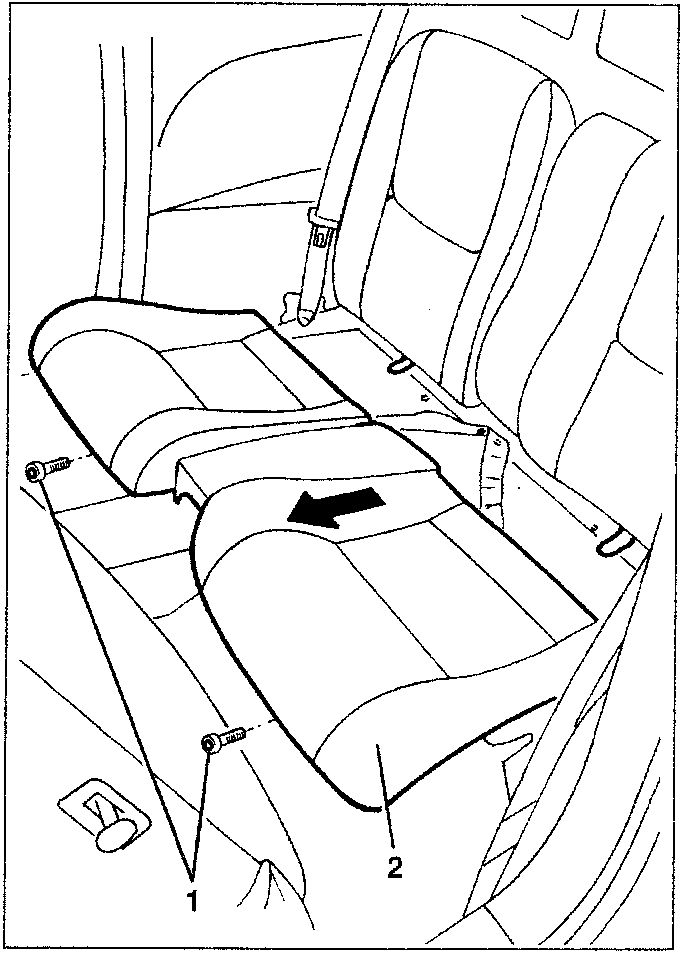

- Slacken the two screws fastening the bench front.
- Remove the bench taking it off the rear hooks.
Refit the bench reversing the sequence followed for removal.
