Front seat belts

FRONT SEAT BELTS

REMOVAL / REFITTING

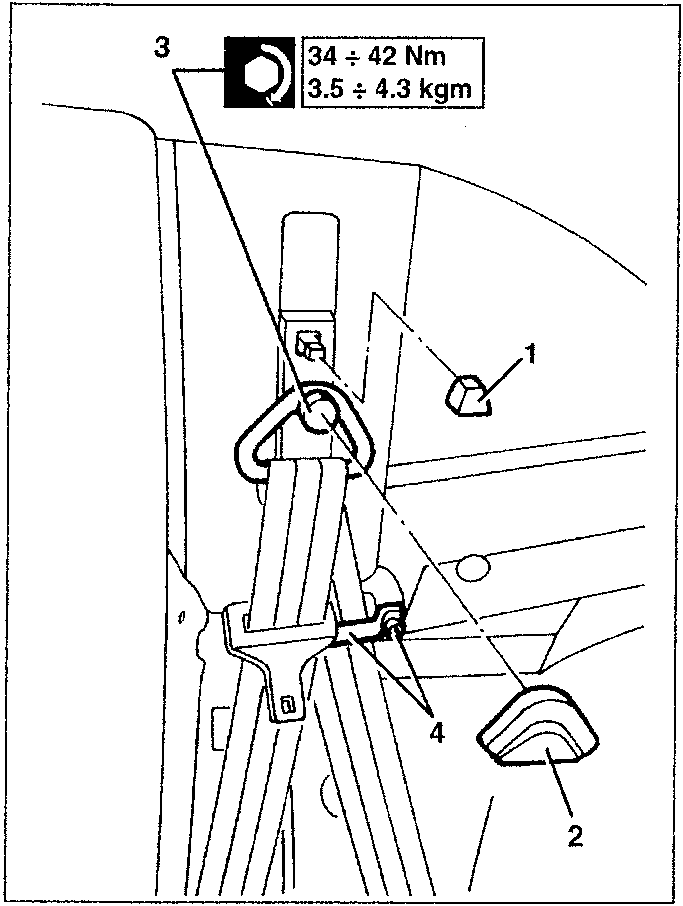

• Remove the side panel (see specific paragraph).

1. Remove the knob of the seat belt height adjustment lever.
2. Remove the cover of the upper seat belt loop.
3. Slacken the screw and disconnect the seat belt loop.
4. Slacken a screw of the belt lead and release the belt.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

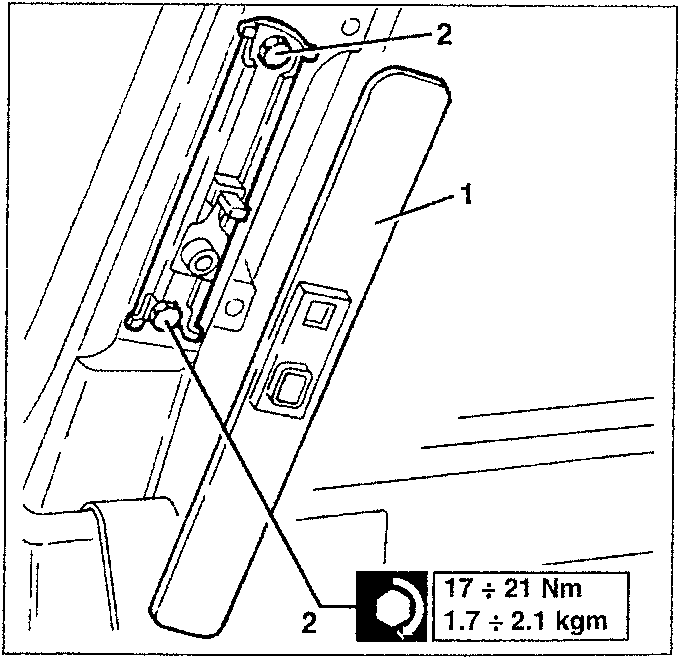

FRONT SEAT BELT HEIGHT ADJUSTMENT DEVICE

REMOVAL / REFITTING

• Remove the centre pillar trim.

1. Remove the plate.
2. Slacken the fastening screws and remove the adjustment slide.

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

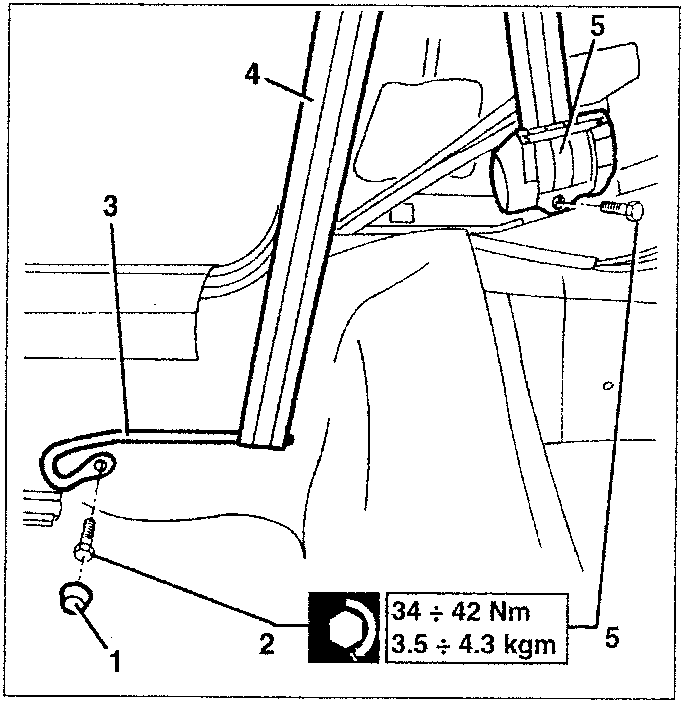

FRONT SEAT BELTS

REMOVAL / REFITTING

1. Remove the cap protecting the lower seat belt connector.
2. Slacken the screw.
3. Remove the lower connection slider.
4. Withdraw the belt.
5. Slacken the screw and remove the reel.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

Refit the seat belt reversing the sequence followed for removal.
