Interior trim - GTV › Rear seat belts
70 BodyworkRear seat belts

Refit the device reversing the sequence followed for removal.

REAR SEAT BELTS

REMOVAL / REFITTING

  • Remove the rear pillar trim (see specific paragraph).
  1. Raise the protective cover.
  2. Slacken the screw and disconnect the upper seat belt loop.
  3. Slacken the screw fastening the reel.
  4. Remove the reel and retrieve the belt.

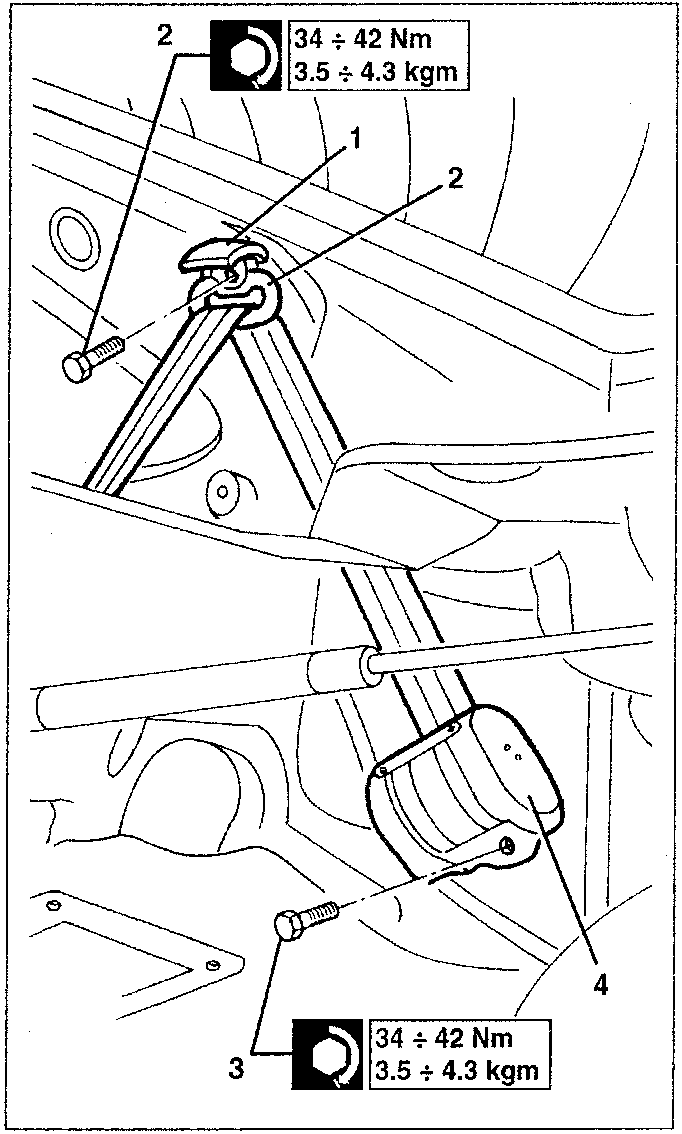

Diagram showing rear seat belt components with numbered parts: 1, 2, 3, 4. Torque values shown as 34 ÷ 42 Nm / 3.5 ÷ 4.3 kgm for each part

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

DOOR SURROUND SEAL

STACCO

  • Remove the heel board (see specific paragraph).
  1. Prise the seal starting from the front jointing pin and continuing up to complete removal.

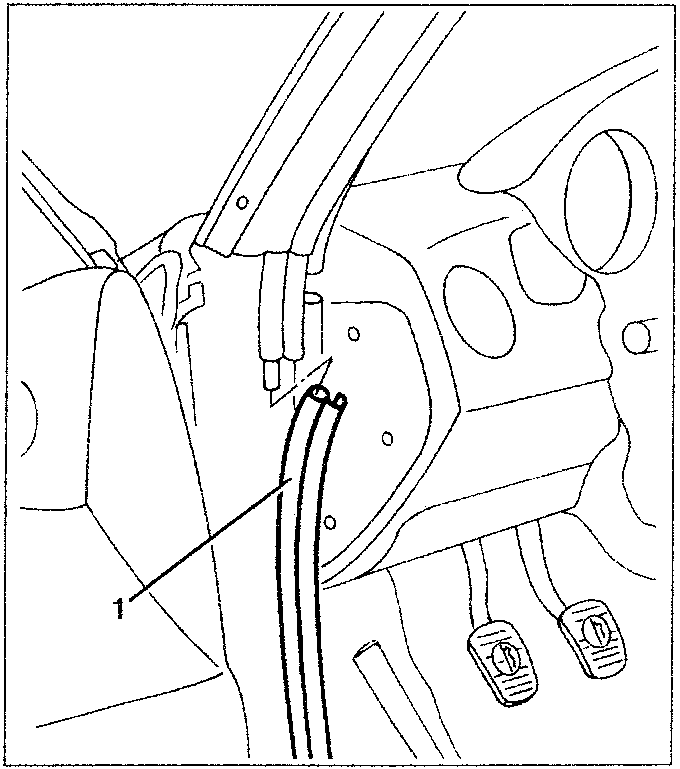

Diagram showing door surround seal being prised off, with part 1 indicated.

DOOR SURROUND SEAL

Refit the seat belts reversing the sequence followed for removal.

DOOR SURROUND SEAL

Slacken the centre fastening screw.

  1. Remove the centre seat belt straps.

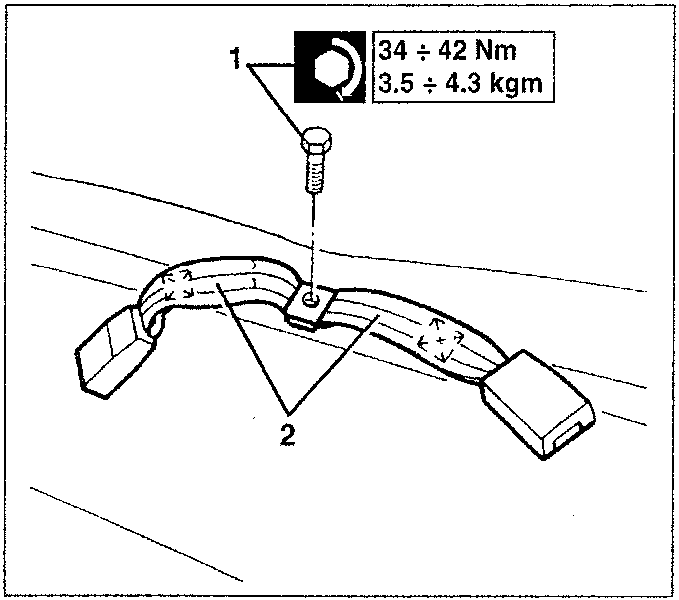

Diagram showing seat belt strap with numbered parts 1 and 2. Torque value shown as 34 ÷ 42 Nm / 3.5 ÷ 4.3 kgm for part 1.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm
