Dis-assembly
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Interior trim - GTV › Dis-assembly
70 BodyworkDis-assembly
Dis-assembly

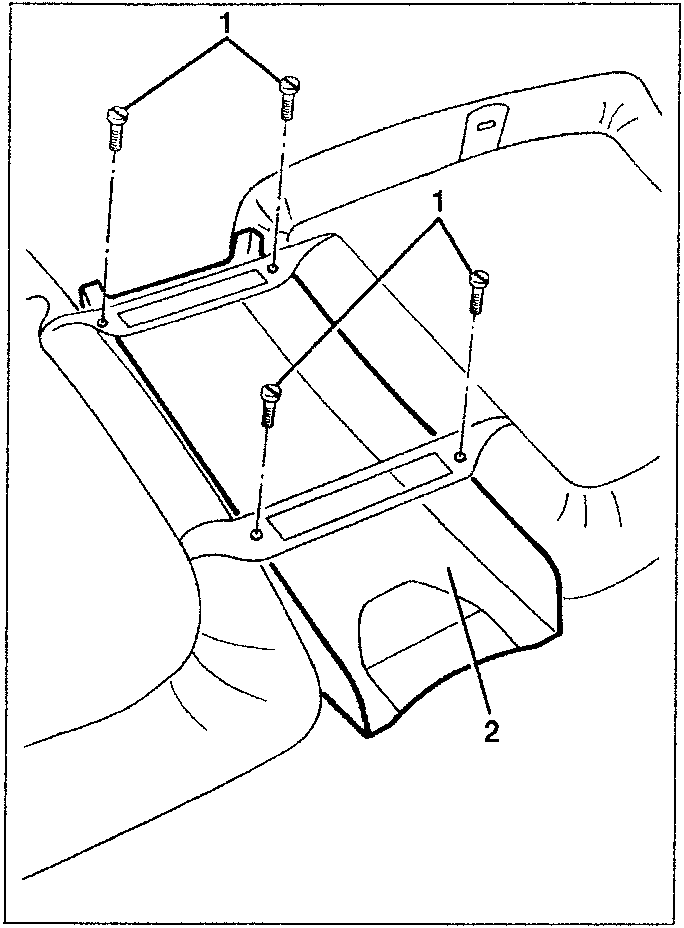

- Slacken the four screws.
- Remove the centre partition.

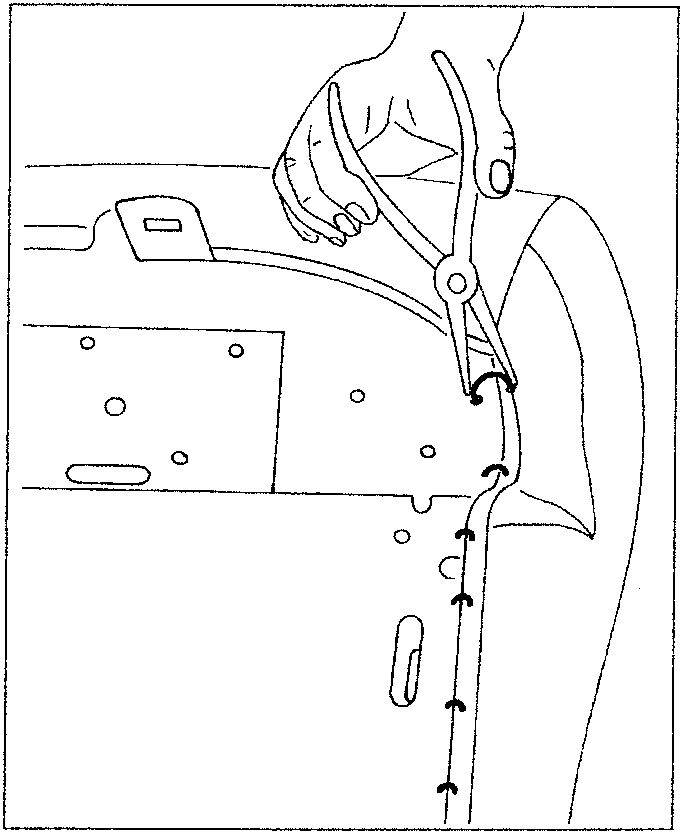

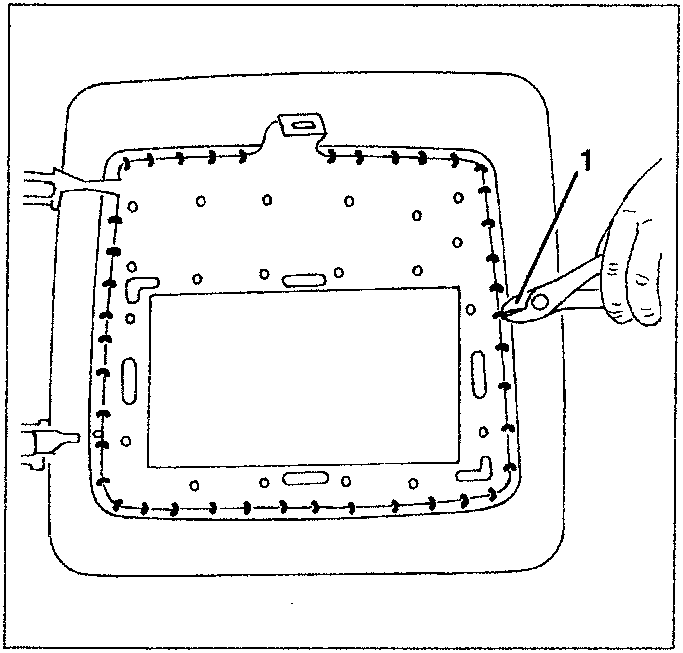

- Using a pair of pliers, remove the metal clips fastening the cover to the padding.
- Remove the cover.

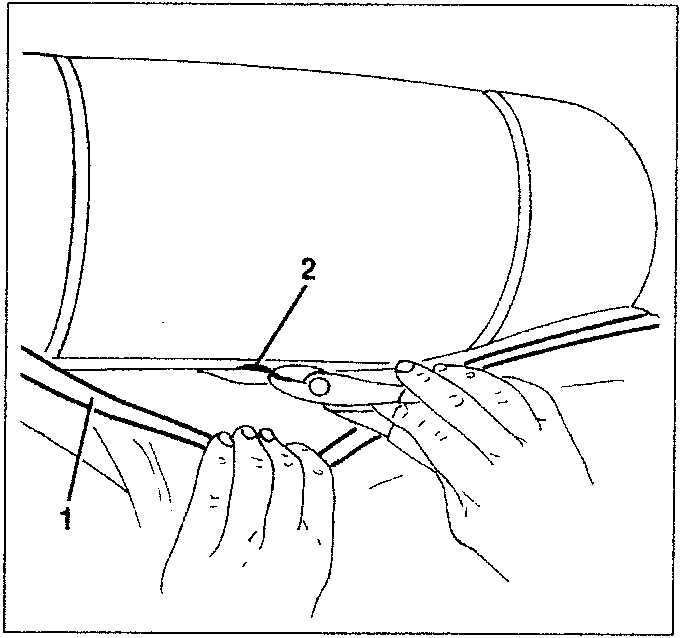

- Remove the metal clips tying the rods inserted in the cover to those embedded in the padding.
When refitting set the cover perfectly on the padding ensuring the correct shaping of the seat. Using the special pincers supplied from Spares, re-position the metal clips keeping the cover in place.
