CENTRE PILLAR TRIM REMOVAL / REFITTING

– Remove the side panel (see specific paragraph).

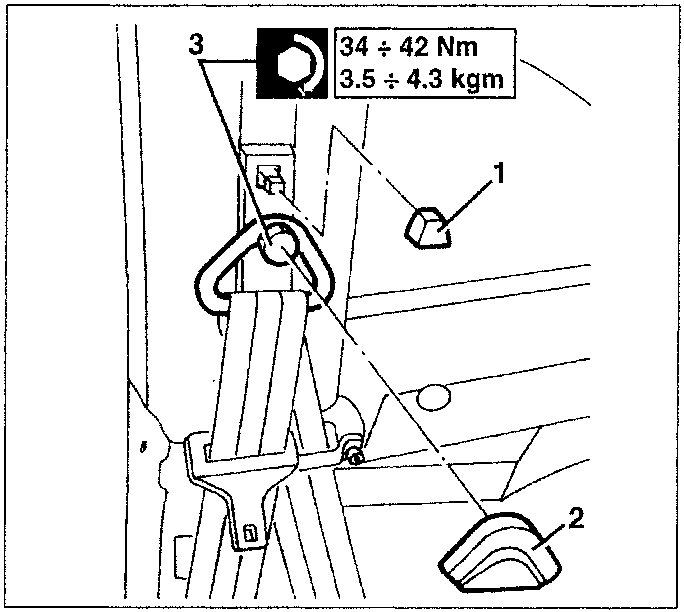

1. Remove the knob of the seat belt height adjustment lever.
2. Remove the cover of the upper seat belt loop.
3. Slacken the screw and disconnect the seat belt loop.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

1. Slacken the two lower screws fastening the seat belt lead.

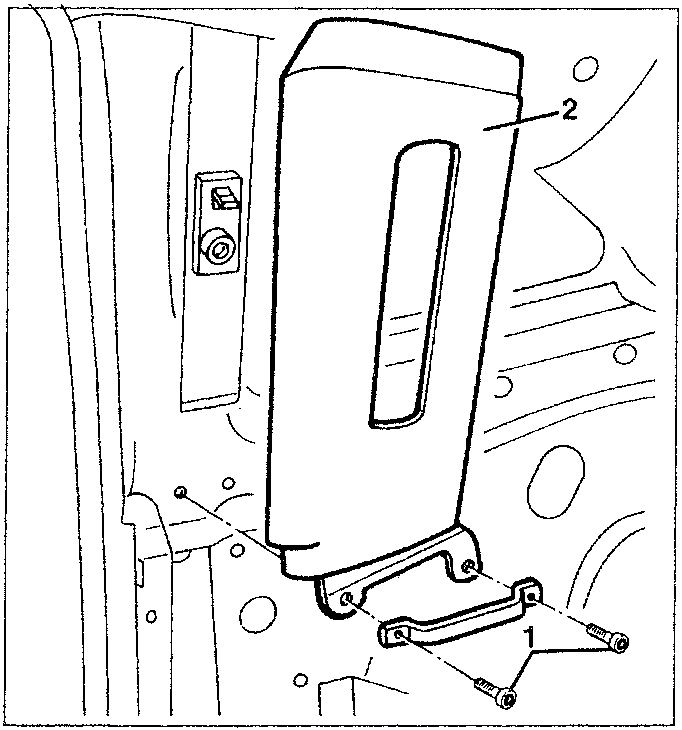

2. Prise the upper pillar trim and remove it.

Refit the pillar trim reversing the sequence followed for removal.

REAR PILLAR TRIM REMOVAL / REFITTING

– Remove the parcel shelf (see specific paragraph).

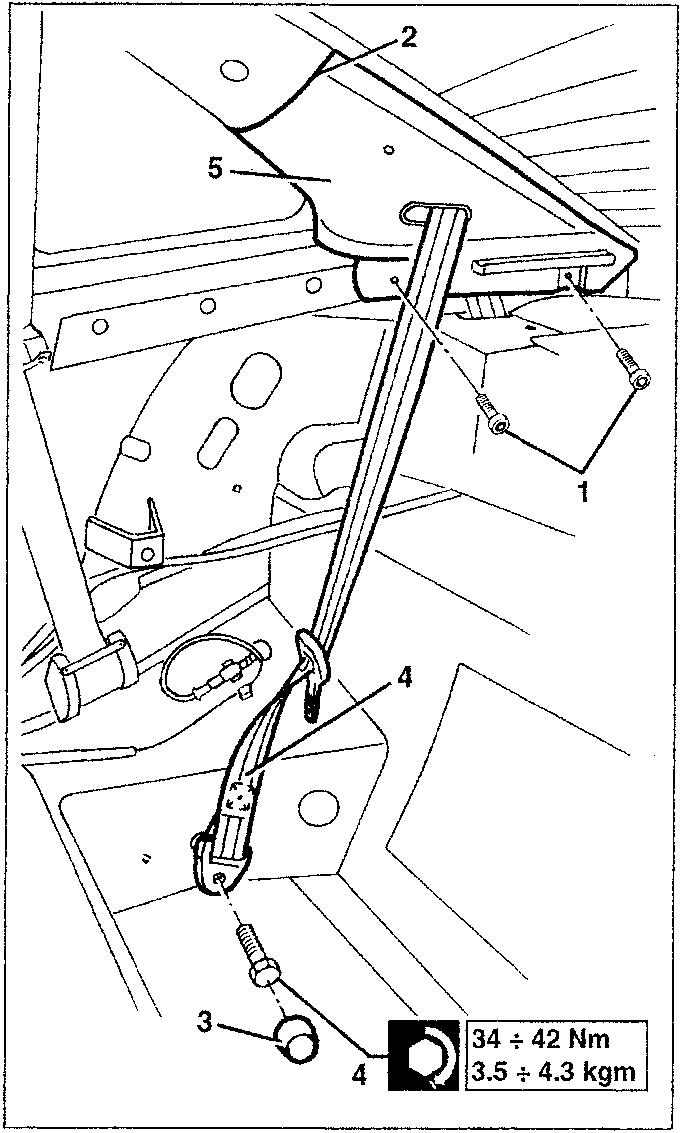

1. Slacken the two trim fastening screws.
2. Prise the upper trim and remove it.
3. Remove the lower rear seat belt fastening cap.
4. Slacken the screw and release the belt connector.
5. Remove the pillar trim.

Refit the pillar trim reversing the sequence followed for removal.
