Interior trim - GTV › Rear headrest
70 BodyworkRear headrest

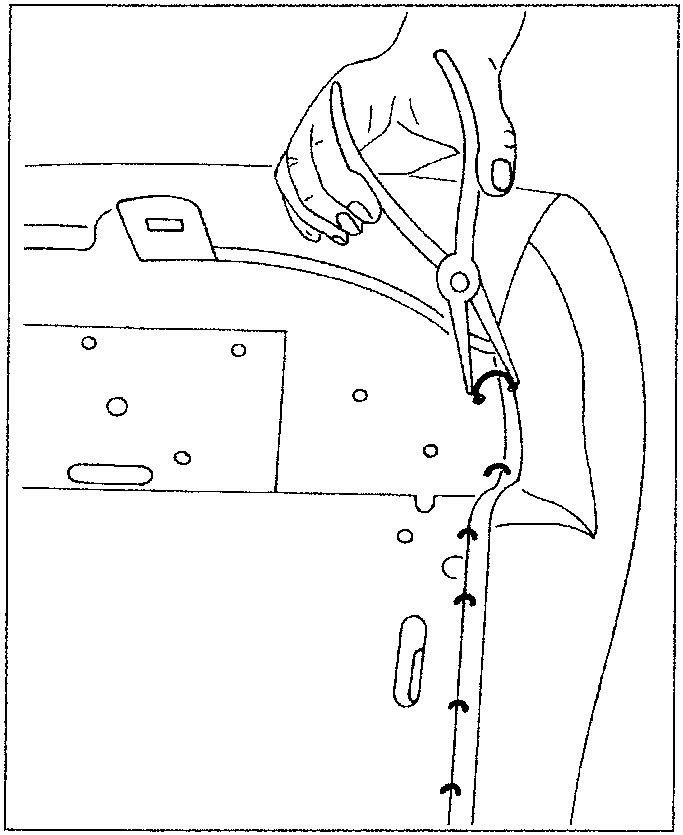

When refitting set the cover perfectly on the padding ensuring the correct shaping of the seat back. Using the special pincers supplied from Spares, re-position the metal clips keeping the cover in place.

Illustration showing a hand using pliers to adjust metal clips on a car seat back cover.

REAR HEADREST

REMOVAL / REFITTING

– Remove the boot interior trim (see specific paragraph).

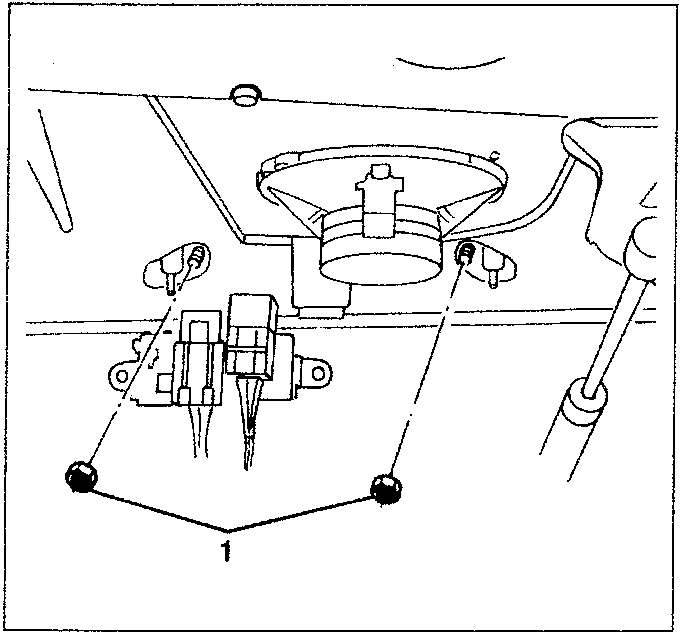

  1. Slacken the two nuts fastening the headrest rear.
Diagram showing the rear headrest assembly with nuts and rods, labeled '1' for the headrest.

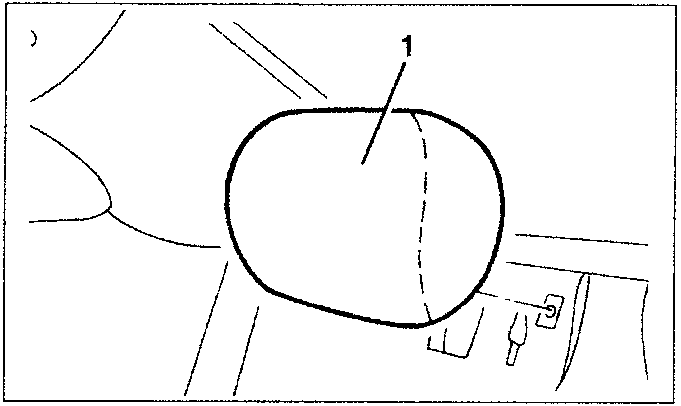

  1. Working from the passenger compartment, raise and remove the headrest.
Illustration of a headrest being removed from the car interior, labeled '1'.

Refit the headrest reversing the sequence followed for removal.

DIS-ASSEMBLY

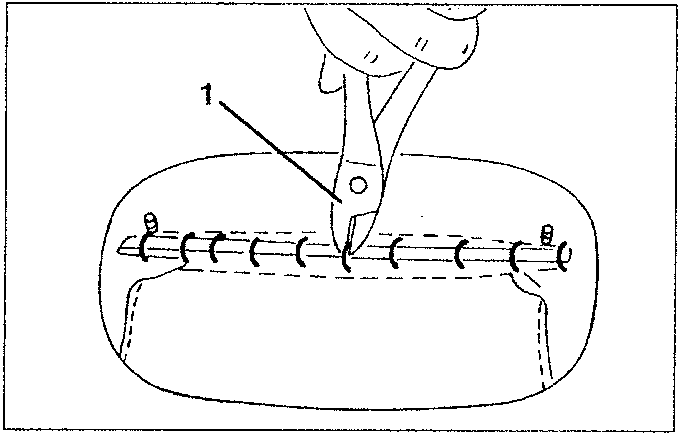

  1. Using a pair of pliers, remove the metal clips locking together the rods inserted in the cover.
Diagram showing pliers removing metal clips from a car seat cover.

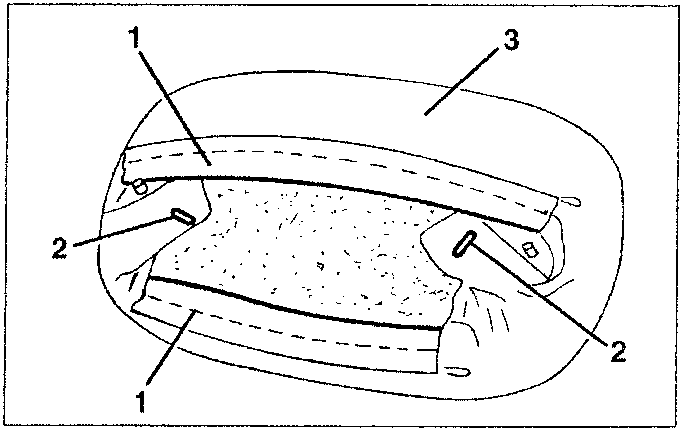

  1. Open the edges of the cover.
  2. Remove the metal clips fastening the inner edges of the cover to the padding.
  3. Remove the cover.
Diagram showing the internal components of a car seat cover, labeled '1' for the cover, '2' for the metal clips, and '3' for the padding.
