70 BodyworkSide panel

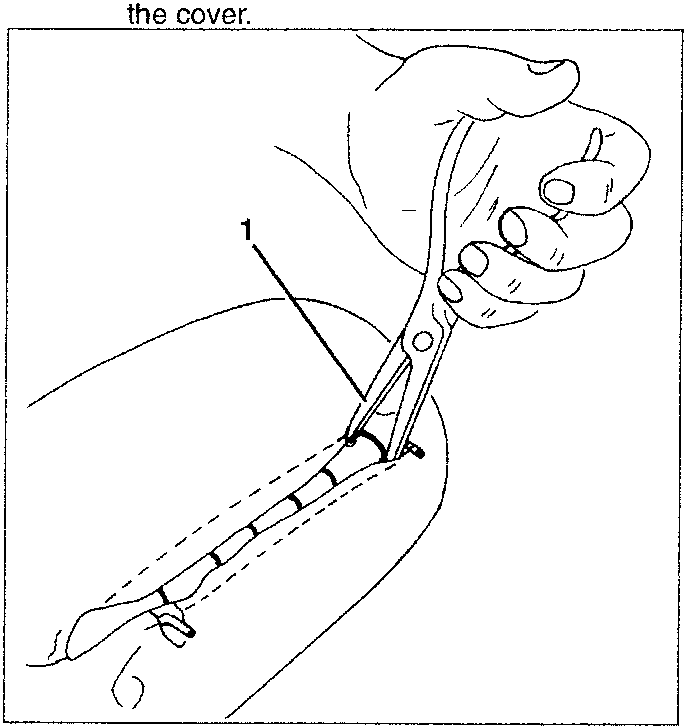

When refitting set the cover perfectly on the padding ensuring the correct shaping of the headrest. Using the special pincers supplied from Spares, re-position the metal clips holding the cover.

Hand using special pincers to reposition metal clips holding a cover on a car's headrest area.

SIDE PANEL

REMOVAL / REFITTING

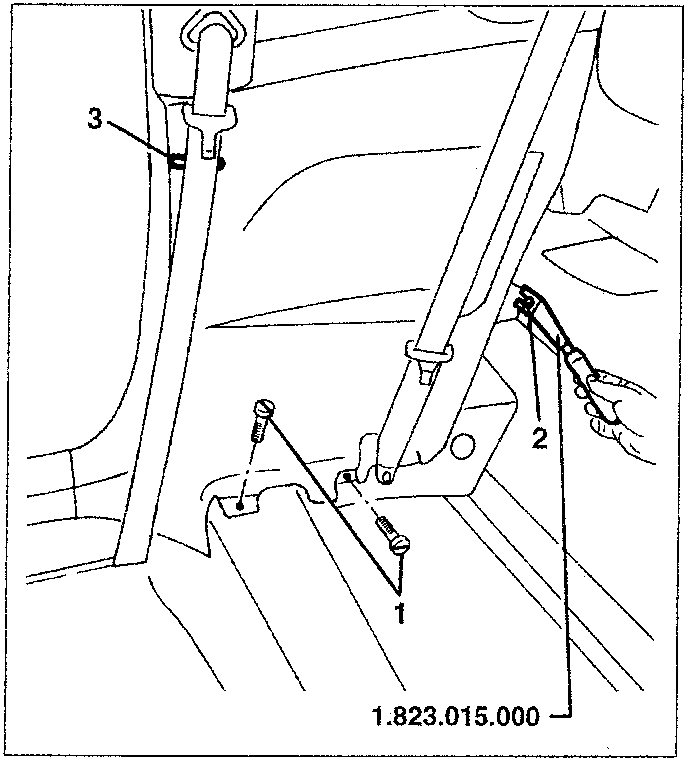

  • Remove the rear seats (excluding the headrests) (see specific paragraph).
  1. Slacken the two lower screws.
  2. Using tool 1.823.015.000 remove the plastic nail.
  3. Release the seat belt from the stopper.
Diagram showing the removal of a rear seat with tools and screws.

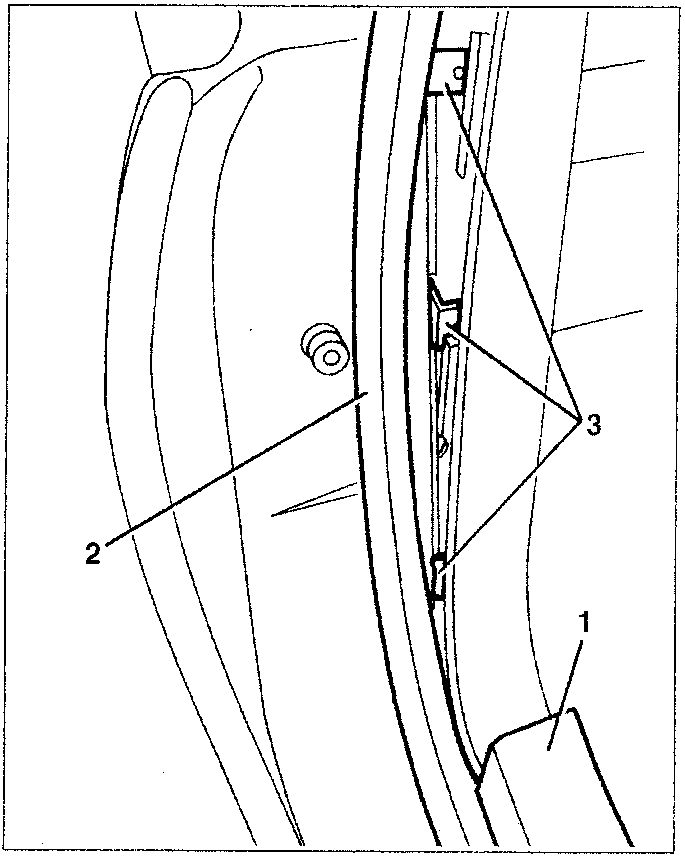

  1. Remove the heelboard rear.
  2. Remove the door sill board in the area involving the side panel.
  3. Release the three brackets fastening the front of the panel.
Diagram showing the release of three brackets fastening the front of a side panel.

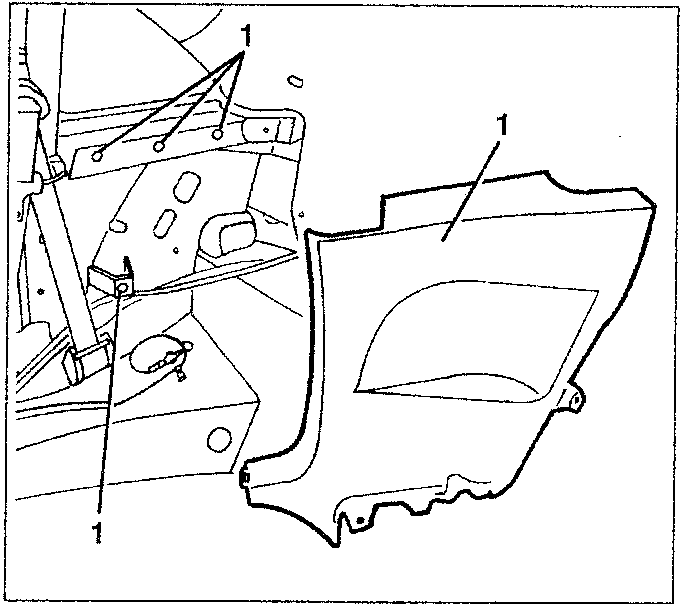

  1. Remove the side panel releasing the four plastic nails.
Diagram showing the removal of a side panel with plastic nails and clips.

Refit the side panel reversing the sequence followed for removal.
