SEAT BACK

Removal / Refitting

  • Remove the bench (see previous paragraph).

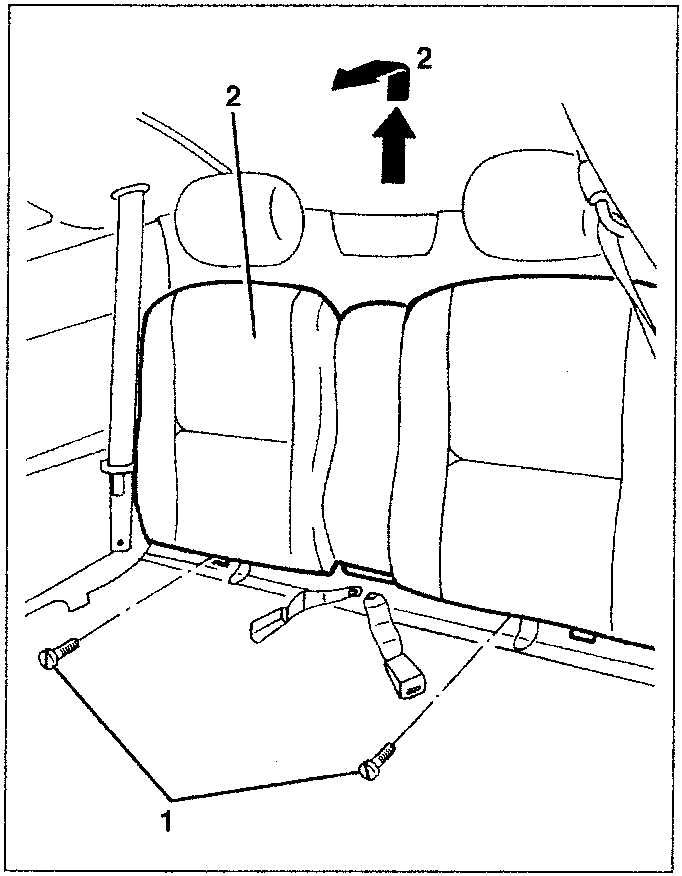

  1. Slacken the two lower screws.
  2. Raise the seat backs to free the hooks, then remove the seat back.
Diagram showing seat backs being raised to free hooks and removed

Refit the seat back reversing the sequence followed for removal.

Dis-assembly

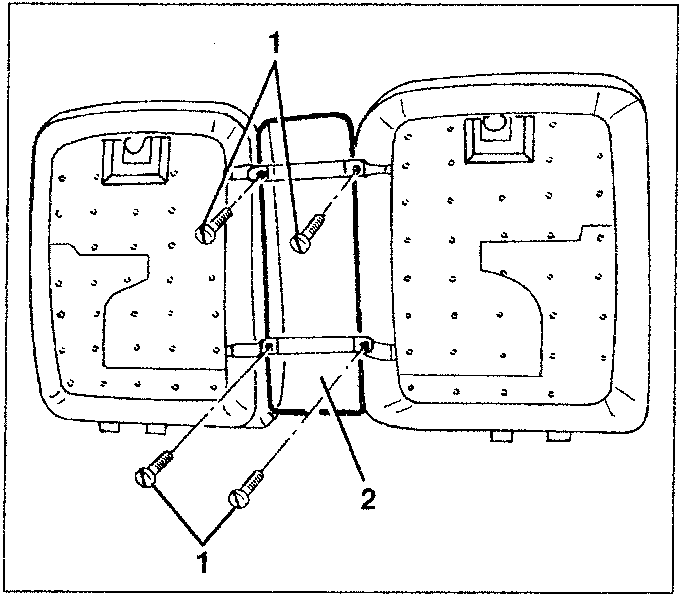

  1. Slacken the four screws.
  2. Remove the centre partition.
Diagram showing dis-assembly of seat back with screws and partition

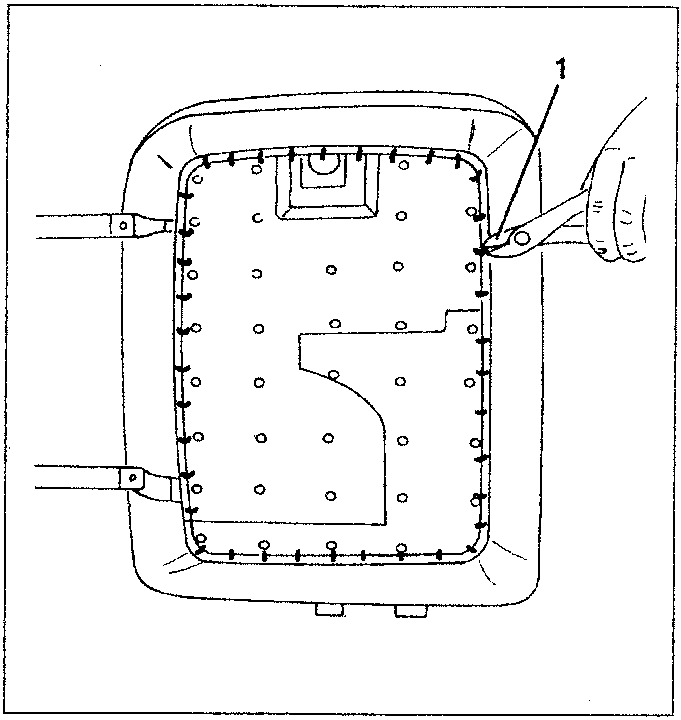

  1. Using a pair of pliers remove the metal clips fastening the cover to the padding.
Diagram showing removal of metal clips from cover to padding

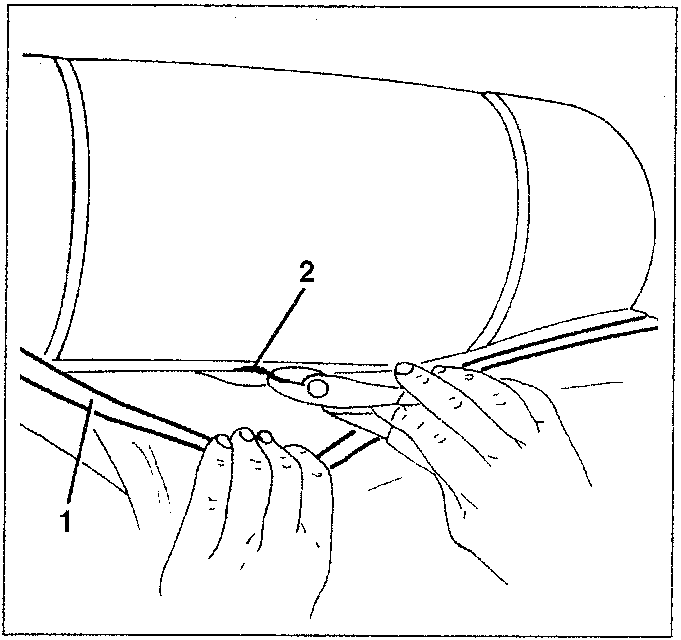

  1. Remove the cover.
  2. Remove the metal clips tying the rods inserted in the cover to those embedded in the padding.
  • Remove the cover
Diagram showing removal of metal clips from cover to padding
