Front bumper

FRONT BUMPER

REMOVAL/REFITTING

• Disconnect the battery.

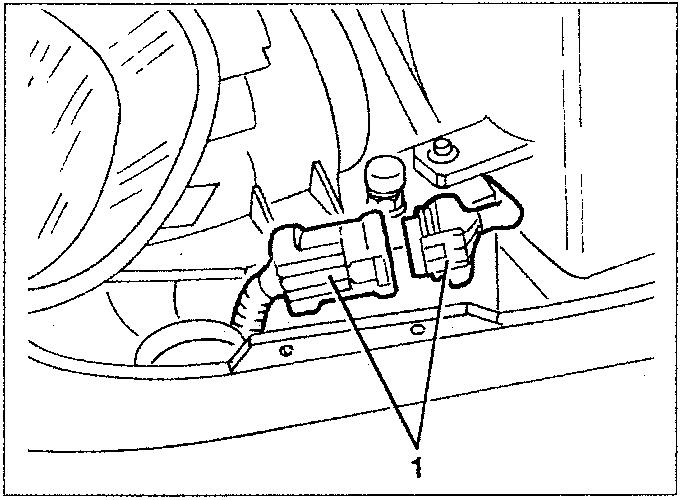

1. Open the bonnet and disconnect the bumper services electrical connection.

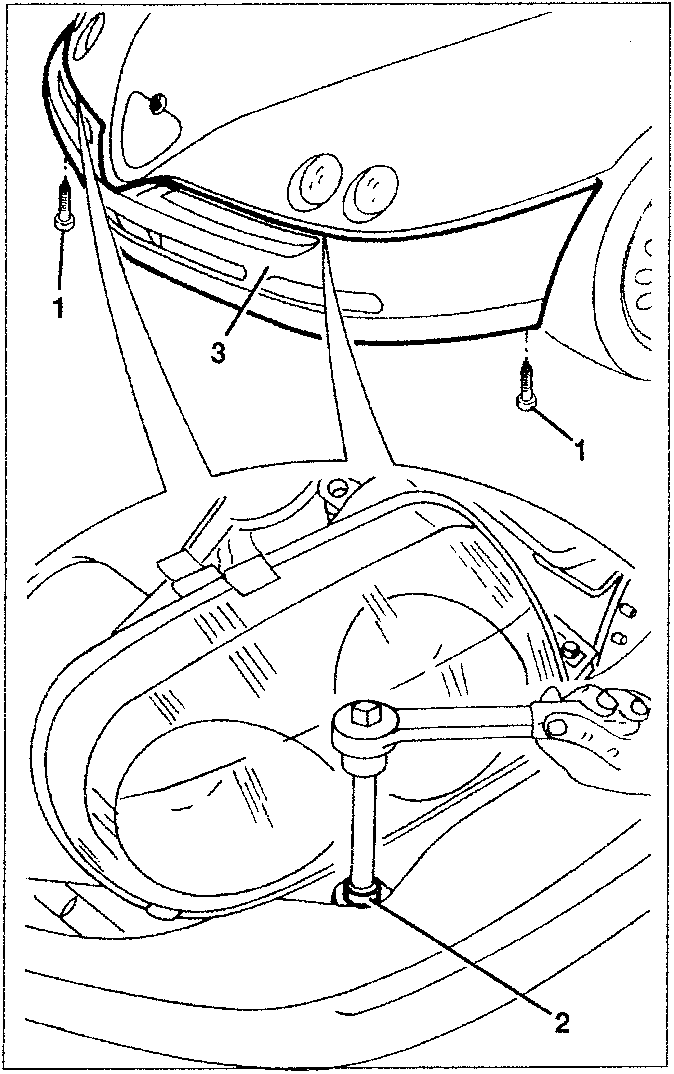

1. Slacken the two lower screws connecting the bumper to the gravel guard.
2. Slacken the two front bumper screws.
3. Remove the bumper.

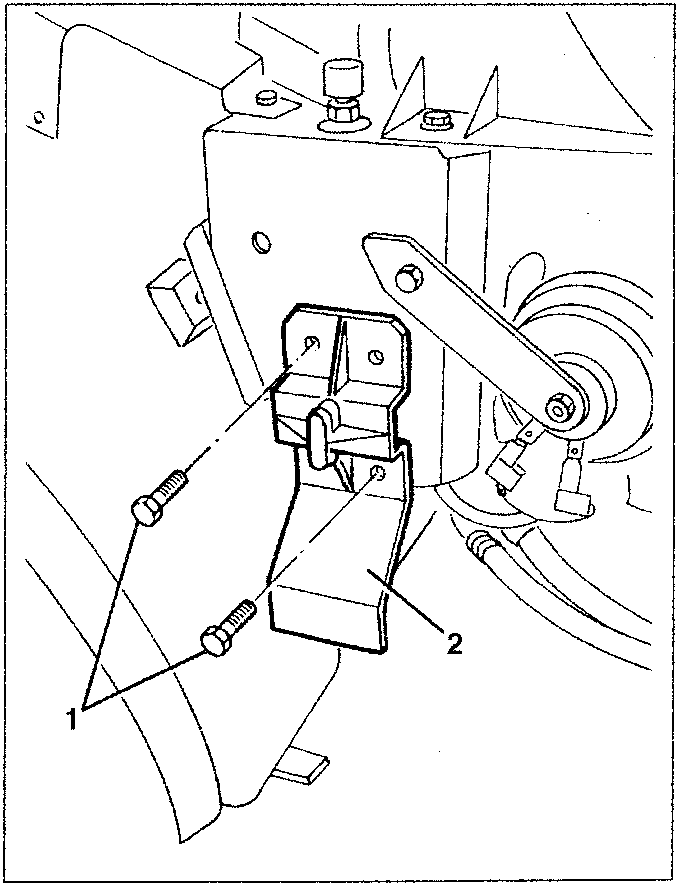

1. Slacken the two screws.
2. Remove the side bumper connection bracket.

When refitting proceed as follows.

FRONT BUMPER

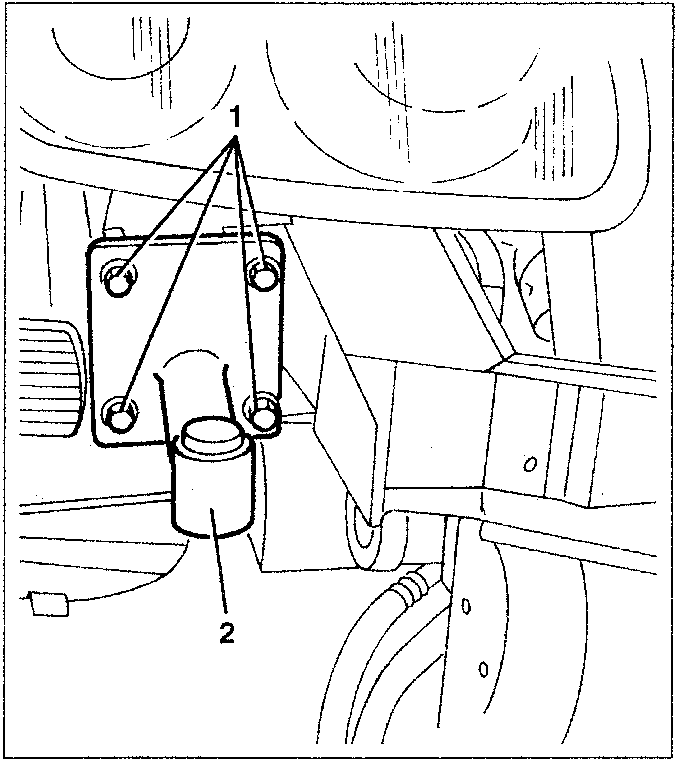

1. If necessary, slacken the four bumper connection bracket screws.
2. Remove the bumper connection bracket.
