Refitting

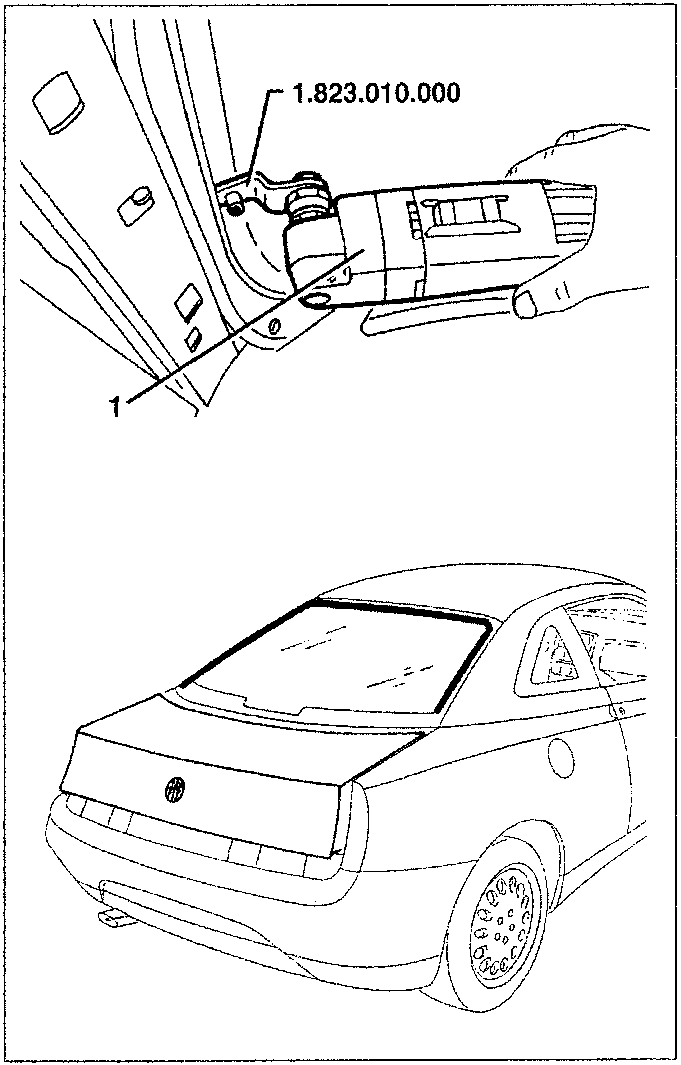

1. Working from the passenger compartment and using an electric cutter with blade 1.823.010.000, cut the sealant in the upper and side area of the rear-screen.

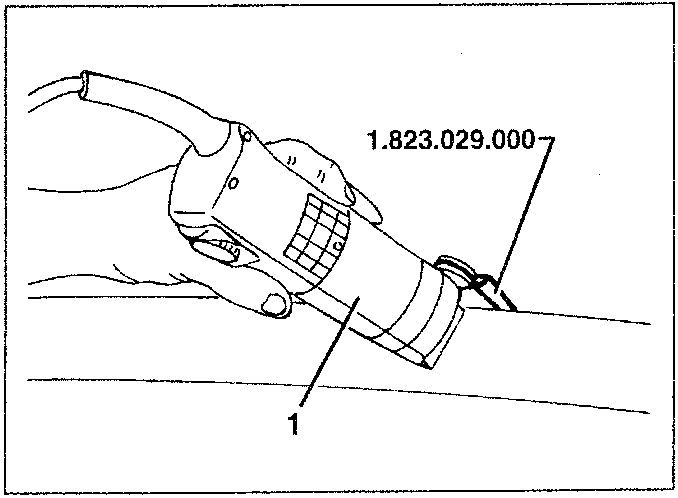

1. Still working from the passenger compartment and using an electric cutter with blade no. 1.823.029.000, cut the sealant in the remaining lower area of the rearscreen taking care damage the parts below.

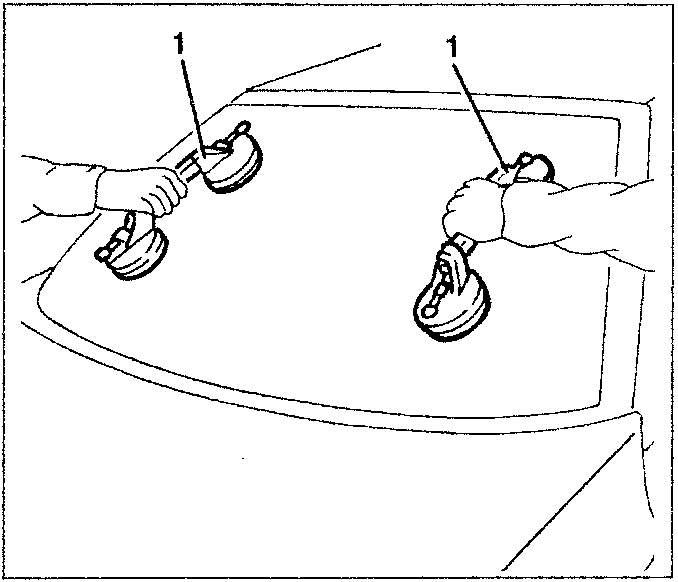

1. Using the special suction cups, remove the rear-screen.

REFITTING

• Remove any remaining sealant from the perimeter of the resting areas of the rearscreen. Degrease the surfaces.
• Position the new rearscreen rest feet.

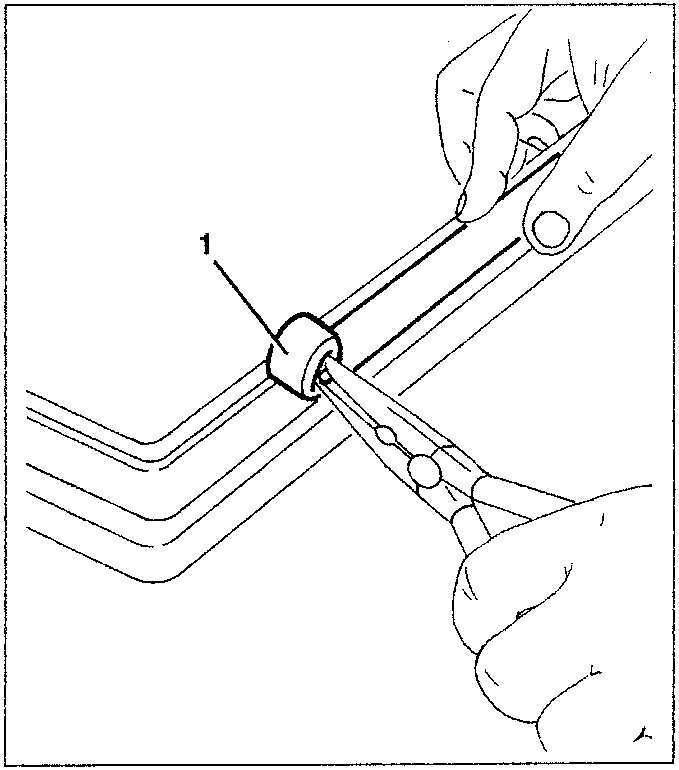

• If the rearscreen removed is to be re-used, remove the remaining sealant from the groove on the glass seal working as illustrated.
• Check the glass for scratches or chips.
