FRONT GRAVEL GUARD

REMOVAL/REFITTING

  • Remove the wheel concerned.
  1. Slacken the lower bumper connection screw.
  2. Slacken the underdoor strip front screw
  3. Using tool 1.823.015.000 remove the plastic nails
  4. Slacken the screws and remove the plastic parts forming the gravel guard.

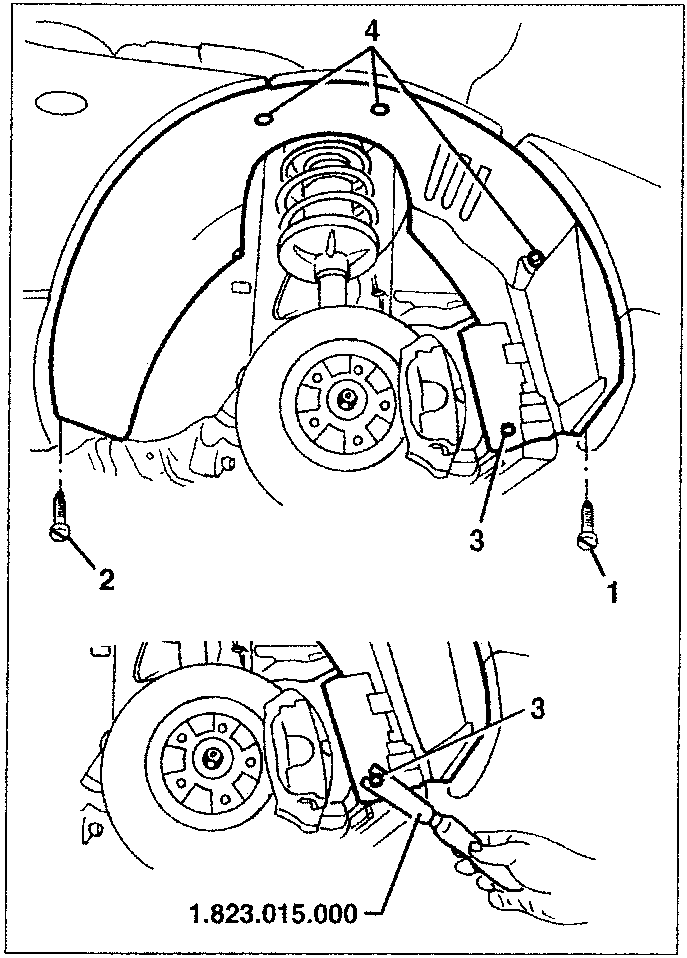

Front gravel guard removal diagram showing wheel, bumper connection screw, underdoor strip front screw, plastic nails, and tool 1.823.015.000 in use.

Refit the gravel guard reversing the sequence followed for removal.

REAR GRAVEL GUARDS

REMOVAL/REFITTING

  • Remove the wheel concerned.
  1. Slacken the fastening screws.
  2. Remove the complete gravel guard.

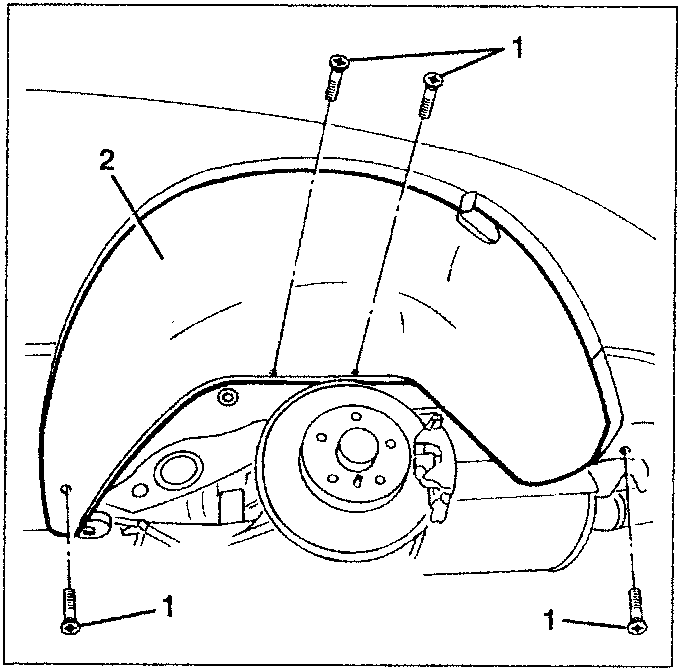

Rear gravel guard removal diagram showing wheel, fastening screws, and gravel guard.

UNDERDOOR STRIP

REMOVAL/REFITTING

  1. Open the door and slacken the four upper plastic screws.
  2. Using tool 1.823.015.000 remove the expansion plugs.

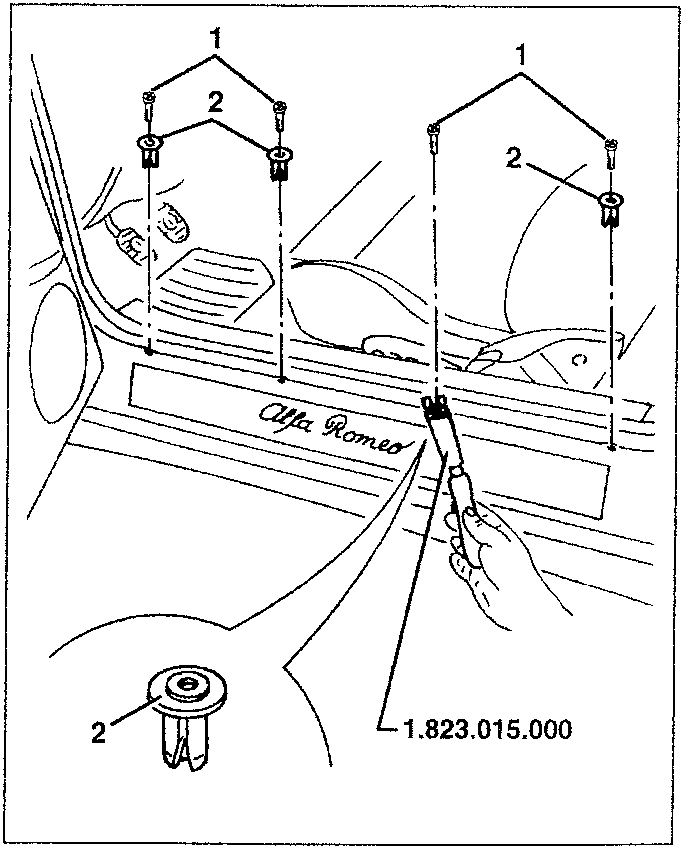

Underdoor strip removal diagram showing door, upper plastic screws, expansion plugs, and tool 1.823.015.000 in use.
