70 BodyworkRearscreen (gtv)
REARSCREEN (GTV)
DESCRIPTION
The rearscreen features a "co-moulded" seal integral with the glass. The seal has a clearly delineated area for the application of the sealant. When preparing the surface to be glued never use the primer contained in the glueing kit supplied with the spare. There are no other outer or inner seals.
To remove the rearscreen it is necessary to remove the trim components which prevent access to the glass and body contact area.
The correct positioning of the glass is aided by two adjustable feet fastened at the base of the rearscreen housing.

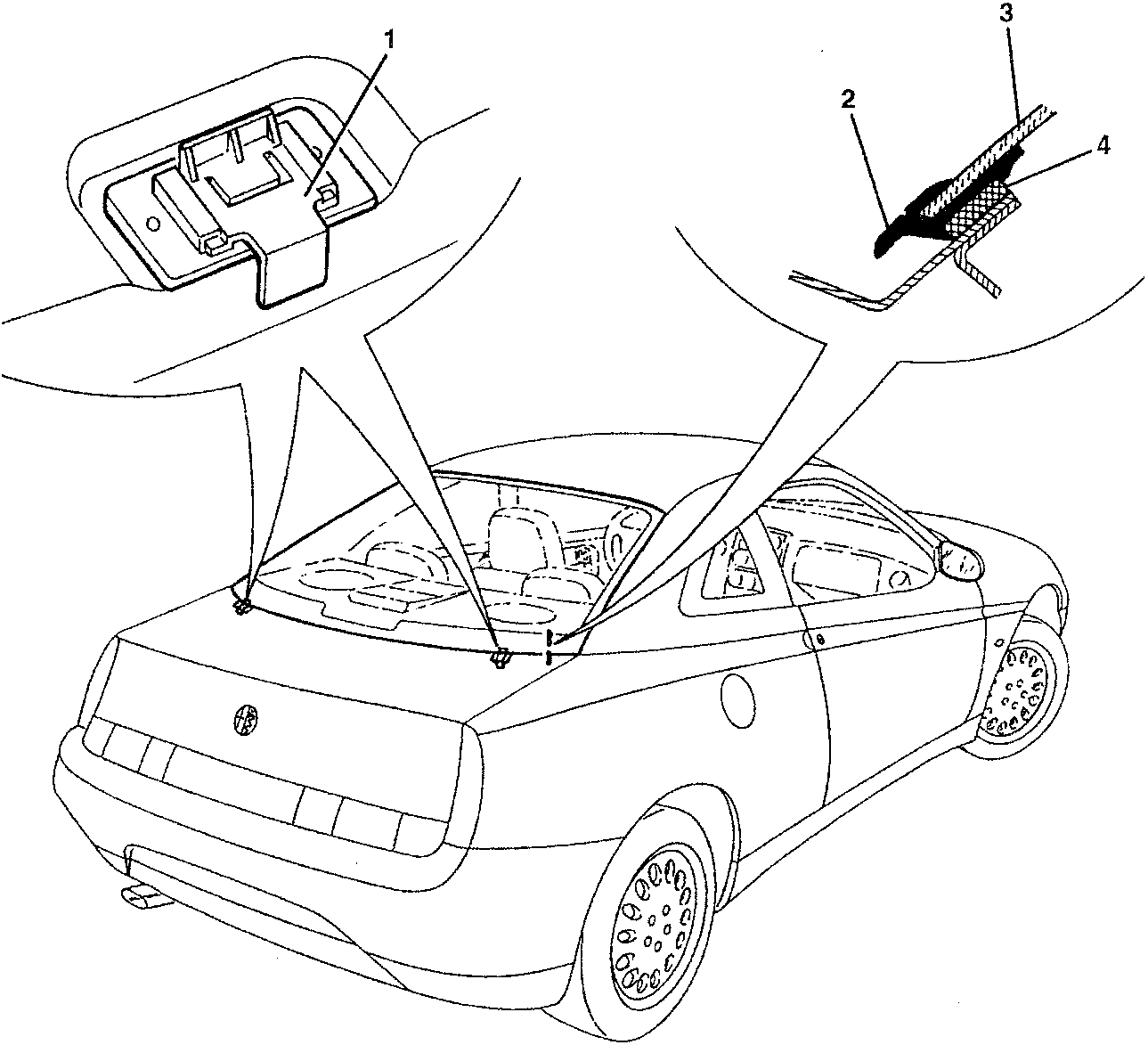

- Adjustable foot
- "Co-moulded" seal
- Glass
- Sealant
