Fuel flap

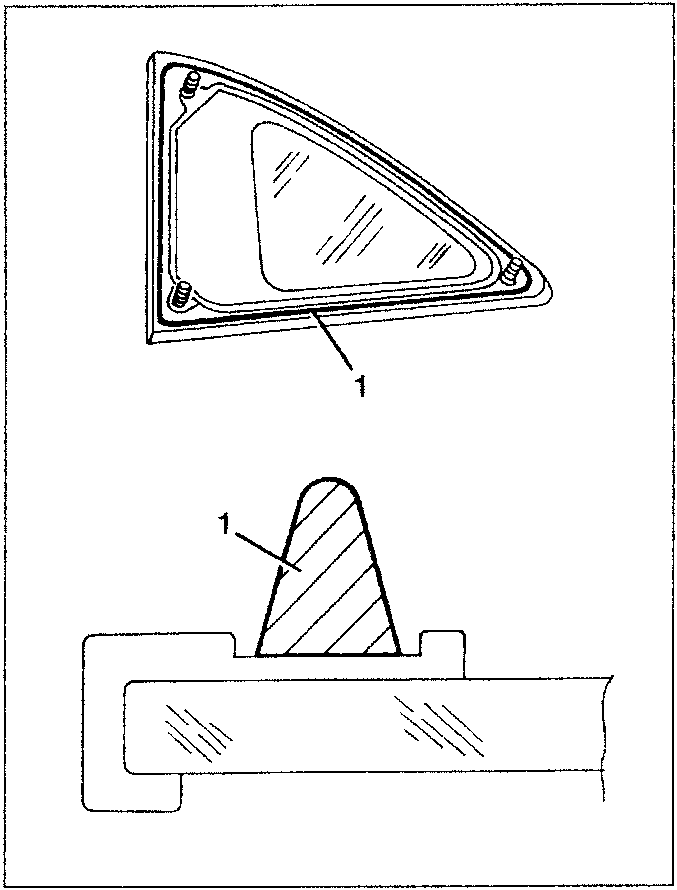

1. Apply the sealant along the containment groove on the seal, using the nozzle provided, from which the guide should be removed. Keep the seam continuous and even.

• Fit the glass inserting the pins in the holes and centering the glass in the housing.
• Exert a light even pressure along the edge of the glass.

Complete refitting reversing the sequence followed for removal.

NOTE: Do not use the car until the sealant has dried completely.

FUEL FLAP

REMOVAL/REFITTING

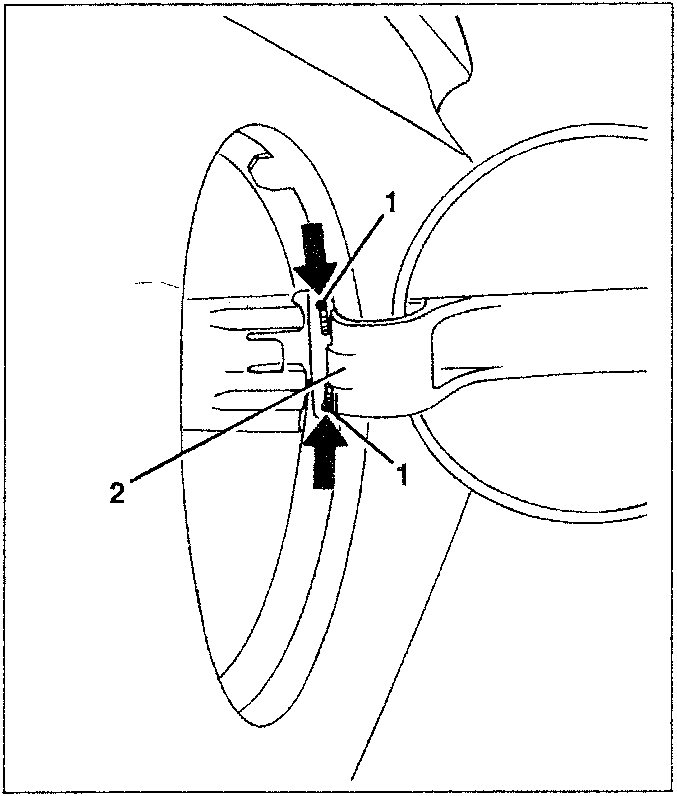

1. Open the flap and press the two pins.
2. Release and remove the flap.

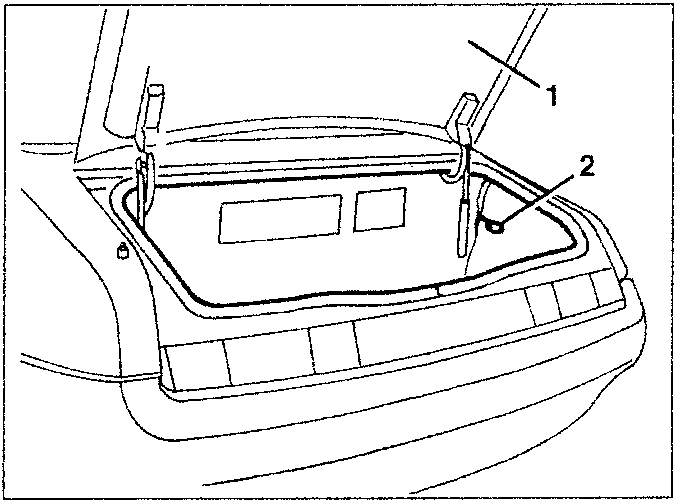

EMERGENCY OPENING

1. Open the boot lid.
2. Locate and pull the safety cable with eyelet until the flap opens.
