Refitting

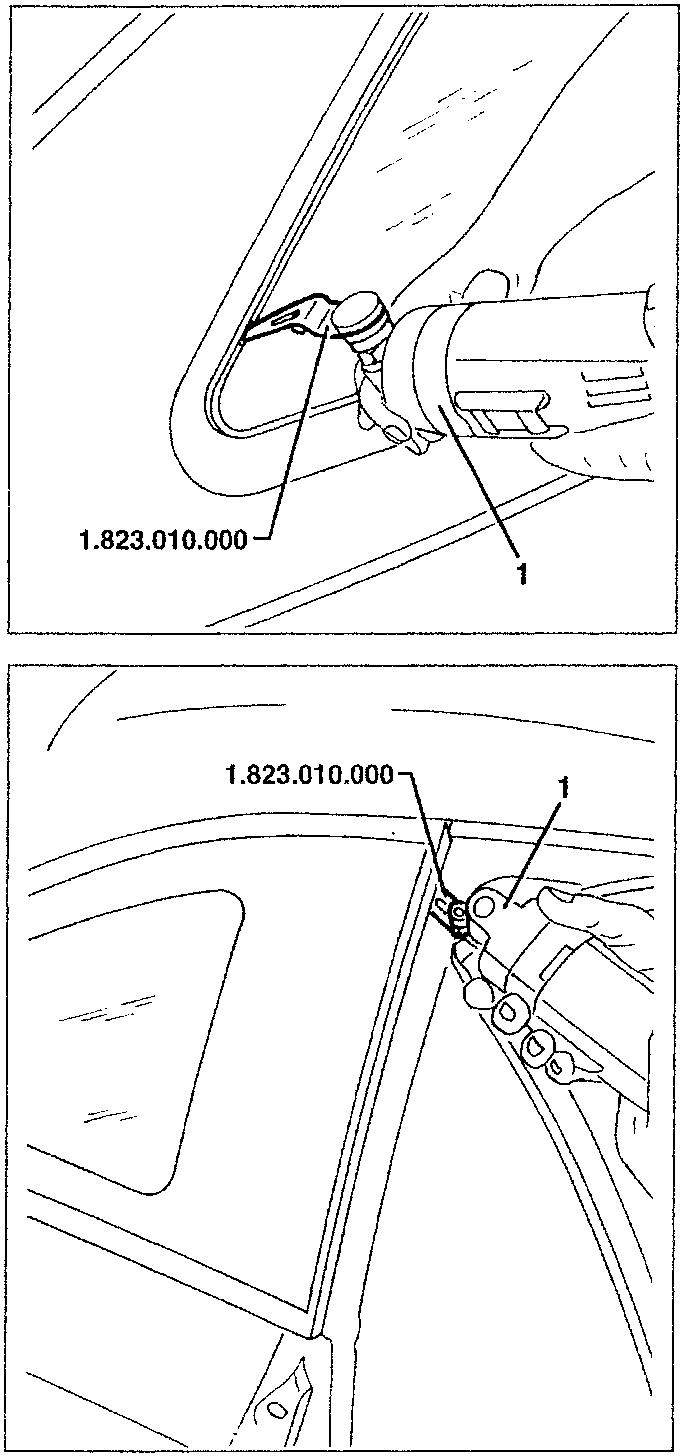

1. With the blade at right angles to the glass cut the seal to reach the bare edge of the glass.
2. Cut the sealant of the vertical side, still using blade 1.823.010.000

1. 1.823.010.000
2. 1.823.010.000

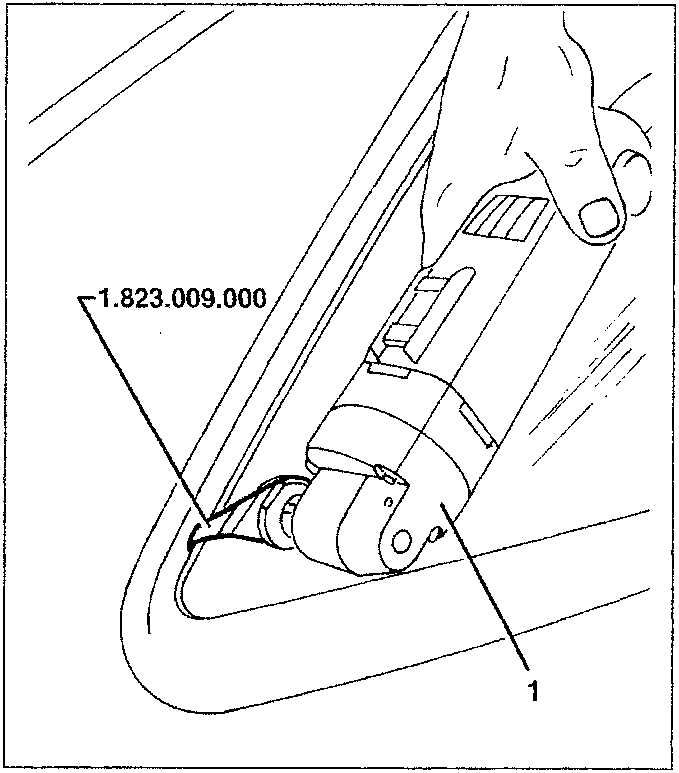

1. Still working from outside and using the electric cutter with blade 1.823.009.000 cut the sealant in the remaining contact areas.
2. Remove the glass withdrawing the three centering pins.

1. 1.823.009.000

REFITTING

• Remove any remaining sealant from the perimeter of the resting areas of the glass. Degrease the surfaces.
• Position three new centering pins on the new glass.

Proceed with the glueing cycle using the special Spares KIT, checking the "use by" date.

Accurately clean the edge of the glass with the special cloth moistened with de-greasing agent.

WARNING: Before assembly, with the glass cleaned, make sure there are no chips or damage on the glass and on the seal. Make sure there are no distortions on the glass resting surface.

WARNING: For glasses with "co-molded" seal the primer contained in the kit supplied from Spares is not to be used.
