Fixed side window (gtv)

FIXED SIDE WINDOW (GTV)

DESCRIPTION

Also the fixed side window features a "co-moulded" seal integral with the glass (like the rearscreen).

For correct positioning during assembly, the glass is fitted with three plastic nails positioned on the corners and hidden from outside view by the special serigraph.

To remove the glass use an electric cutter with suitable blades.

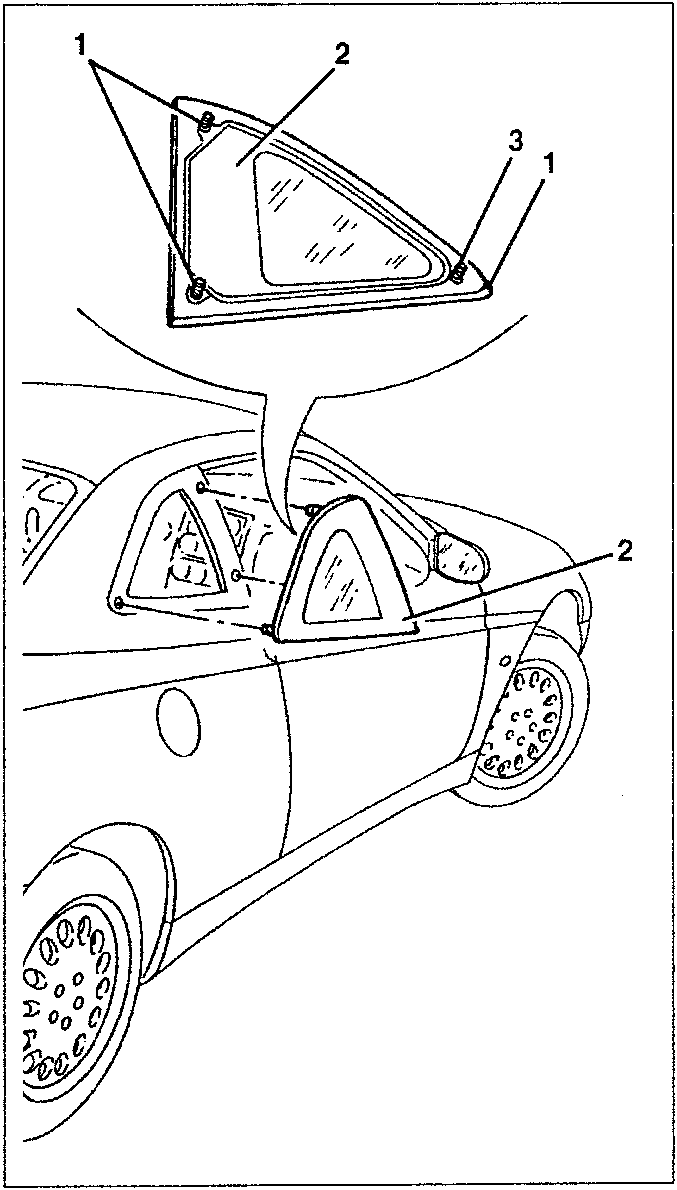

1. Positioning nail
2. Glass
3. Seal

WARNING: The procedure described for changing the glass concerns the assembly of a new glass without the possibility of re-using the one removed.

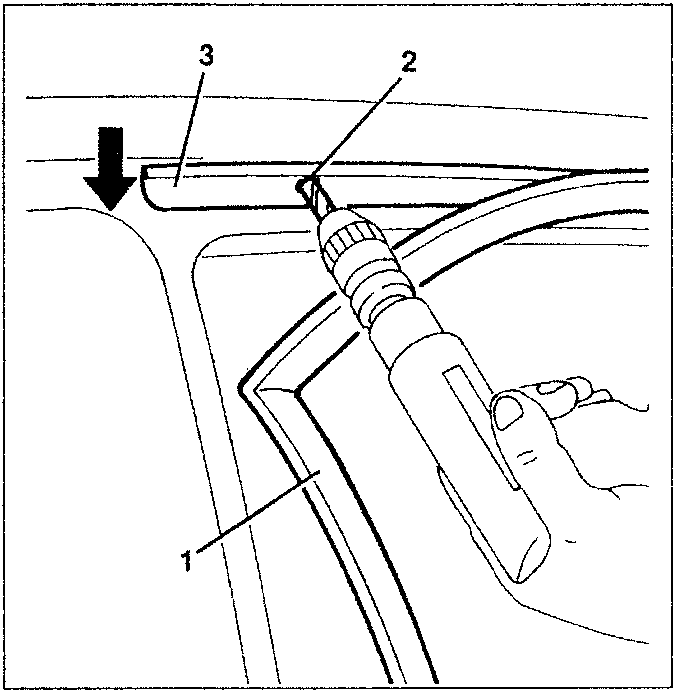

1. Remove the door seal in the area of the glass.
2. Remove the rear rivet fastening the groove.
3. Lower the groove to gain access to the whole profile of the glass.

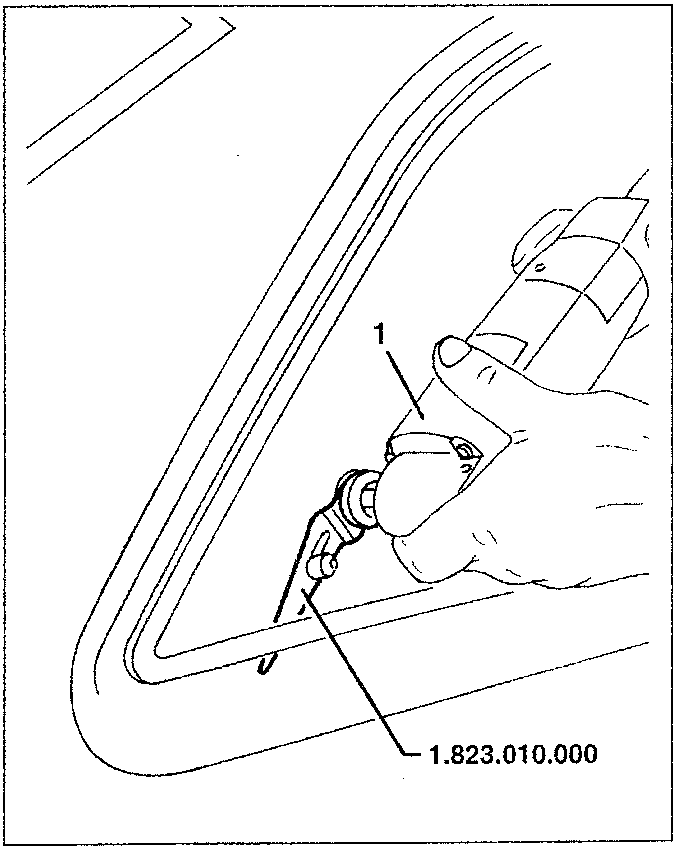

1. Working from outside and using an electric cutter with blade 1.823.010.000 remove the outer profile of the seal, as illustrated.
