70 BodyworkDis-assembly
  1. Position the front bumper without inserting the front screws.
  2. Check the alignment between the bumper and bonnet.

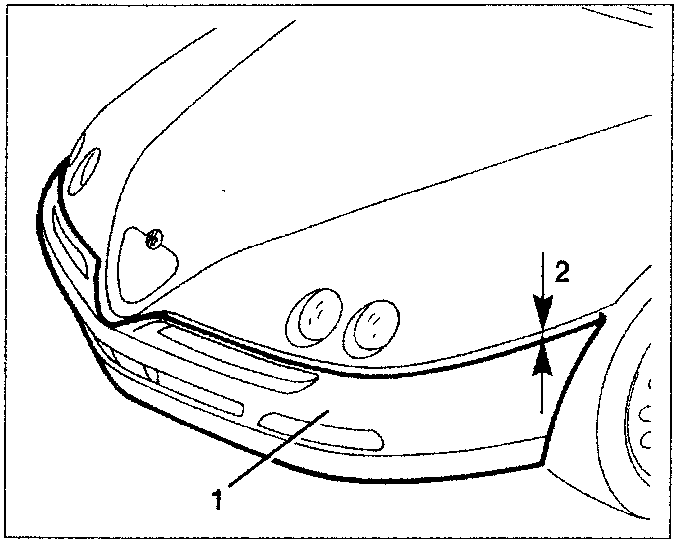

Front bumper alignment check showing bumper 1 and alignment measurement 2
  1. If necessary, adjust the height of the bumper using an Allen wrench and tightening or loosening the bushes in the bumper connection brackets.
Close-up of Allen wrench adjusting a bush in bumper connection bracket

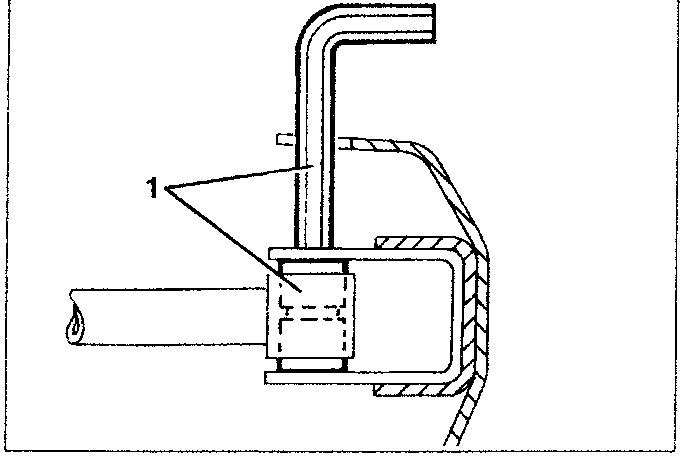

Detail of Allen wrench engaging a bolt in bumper connection bracket

DIS-ASSEMBLY

Remove the rivets and fasteners and dis-assemble the bumper components.

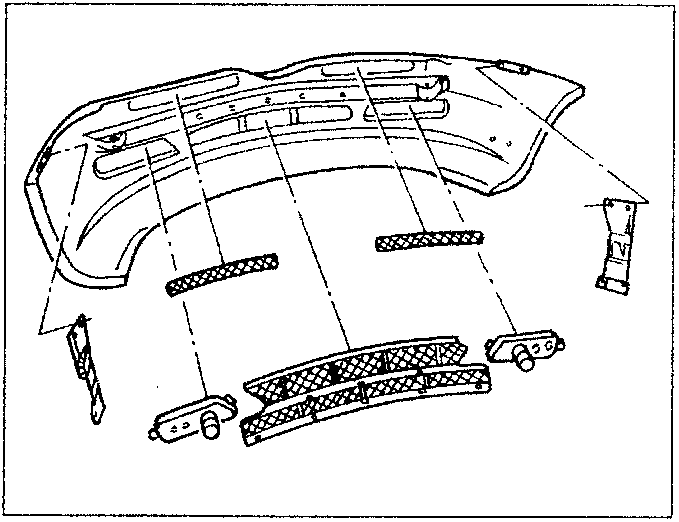

Disassembled front bumper components with rivets and fasteners

REAR BUMPER

REMOVAL/REFITTING

  • Disconnect the battery.
  • Remove the tail light strip (see specific paragraph).
  1. Remove the number plate lights from their housings.
  2. Disconnect the electrical connections and remove the number plate lights.

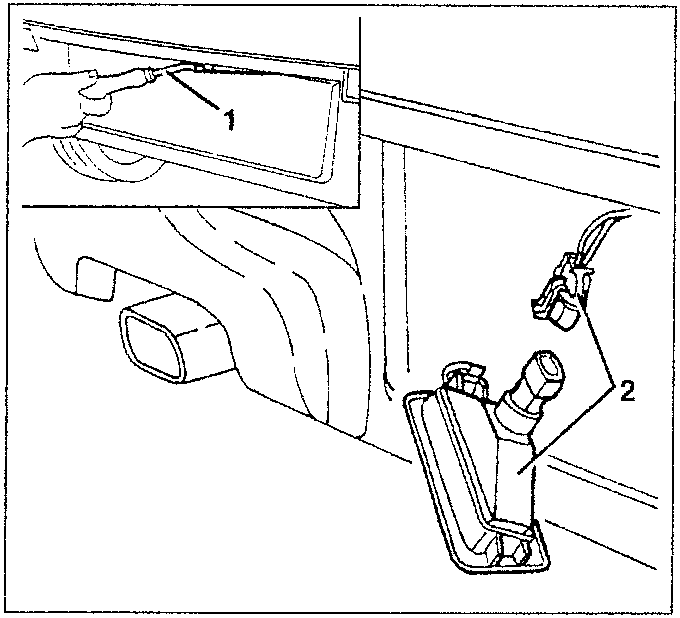

Rear bumper with number plate lights 1 and electrical connection 2
