Air intake grille

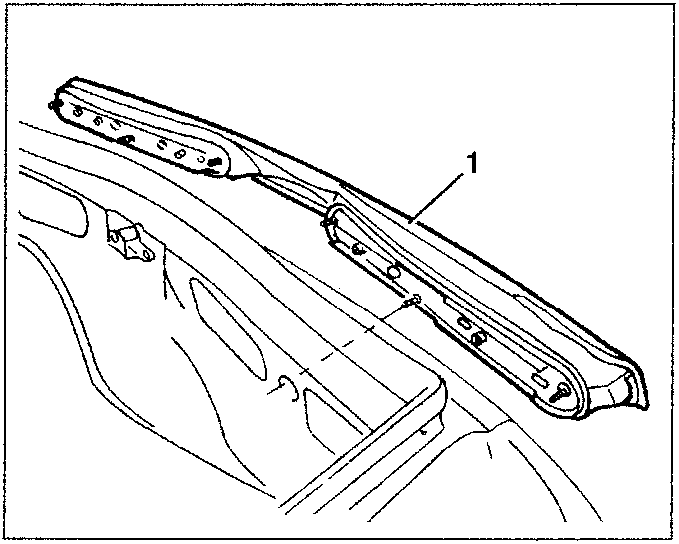

1. Remove the tail light strip from the outside.

Refit the tail light strip reversing the sequence followed for removal.

AIR INTAKE GRILLE

REMOVAL/REFITTING

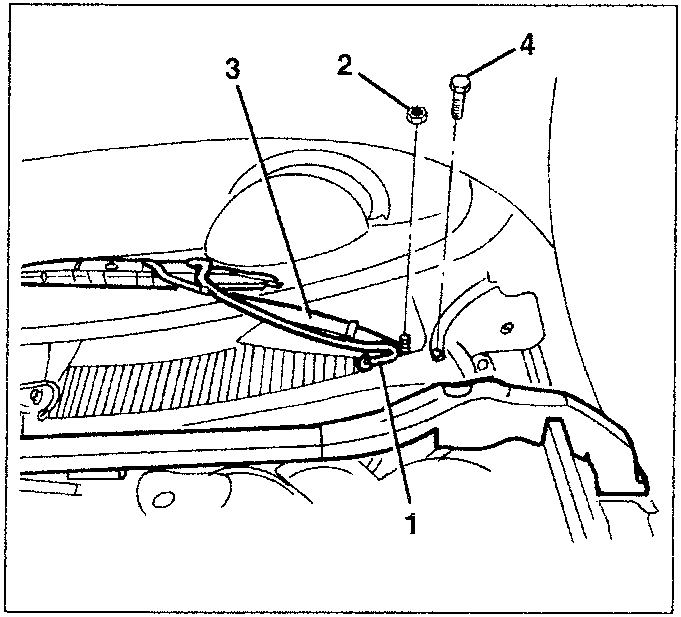

1. Open the bonnet and disconnect the windscreen wiper tubes.
2. Slacken the nuts fastening the windscreen wiper arms.
3. Remove the windscreen wiper arms.
4. Slacken the seven screws fastening the air intake grille

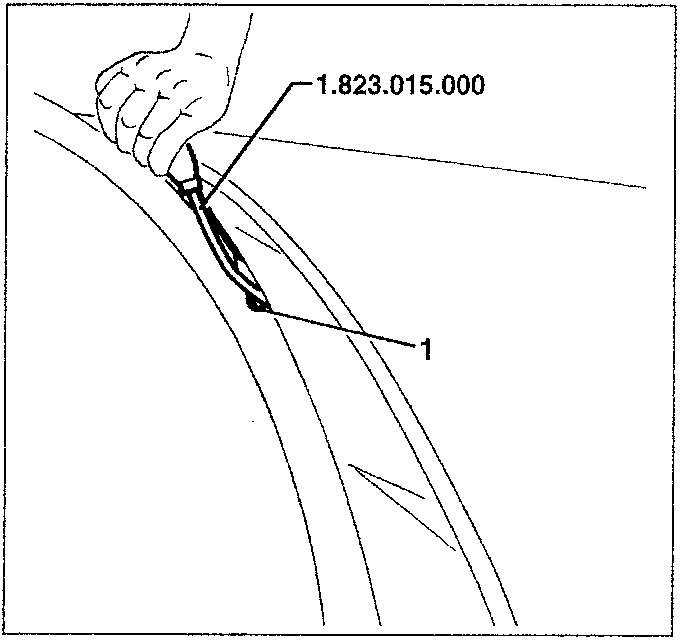

1. Lower the bonnet and using tool 1.823.015.000 release the fastening pins.

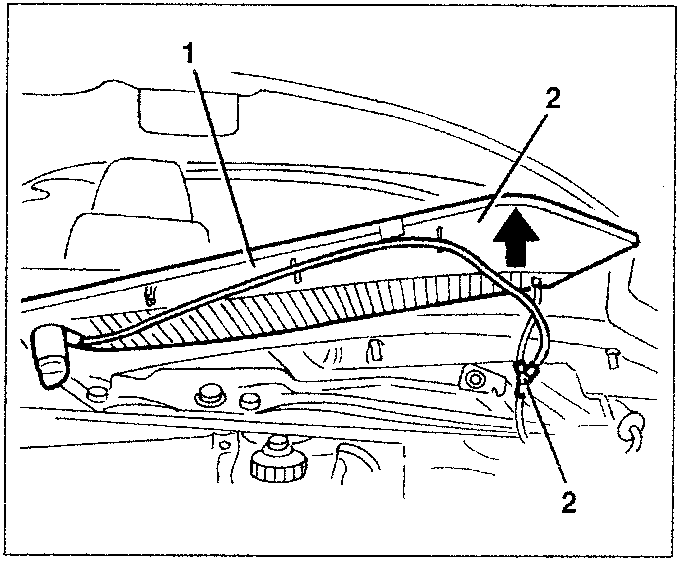

1. Open the bonnet and raise the two parts of the grille.
2. Disconnect the three-way union and remove the grille.

Refit reversing the sequence followed for removal.
