70 BodyworkRefitting · page 1 of 2

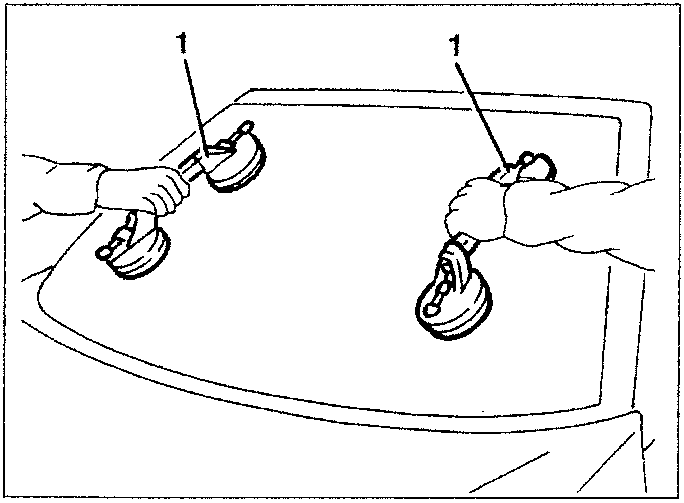

  1. Using the special suction cups, remove the windscreen.
Two hands using suction cups to lift a windshield from its frame

REFITTING

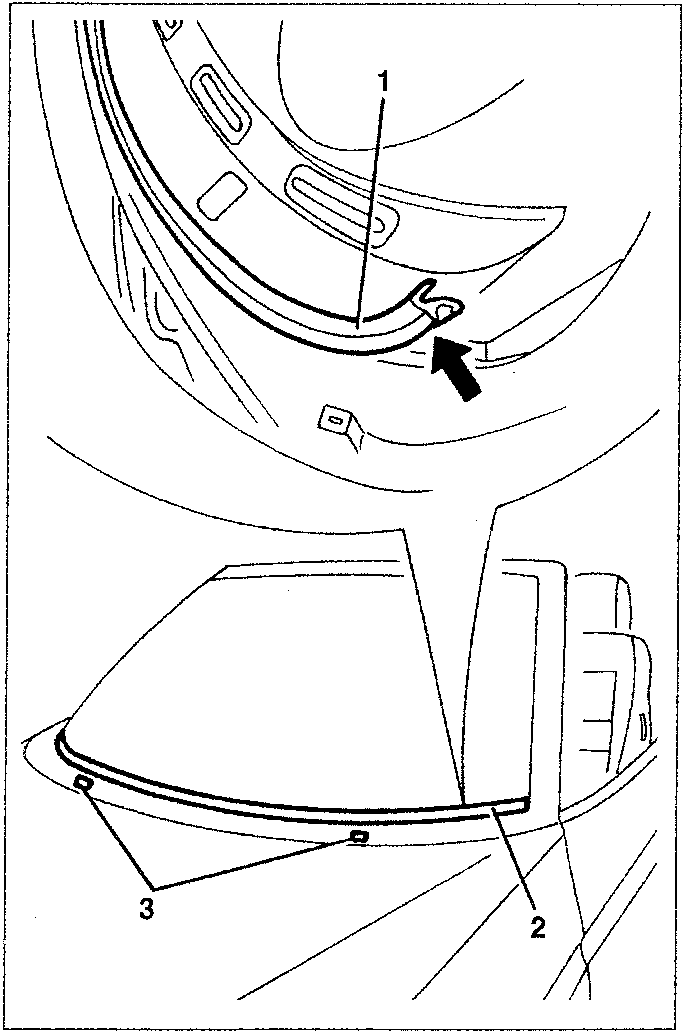

  1. Remove the lower windscreens seal.
    • Remove any remaining sealant from the perimeter of the windscreen resting areas. Degrease the surfaces.
  2. Position the new lower windscreen seal.
  3. Position the new windscreen rest feet.
Diagram showing removal and positioning of lower windshield seal and rest feet

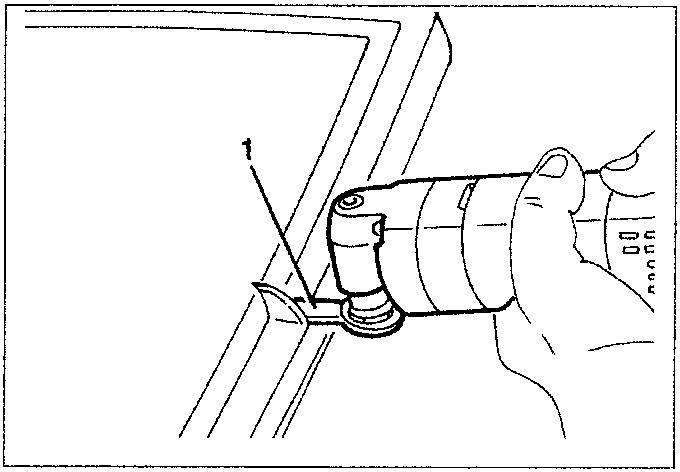

  1. If the removed windscreen is to be re-used, remove the profile and remaining sealant from the edge of the windscreen.
Hand using a tool to scrape off material from the edge of a windshield
  • Make sure there are no peripheral scratches or chips on the glass profile.

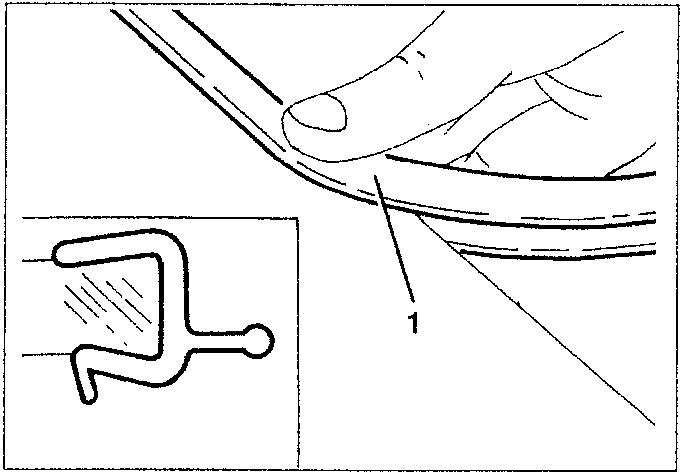

  1. Fit the new profile on the windscreen.
Hand pressing down a new profile onto the windshield edge

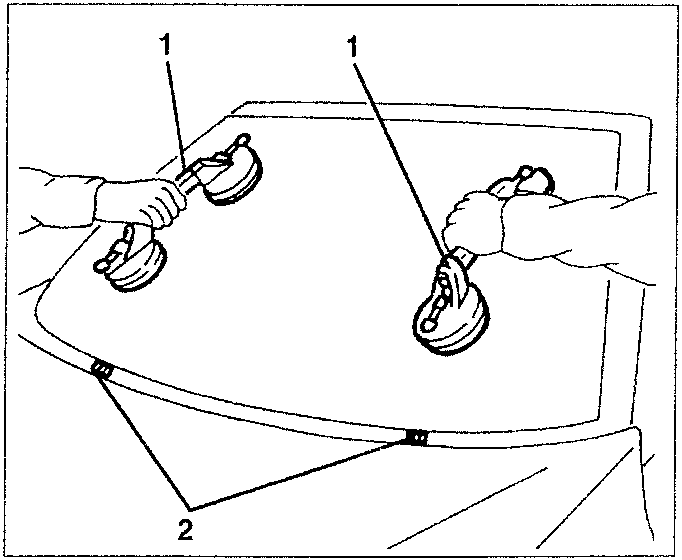

  1. Position the suction cups on the windscreen and place the glass in its housing. 2. Adjust the position of the slides on the rest feet.
Two hands using suction cups to lower a windshield into its frame
