70 BodyworkWindscreen description · page 2 of 2

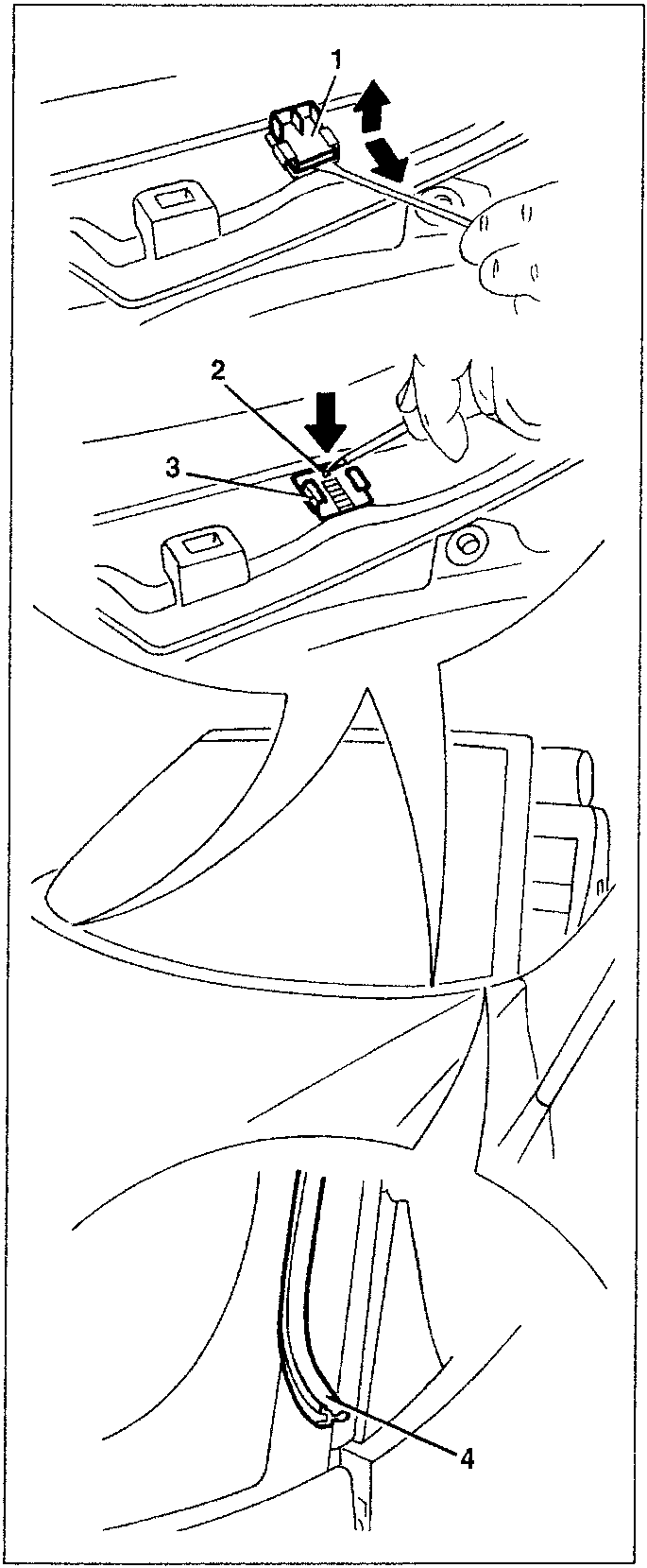

  1. Remove the slide from the windscreen rest feet.
  2. Press the stop pin.
  3. Remove the rest feet.
  4. Remove the glass moulding, if possible.
Illustration showing steps to remove windscreen rest feet and glass moulding.
  1. Slide
  2. Stop pin
  3. Rest feet
  4. Glass moulding

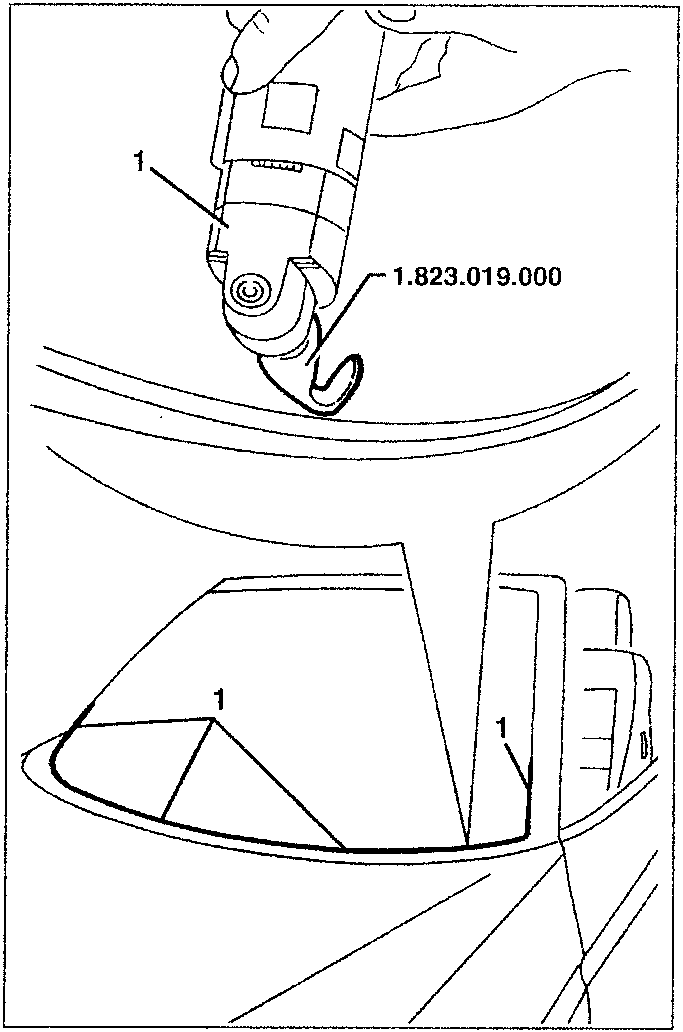

  5. Working from outside and using an electric cutter with blade no. 1.823.019.000, cut the sealant in the lower area of the windscreen.
Illustration showing electric cutter cutting sealant on lower windscreen area.

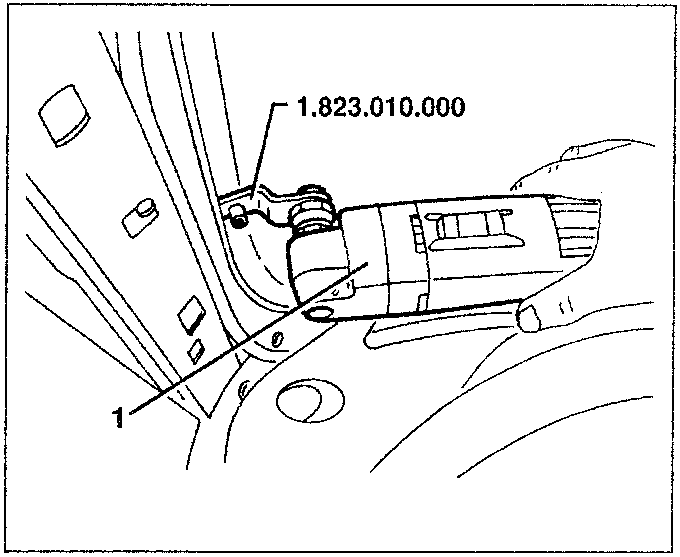

  1. Working from the passenger compartment and using an electric cutter with blade no. 1.823.010.000, cut the sealant on the upper and side edges.
Illustration showing electric cutter cutting sealant on upper and side edges of windscreen.
