70 BodyworkRemoval

REMOVAL

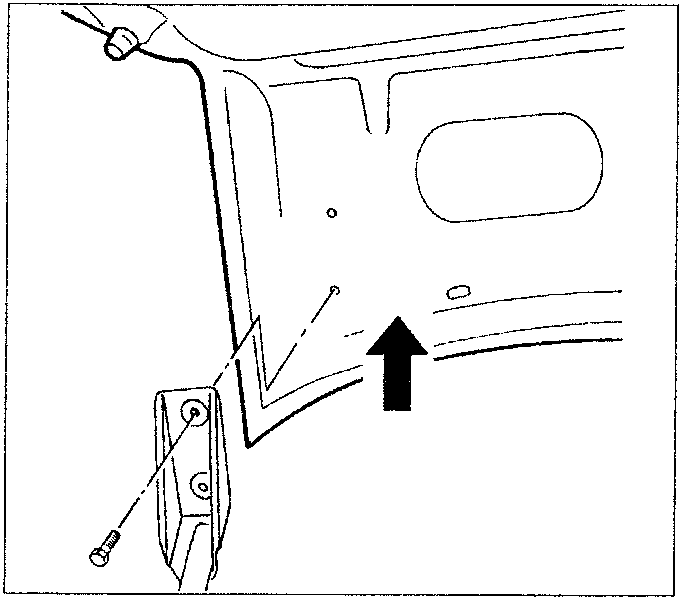

  • Remove the boot lid (see specific paragraph).

NOTE: To avoid removing the boot lid completely, after slackening the screws, but without disconnecting the wiring, it is advisable to temporarily fasten the lid further back.

Diagram showing removal of boot lid with arrow pointing up and screwdriver tool
  • Remove the parcel shelf (see specific paragraph).
  • Remove the rear pillar trims (see specific paragraph).
  • Disconnect the electrical connections of the rear screen.

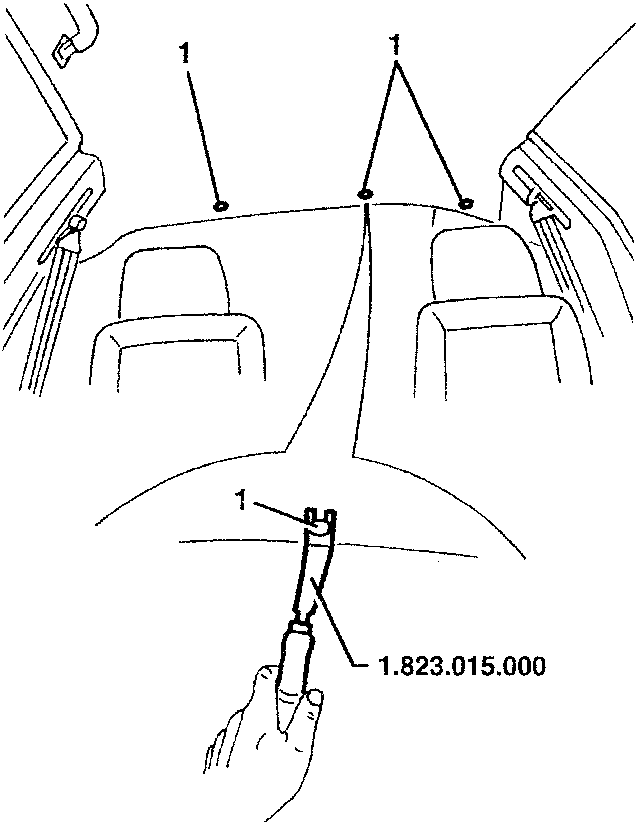

  1. Using tool 1.823.015.000 remove the four plastic nails fastening the rear roof lining.
Diagram showing removal of plastic nails with tool 1.823.015.000

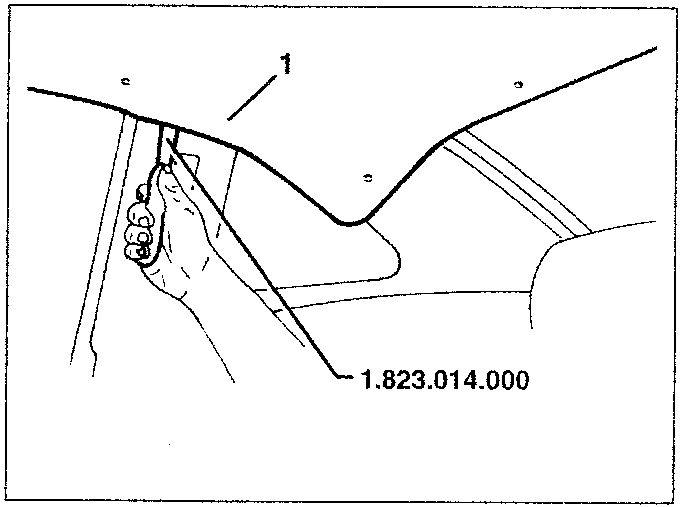

  1. Using tool 1.823.014.000 remove the roof lining from the centre pillar trim.
Diagram showing removal of roof lining from centre pillar trim with tool 1.823.014.000

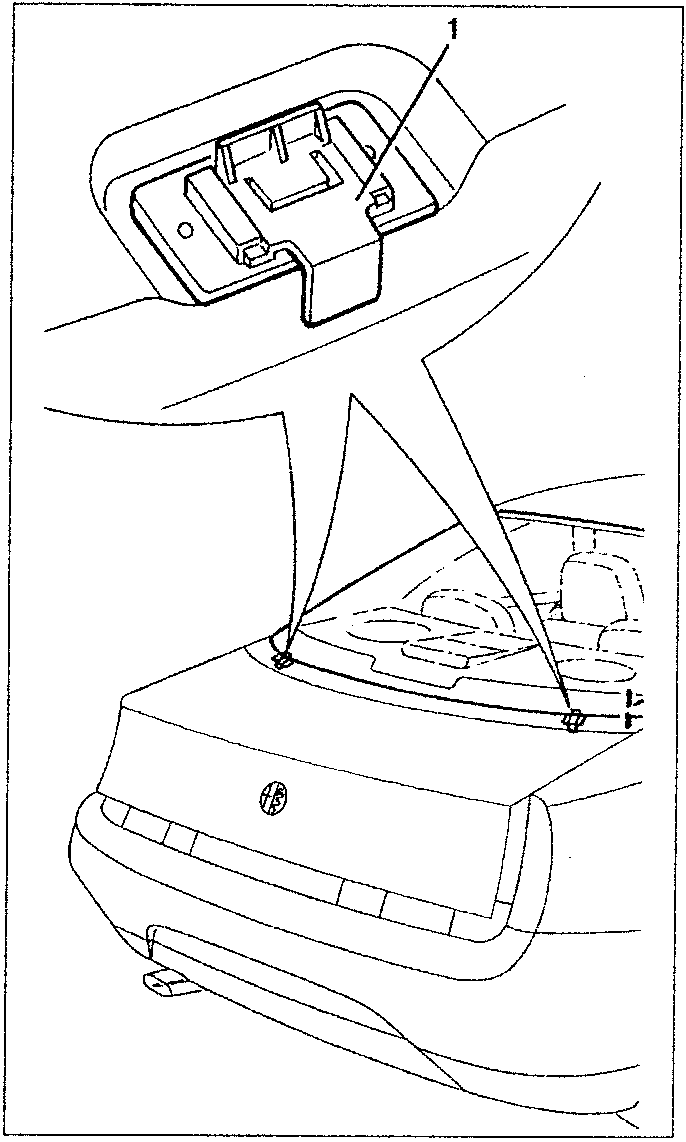

  1. Raise the rear edge of the seal and remove the rearscreen rest feet.
Diagram showing raising rear edge of seal to remove rearscreen rest feet
