Adjustment

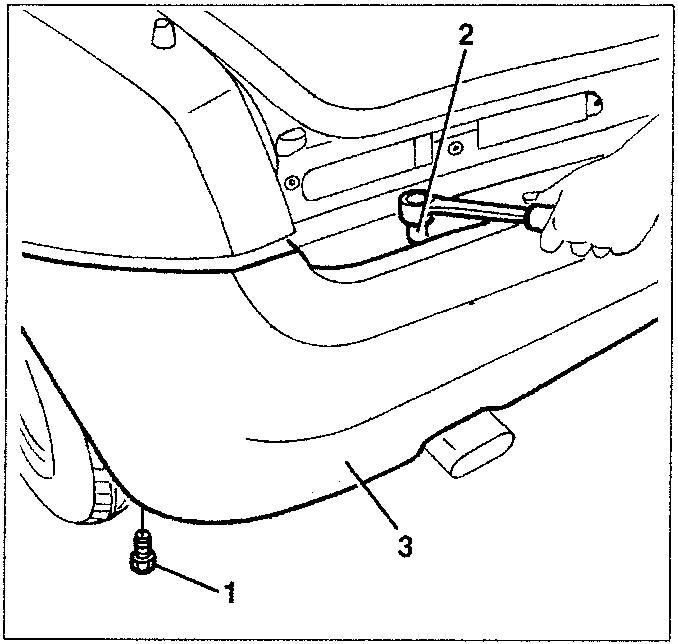

1. Slacken the lower screws at the ends of the gravel guard.
2. Slacken the bumper fastening screws.
3. Remove the bumper withdrawing the side slots.

Refit reversing the sequence followed for removal. If necessary, adjust the position of the bumper (see specific paragraph).

ADJUSTMENT

• Remove the luggage compartment rear trim (see specific paragraph)

Working from the luggage compartment:

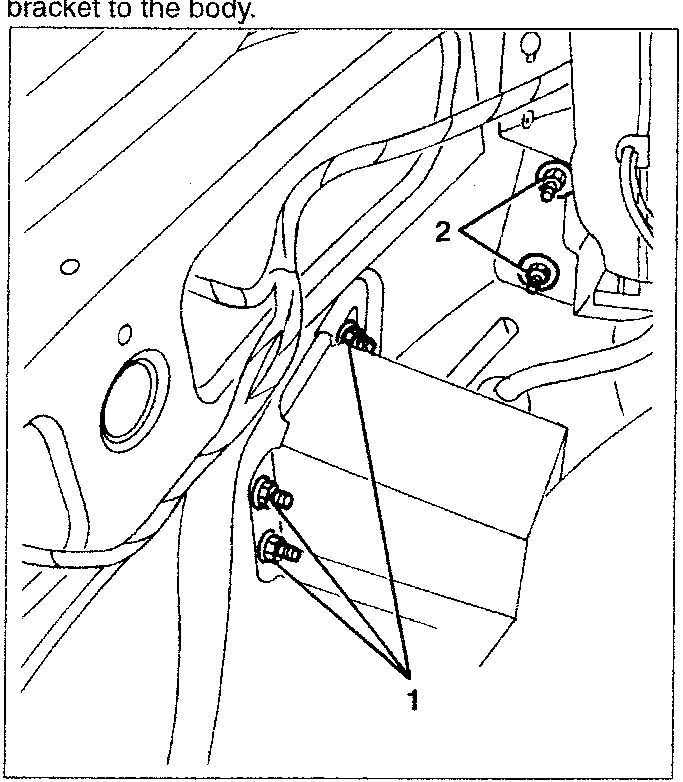

1. Loosen the four nuts fastening each bumper support bracket to the body.
2. Loosen the two nuts fastening each bumper side bracket to the body.

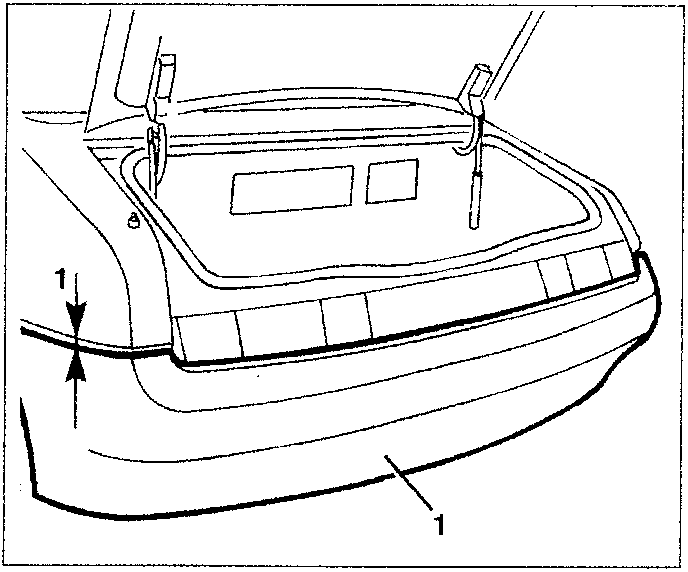

1. Raise or lower the bumper until it is perfectly aligned with the body.

• Lock the screws loosened previously.

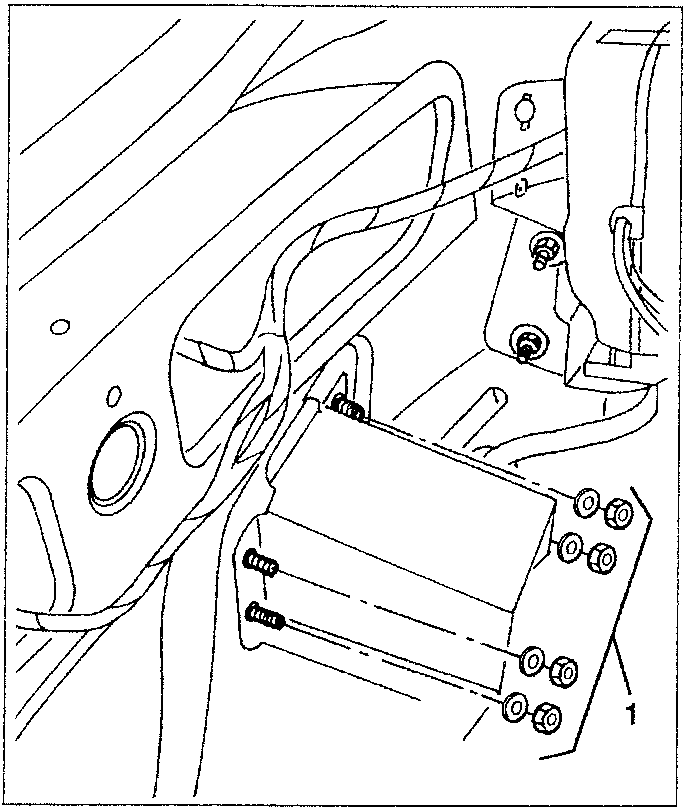

BUMPER SUPPORT BRACKET

Removal/Refitting

• Remove the rear bumper (see specific paragraph).

1. Slacken the four nuts, working from the luggage compartment.
2. Remove the bumper support bracket from the outside.
