Refitting (page 2 of 2)

NOTE: Check that there is no unevenness or waviness between the glass and its resting surface.

• Remove the windscreen again.

[symbol] Proceed with the glueing cycle using the special Spares KIT, checking the "use by" date.

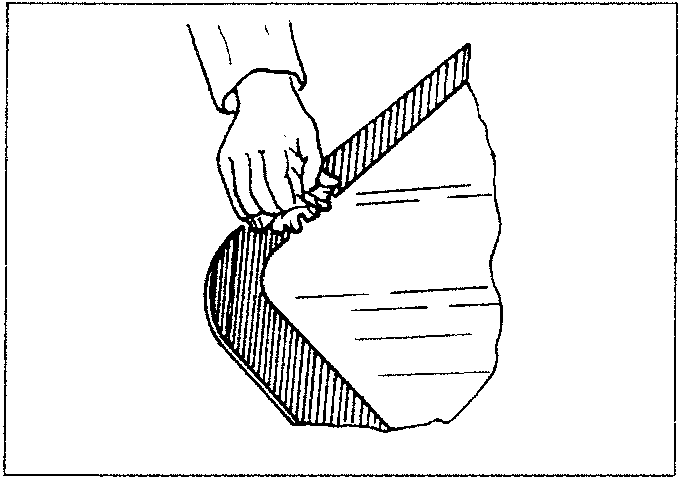

1. For new glass only: accurately clean the edge of the glass with the special cloth moistened with degreasing agent.

Before assembly, with the glass cleaned, make sure there are no chips on the perimeter.

Make sure there are no distortions on the glass resting surface.

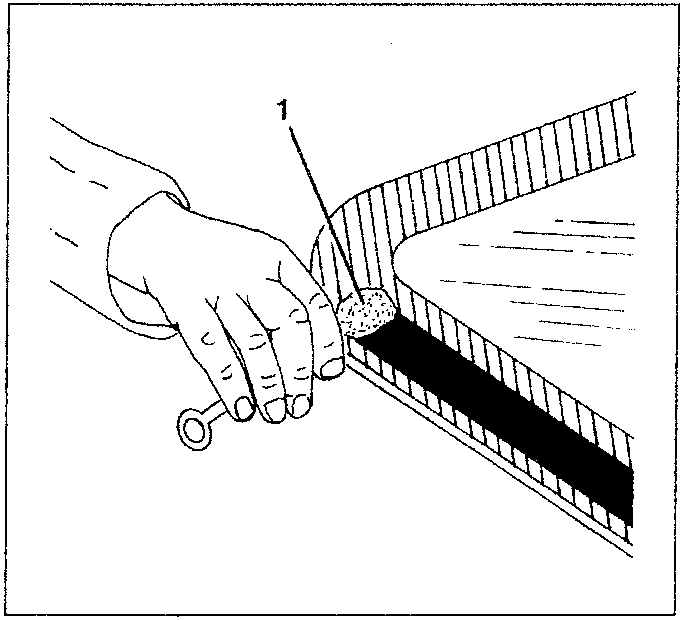

1. Apply the primer, continuously and seamlessly, on the black serigraph using the applicator provided, as illustrated.

NOTE: After application let the primer dry for at least 10 minutes keeping the surface clean.

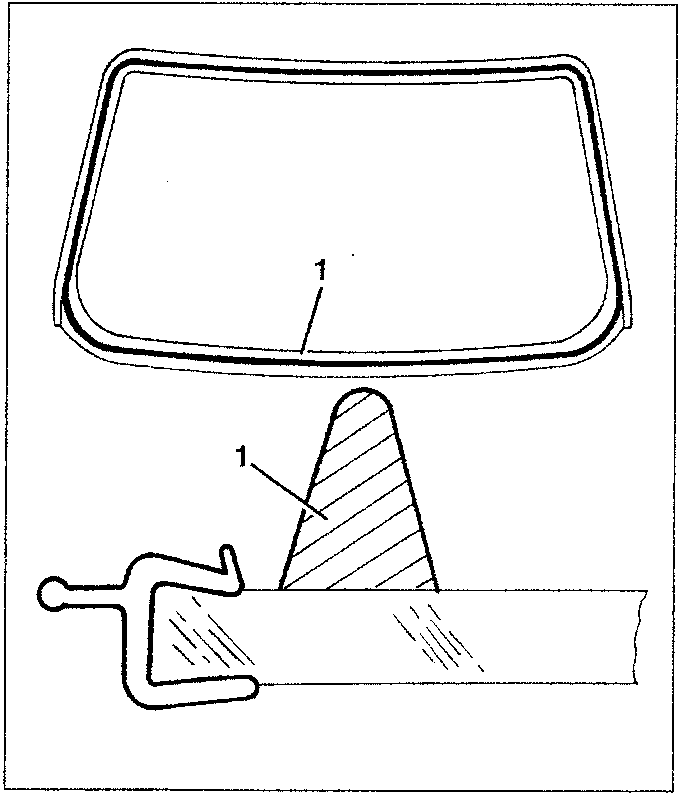

1. Apply the sealant along the line illustrated, using the nozzle provided, from which the guide should be removed.

Start applying the sealant at the centre of the lower edge of the glass and keep the seam continuous and even.

NOTE: Use the short or long sealant cartridge (or both if necessary) depending on the perimeter of the glass concerned.

• Using the special suction cups, fit the windscreen positioning it on the lower feet and centering it in the housing.
• Exert a light even pressure along the edge of the windscreen.

[symbol] Complete refitting reversing the sequence followed for removal taking care not to refit the inner rearview mirror when the sealant is still soft.

NOTE: Do not use the car until the sealant has dried completely.
