70 BodyworkAdjustment

ADJUSTMENT

  1. Working on the screws adjust the lid longitudinally and at the sides, checking the alignment and gaps; also bear in mind the further possibility of adjustment using screws A (see specific paragraph).

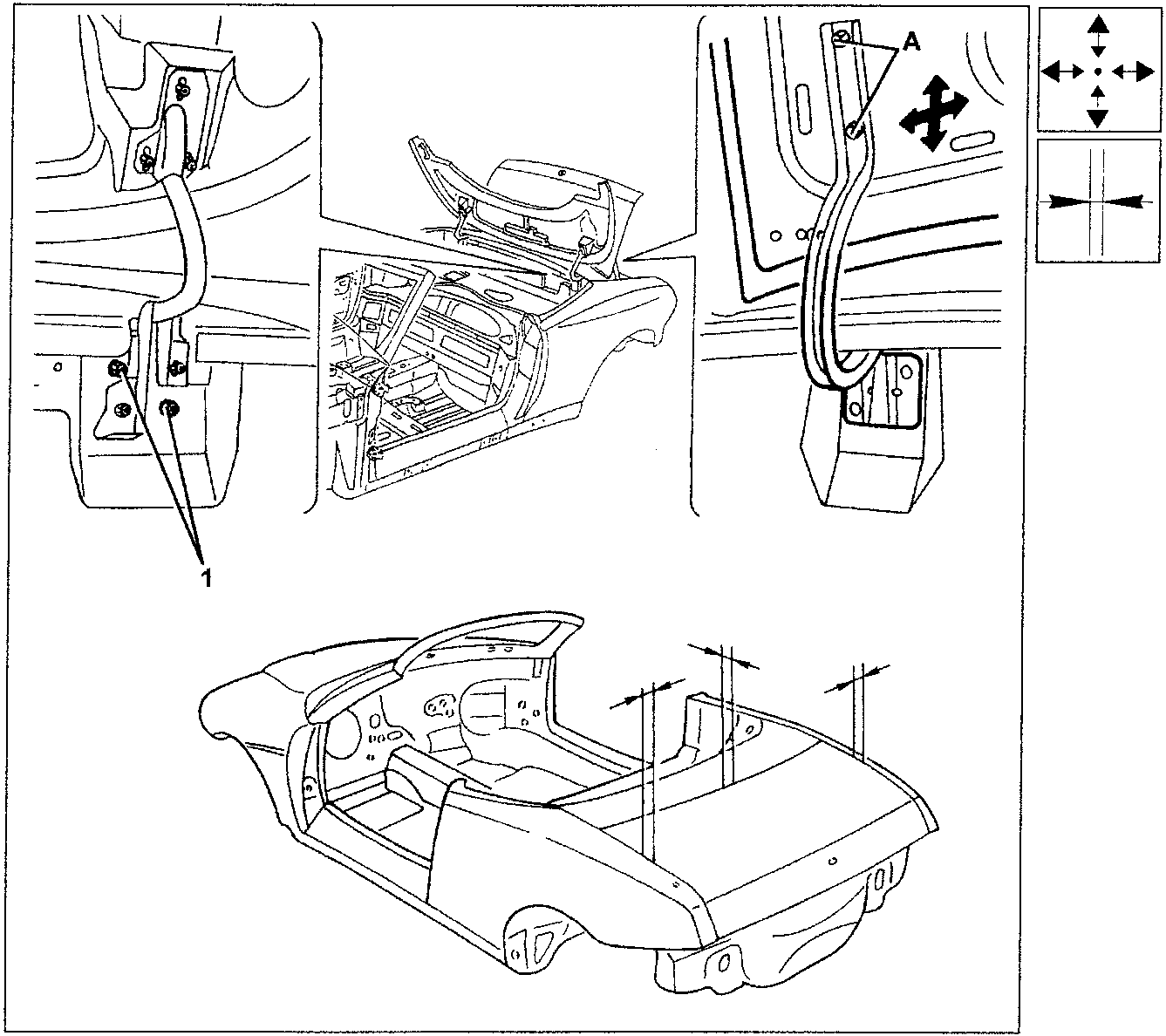

Illustration showing adjustment points for a car's boot lid, including side and longitudinal adjustments, with arrows indicating movement directions. The bottom view shows the car with adjustment rods at the rear.

NOTE: Before adjusting the boot lid, the seal, lock and telescopic props should be installed.
