70 BodyworkDoors

DOORS

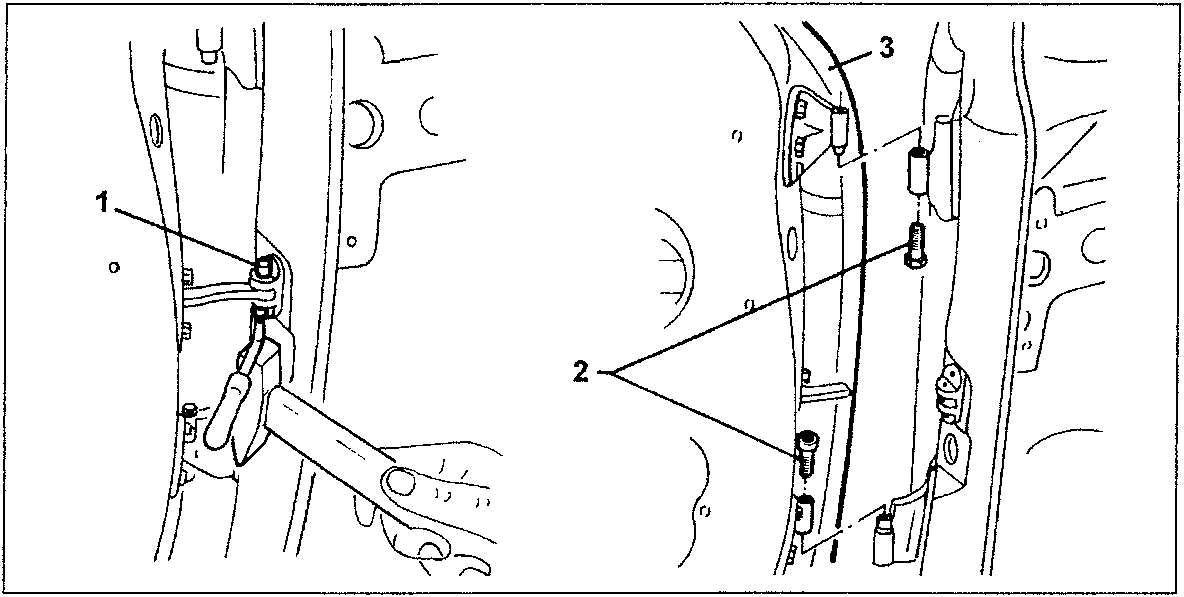

REMOVING/REFITTING

  1. Remove the door check rod pin pulling upwards. Half close the door to move the rod in, then open again.
  2. Slacken the two screws fastening the door to the hinges.
  3. Raise the door until the hinge taper pins come out of their seats, then remove the door.
Diagram showing door removal process with labeled parts 1, 2, and 3.

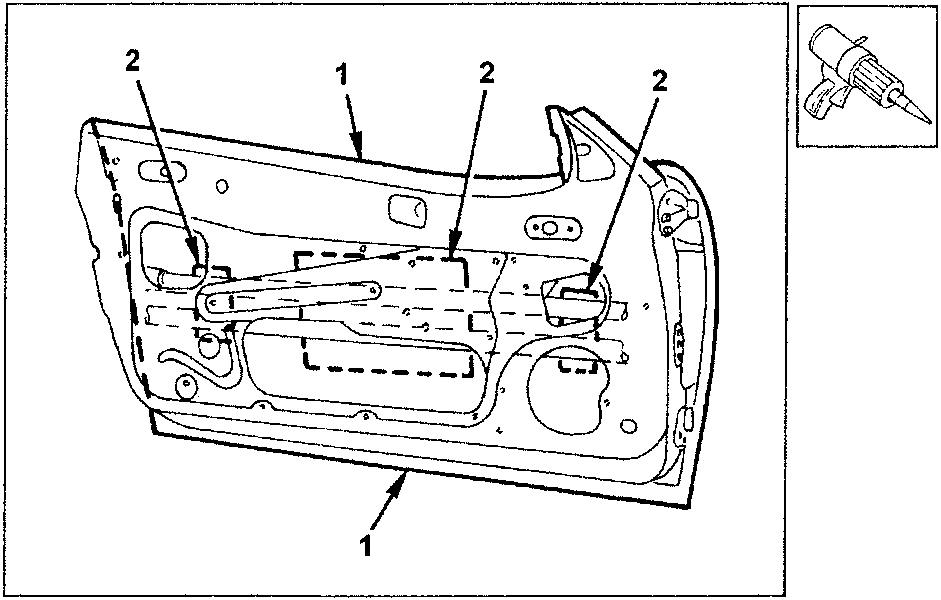

Refit the door reversing the sequence followed for removal observing the following instructions.

  1. If a new door is fitted, apply the specified sealant around the inner perimeter.
  2. Check that there are the damper panels inside the door.
Diagram showing door refitting with labeled parts 1 and 2.

If necessary, adjust the door proceeding as described in the corresponding paragraph.
