REMOVING/REFITTING

  • Remove the boot lid (see specific paragraph).
  • Open the hood compartment cover and support it appropriately.

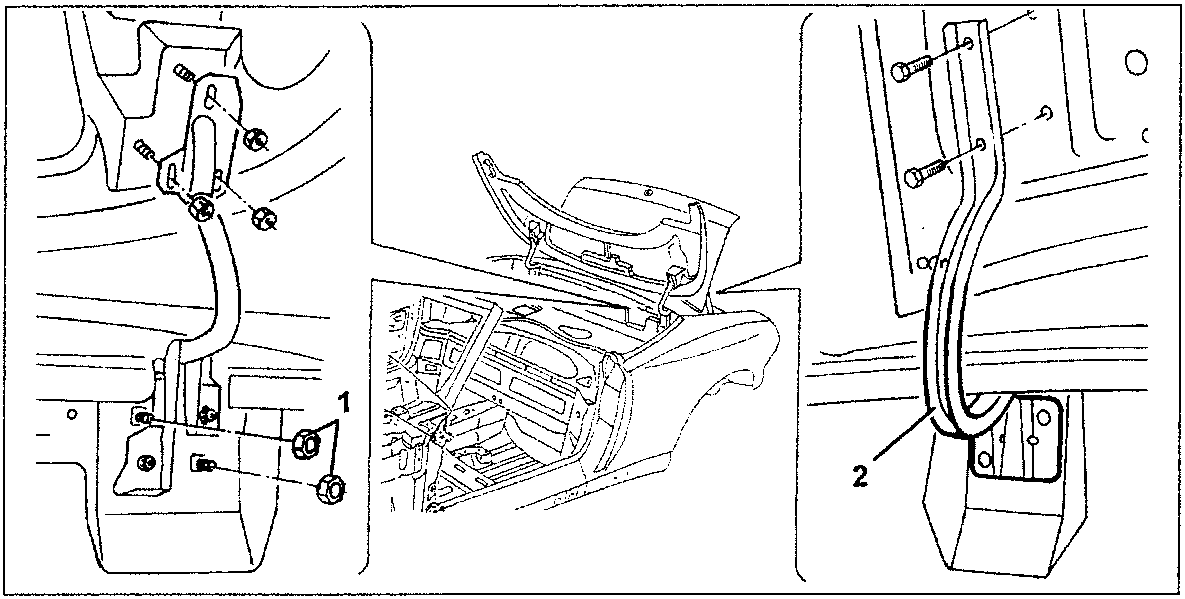

  1. From the hood compartment side, slacken (from both sides) the two nuts illustrated.
  2. Remove the boot lid hinges.
Illustration showing the removal of boot lid hinges from the hood compartment side and the boot lid hinge mechanism

Refit the hinges and boot lid reversing the sequence followed for removal and observing the following instructions:

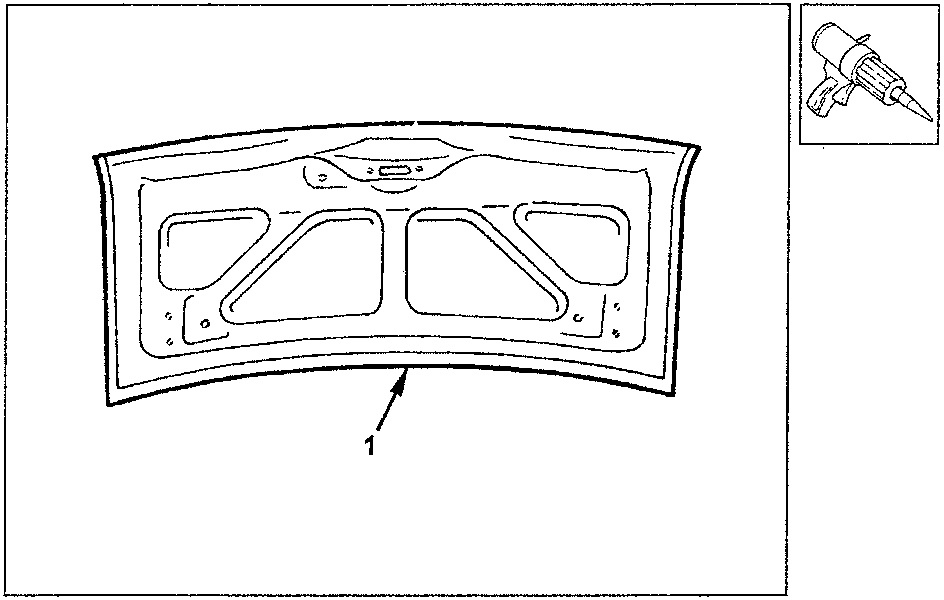

  1. If a new boot lid is to be installed, before painting it, apply the specified sealant around the inner perimeter of the lid.
Illustration showing the application of sealant around the inner perimeter of a new boot lid
