70 BodyworkRemoving/refitting

REMOVING/REFITTING

– Remove the boot lid (see specific paragraph).

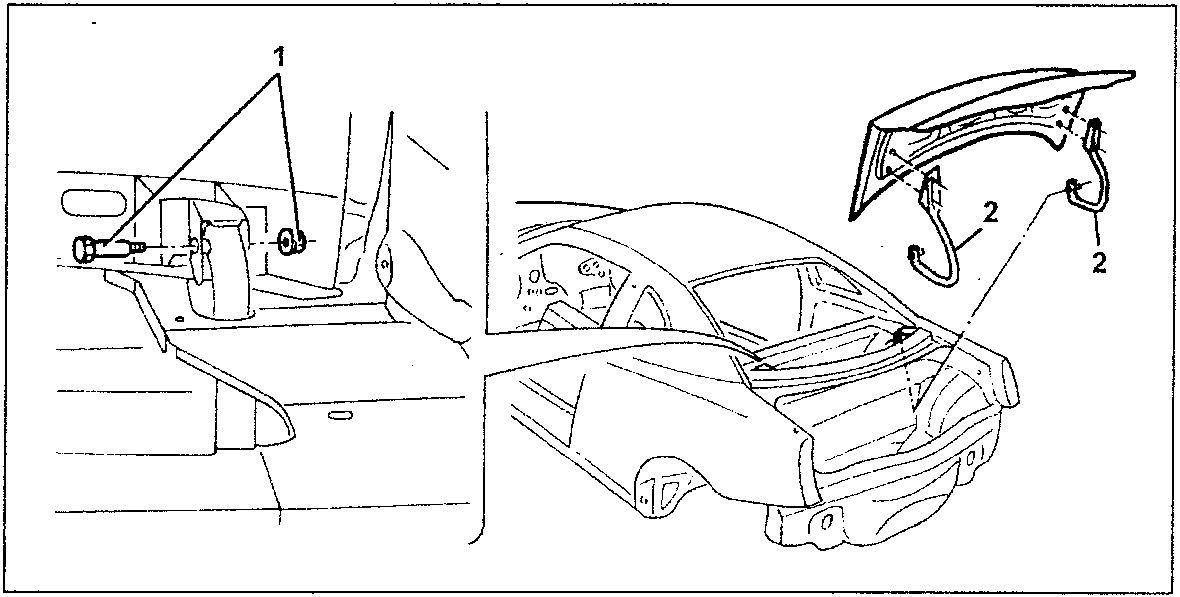

  1. From the passenger compartment side remove the nuts and withdraw the hinge pins.
  2. Remove the boot lid hinges.
Diagram showing removal of boot lid hinges from passenger compartment side and detached boot lid with hinge pins.

Refit the hinges and the boot lid reversing the sequence followed for removal and observing the following instructions:

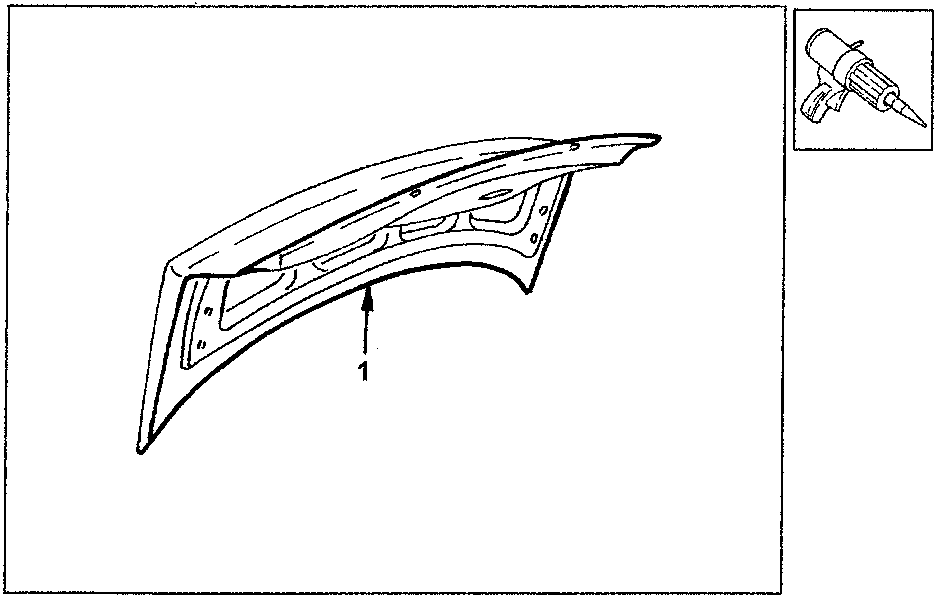

  1. If a new boot lid is to be installed, before painting it, apply the specified sealant around the inner perimeter of the lid.
Diagram showing application of sealant along the inner perimeter of a boot lid.
