FRONT WING

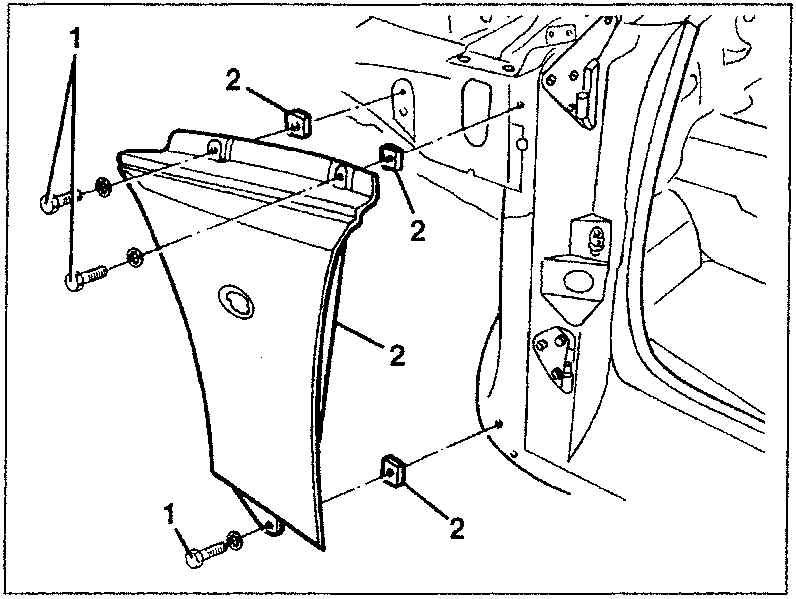

REMOVING/REFITTING

  • Open the bonnet and support it suitably.
  1. Slacken the three screws fastening the front wing to the structure.
  2. Remove the front wind and any shims.
Front wing removal diagram showing screws and shims

Refit the front wing reversing the sequence followed for removal.

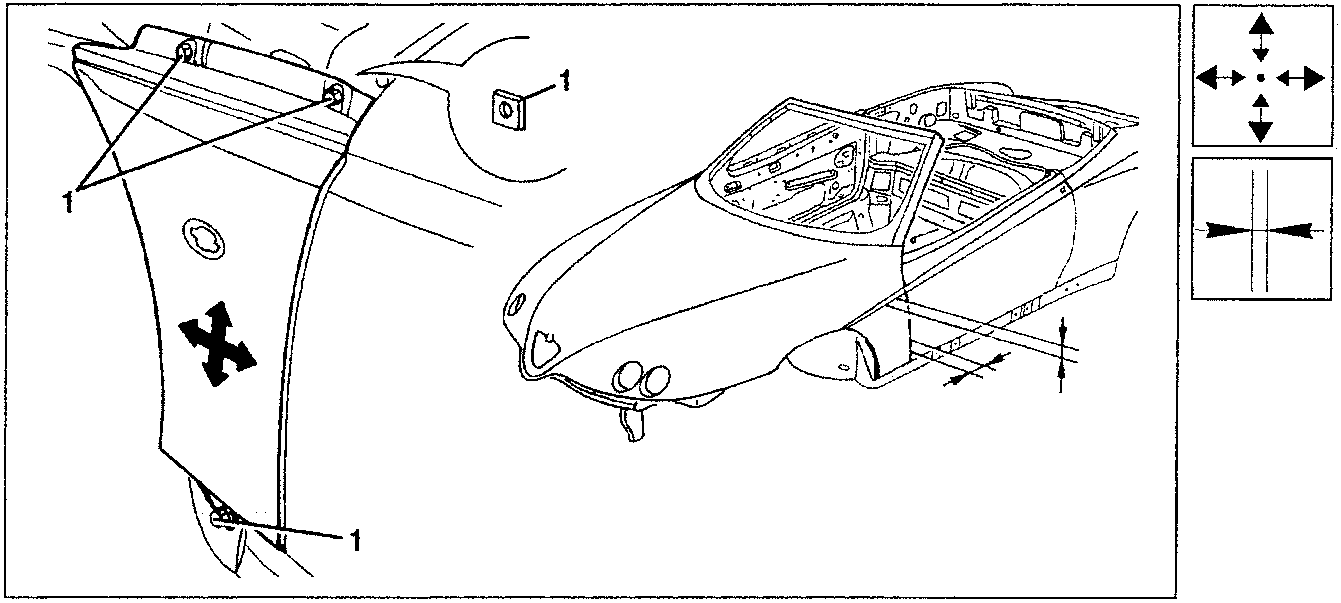

ADJUSTMENT

  1. Adjust the front wing longitudinally and vertically working on the fastening screws, checking the alignment and gaps; if necessary add some shims.
Front wing adjustment diagram showing alignment symbols
