DASHBOARD SUPPORT CROSSMEMBER

REMOVING/REFITTING

  1. Slacken the two crossmember side fastening screws.
  2. Slacken the two upper crossmember fastening screws.
  3. Remove the dashboard support crossmember.

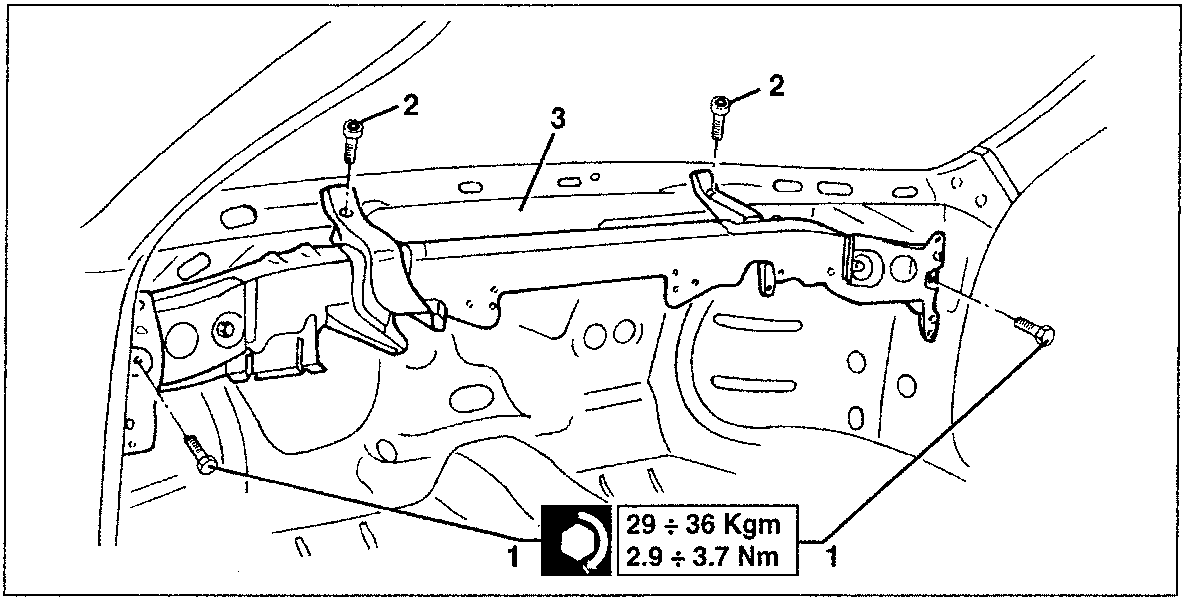

Dashboard support crossmember with labeled parts and torque specifications

29 ÷ 36 Kgm
2.9 ÷ 3.7 Nm

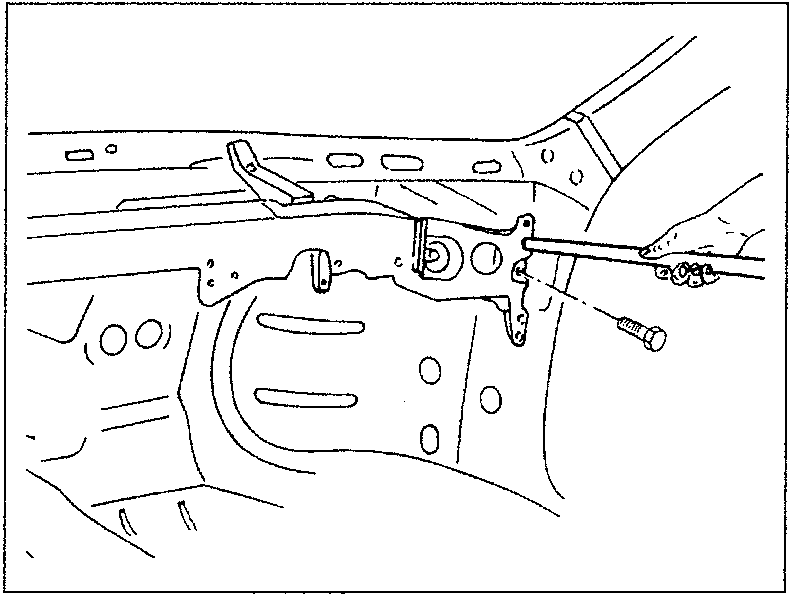

When refitting, to facilitate centering of the screw, use a lever on the hole provided, as illustrated.

Illustration showing lever being used for screw centering
