Introduction - Clutch

1.2 8v, 1.4 16v

Clutch introduction

The clutch is single dry plate type, with a thrust bearing in permanent contact with the pressure spring.

The driven plate is driven by pressure exerted by a diaphragm spring.

Clutch release is carried out via a cable mechanically controlled by the pedal through a damper.

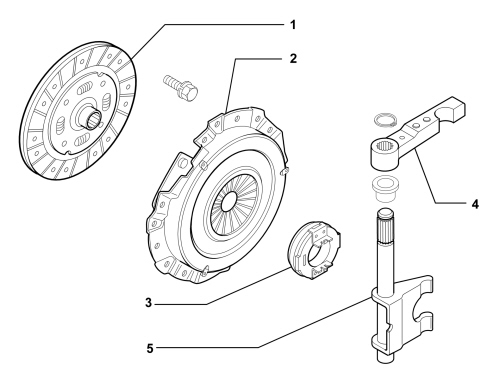

1. Driven disc

2. Pressure plate

3. Thrust bearing

4. Release lever

5. Release control shaft

1.3 Multijet

Clutch introduction

The clutch is single dry plate type, with a thrust bearing in permanent contact with the pressure spring.

Clutch release is carried out via a flexible cable mechanically controlled by the pedal through a damper.

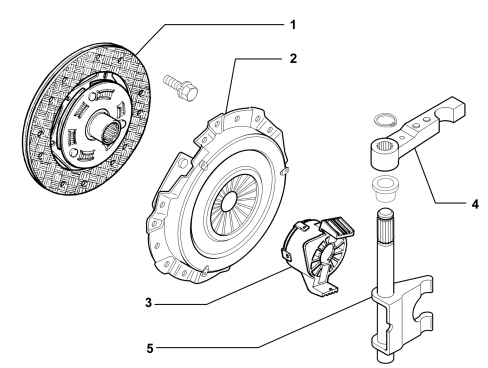

1. Driven disc

2. Pressure plate

3. Thrust bearing

4. Release lever

5. Release control shaft
