SpecificationsVehicle dimensions

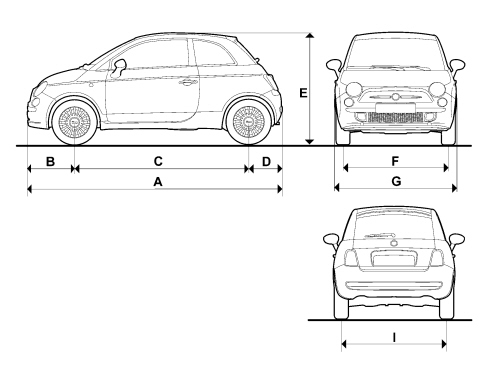

VEHICLE DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen
| 1.2 8v 69 CV | 1.4 16v 100CV | 1.3 Multijet 75 CV | |
|---|---|---|---|
| A | 3546 | 3546 | 3546 |
| B | 703 | 703 | 703 |
| C | 2300 | 2300 | 2300 |
| D | 543 | 543 | 543 |
| E | 1488(*) | 1488(*) | 1488(*) |
| F | 1413 | 1413/1414(**) | 1413 |
| G | 1627 | 1627 | 1627 |
| I | 1407 | 1408 | 1407 |
(*) Small variations in size are possible depending on the dimensions of the rims
(*) With 195/45 R16 tyres
Luggage compartment volume
Capacity with vehicle unladen (V.D.A. standards): 185 litres
