VEHICLE LIFTING POINTS

1.2 8v, 1.3 Multijet, 1.4 16v

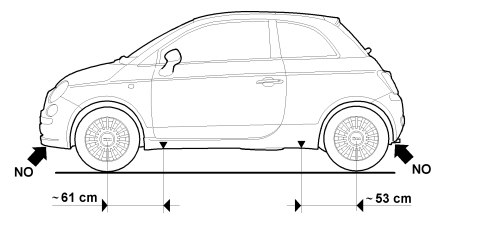

To raise the vehicle using lift arms or a workshop lift, arrange the ends of the arms or the lift in the areas shown in the diagram only.

The vehicle should only be raised at the side. After lifting the vehicle, support it on safety stands. It is absolutely forbidden to lift the vehicle by positioning the workshop lift under the front suspension track control arms and strap or under the rear suspension axle.
