Tailgate opening control - r.r.
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Tailgate/flap › Tailgate opening control - r.r.
Body fittingsTailgate opening control - r.r.
TAILGATE OPENING CONTROL - R.R.
Removing
Op. 7015A05 TAILGATE LOWER INTERIOR PANEL-R R

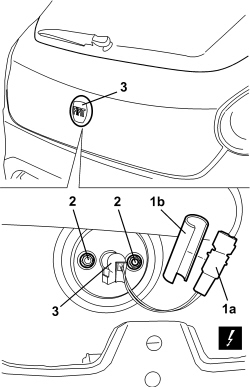

1. Disconnect the electrical connection (1a) after having released the noise protection (1b).
| Description | Connector | |
|---|---|---|
| 1a | SWITCH ON BOOT EXTERIOR HANDLE | See I033 SWITCH ON BOOT OUTER HANDLE |
2. Undo the nuts.
3. From the outside of the vehicle, remove the tailgate opening control and keep the seal.
Refitting
- Check that the tailgate opening control is not damaged.
- Position the tailgate opening control and seal.
- Tighten the nuts.
- Connect the electrical connection, then fit the noise protection.
