REVERSING LIGHT BULB - R+R

Operation 5550D26 · BRAKE AND REVERSING LIGHTS

Removing

- Raise the vehicle in the area of the reversing light.

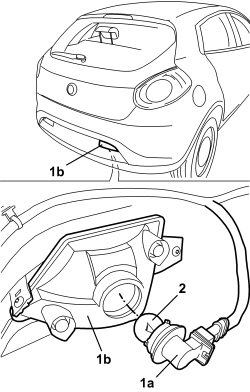

1. Place a hand inside the rear bumper and extract the bulb holder (1a) for the reversing light (1b) (bayonet fitting).

2. Extract the bulb from the bulb holder (bayonet fitting).

Refitting

- Check the condition of the bulb and make sure that it is clean.

- Fit the bulb in the bulb holder.

- Fit the bulb holder and bulb in the housing.

- Check that the bulb is working.

- Lower the vehicle.
