THIRD BRAKE LIGHT - R+R

Operation 5550D16 · BRAKE AND REVERSING LIGHTS

Removing

- Open the tailgate.

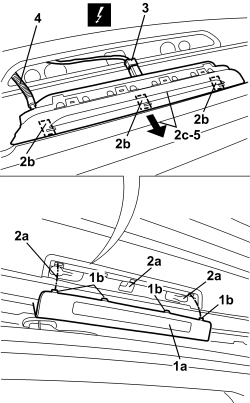

1. Remove the cover (1a) releasing the retainers (1b).

2. Release the retainers (2b) via the openings (2a) and move the third brake light (2c) outwards.

3. Lower the tailgate and disconnect the electrical connection.

4. Disconnect the rear windscreen washer jet pipe.

5. Keep the third brake light.

Refitting

- Check that the third brake light is not damaged.

- Connect the rear windscreen washer jet pipe.

- Attach the electrical connection.

- Fit the third brake light in its seat and attach the retainers.

- Place the cover in position and attach the retainers.

- Check the operation of the third brake light.
