REAR EXHAUST SILENCER - R + R

Operation 1076B20 · EXHAUST PIPES AND SILENCERS

1.4 16v, 1.9 JTD 8v, 1.9 JTD 16v

Removing

- Position the vehicle on a lift.

1. Loosen the collar securing the rear exhaust silencer to the front exhaust silencer.

2. Undo the bolt fixing the flexible mounting to the bodyshell.

3. Remove the rear exhaust silencer.

Refitting

- Fit the rear exhaust silencer and tighten the bolt fixing the flexible mounting to the bodyshell.

- Connect the rear exhaust silencer to the front exhaust silencer and tighten the collar to the recommended torque.

- Remove the vehicle from the lift.

1.4 16v TJet

Removing

- Position the vehicle on a lift.

1. Undo the nuts and disconnect the exhaust pipe front section from the front silencer.

- Remove the gasket.

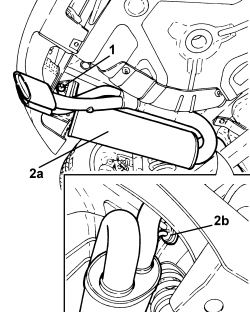

2. Loosen collar (2a), disconnect front exhaust silencer (2b) from flexible mountings and from rear silencer.

1. Undo the bolt fixing the rear exhaust silencer mounting to the bodyshell.

2. Release rear exhaust silencer (2a) from flexible mounting (2b) and remove it.

- If necessary, remove the rear flexible mounting.

Refitting

- refit the rear exhaust silencer in its housing, connect it to the front flexible mounting and close the rear mount bolt.

- Connect the front exhaust silencer to the rear silencer, to the flexible mountings and tighten the collar nut to the recommended torque.

- Fit a new seal, connect the the exhaust pipe front section to the front silencer and tighten the nuts to the recommended torque.

- Remove the vehicle from the lift.
