INTRODUCTION - EXHAUST PIPES AND SILENCERS

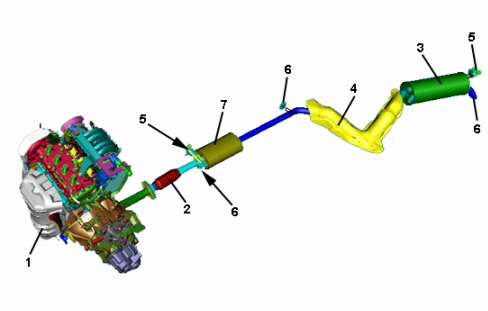

1.4 16v

The engine exhaust gases flow to the manifold - three-way catalytic converter assembly (1).

There is a flexible element (2) in the front section of the exhaust pipe to restrict the transmission of vibrations and a silencer (7).

The rear exhaust pipe section consists of a silencer (3).

Special protections (4) limit heat radiation to the body.

The various components are supported by mountings (5) and seals (6) secured to the body.

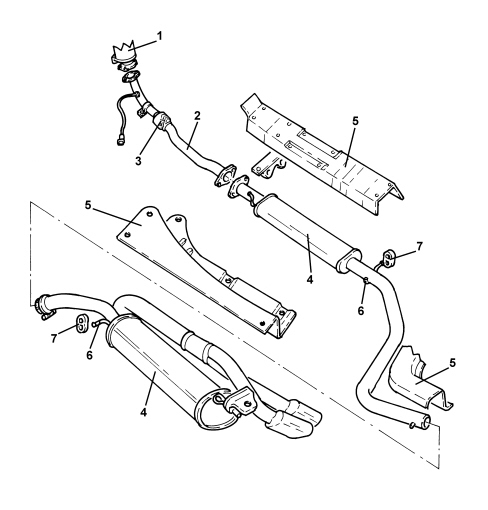

1.4 16v TJet

The engine exhaust gases flow through the manifold to the turbocharger to the catalytic converter (1).

There is a flexible element (3) in the front section of the exhaust pipe (2) to restrict the transmission of vibrations.

The rear exhaust pipe section consists of two silencers (4).

Special guards (5) prevent heat radiating toward the body and fuel tank.

The various components are supported by brackets (6) and flexible loops (7) secured to the body.
