INTRODUCTION - EXHAUST PIPES AND SILENCERS

2.2

SPECIFICATIONS

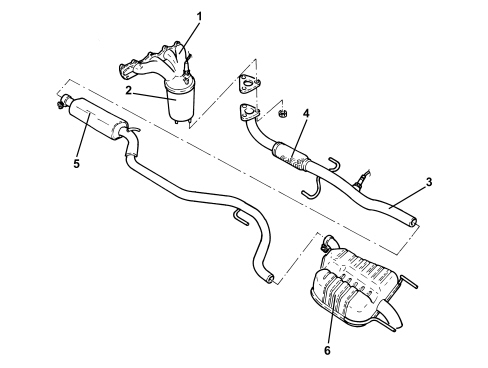

The engine exhaust gases flow into manifold (1) integral with catalytic converter (2) and then on to the front section of exhaust pipe (3). There is a flexible element (4) in the front section of the exhaust pipe to restrict the transmission of vibrations.

The rear exhaust pipe section consists of a silencer (5) connected to the silencers (6).

Special guards prevent heat radiating toward the body and fuel tank.

1.9 JTD 8v, 1.9 JTD 16v

COMPOSITION - For versions with DPF

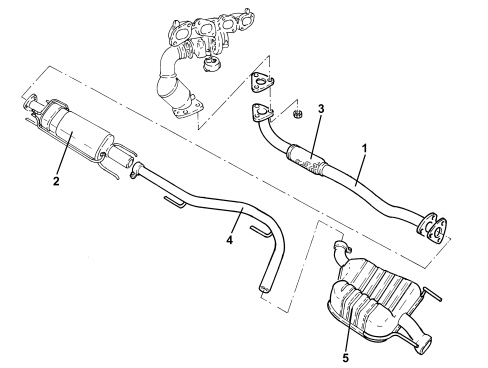

The engine exhaust gases flow through the manifold to the turbocharger and to the catalytic converter and then via a pipe (1) to the DPF filter (2)

There is a flexible element (3) in the front section of the exhaust pipe to restrict the transmission of vibrations.

The rear section of the exhaust comprises an intermediate pipe (4) and the rear silencer (5).

Special guards prevent heat radiating toward the body and fuel tank.

COMPOSITION - For versions without DPF

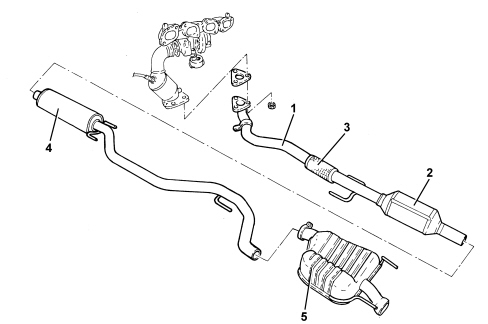

The engine exhaust gases flow through the manifold to the turbocharger, to the preconverter and then via a pipe (1) to the catalytic converter (2)

There is a flexible element (3) in the front section of the exhaust pipe (1) to restrict the transmission of vibrations.

The rear section of the exhaust comprises a front silencer (4) and a rear silencer (5).

Special guards prevent heat radiating toward the body and fuel tank.

2.4 JTD 20v

COMPOSITION

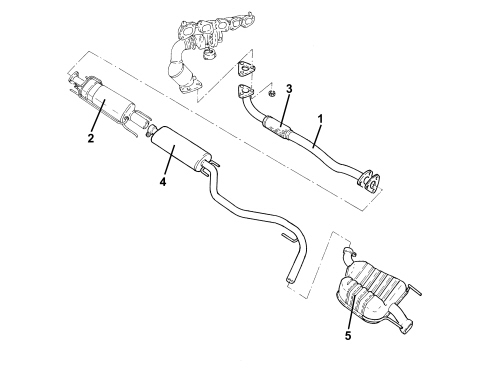

The engine exhaust gases flow through the manifold to the turbocharger and to the catalytic converter and then via a pipe (1) to the DPF filter (2)

There is a flexible element (3) in the front section of the exhaust pipe to restrict the transmission of vibrations.

The rear exhaust pipe section consists of two silencers (4) and (5).

1.8

CONSTRUCTION SPECIFICATIONS

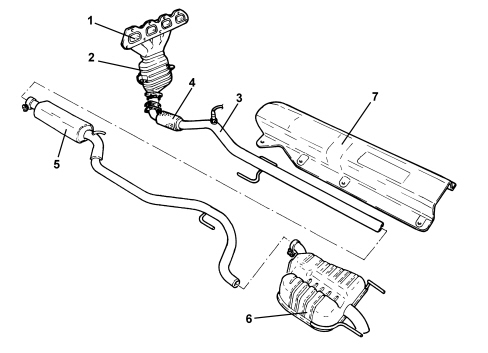

The engine exhaust gases flow into manifold (1) integral with catalytic converter (2) and then on to the front section of exhaust pipe (3). There is a flexible element (4) in the front section of the exhaust pipe to restrict the transmission of vibrations. The rear exhaust pipe section consists of a silencer (5) connected to the rear silencer (6).

Special guards (7) prevent heat radiating toward the body and fuel tank.

The various components are supported by mounts and flexible rings secured to the underbody.
