HANDBRAKE SHOES - R.R.

Operation 3380C10 · HANDBRAKE DEVICE FOR REAR DISC BRAKES

Removing

Op. 3310B30 REAR BRAKE DISCS R R

Op. 3310B50 REAR BRAKE DISCS R R

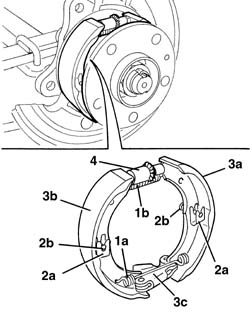

1. Release the shoe return springs (1a) and (1b) on one side.

2. Release the shoe retaining springs (2a), then remove the pins (2b) from the rear.

3. Remove the shoes (3a) and (3b) releasing them from the handbrake attachment linkage (3c).

4. Separate the shoes from the clearance recovery device.

The shoes should be replaced if the thickness of the friction material is less than 1.5 mm.

Check that the same type of brake shoes are fitted on both wheels.

Refitting

- Place the shoes and the clearance recovery device in position.

- Place the handbrake attachment linkage in position.

- Refit the shoe retaining springs and pins in position.

- Attach the shoe return springs.

- Check that the brakes are working.
