REAR WHEEL BRAKE BACK PLATE - R.R.

Operation 3380C41 · HANDBRAKE DEVICE FOR REAR DISC BRAKES

Removing

Op. 3310B30 REAR BRAKE DISCS R R

Op. 3310B50 REAR BRAKE DISCS R R

Op. 3380C10 HANDBRAKE SHOES - R.R.

Op. 4450D10 HUB OF ONE REAR WHEEL, L/H OR R/H - R+R WITH WHEEL REMOVED

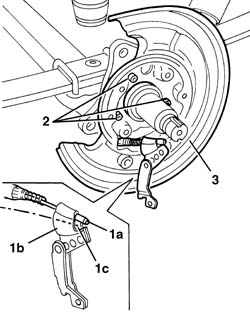

1. Release the handbrake cable terminal retainer (1a) from the linkage (1b) passing it through area (1c).

2. Undo the bolts fixing the brake back plate.

3. Remove the brake back plate.

Refitting

- Place the brake back plate in position.

- Tighten the plate fixing bolts.

- Attach the handbrake cable terminal retainer to the linkage.

Op. 4450D10 HUB OF ONE REAR WHEEL, L/H OR R/H - R+R WITH WHEEL REMOVED

Op. 3380C10 HANDBRAKE SHOES - R.R.

Op. 3310B50 REAR BRAKE DISCS R R

Op. 3310B30 REAR BRAKE DISCS R R

Op. 3380A04 HANDBRAKE - CHECK TRAVEL
