Supplementary heater location components

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Climate control system › Supplementary heater location components

Wiring diagrams and electrical functionsSupplementary heater location components

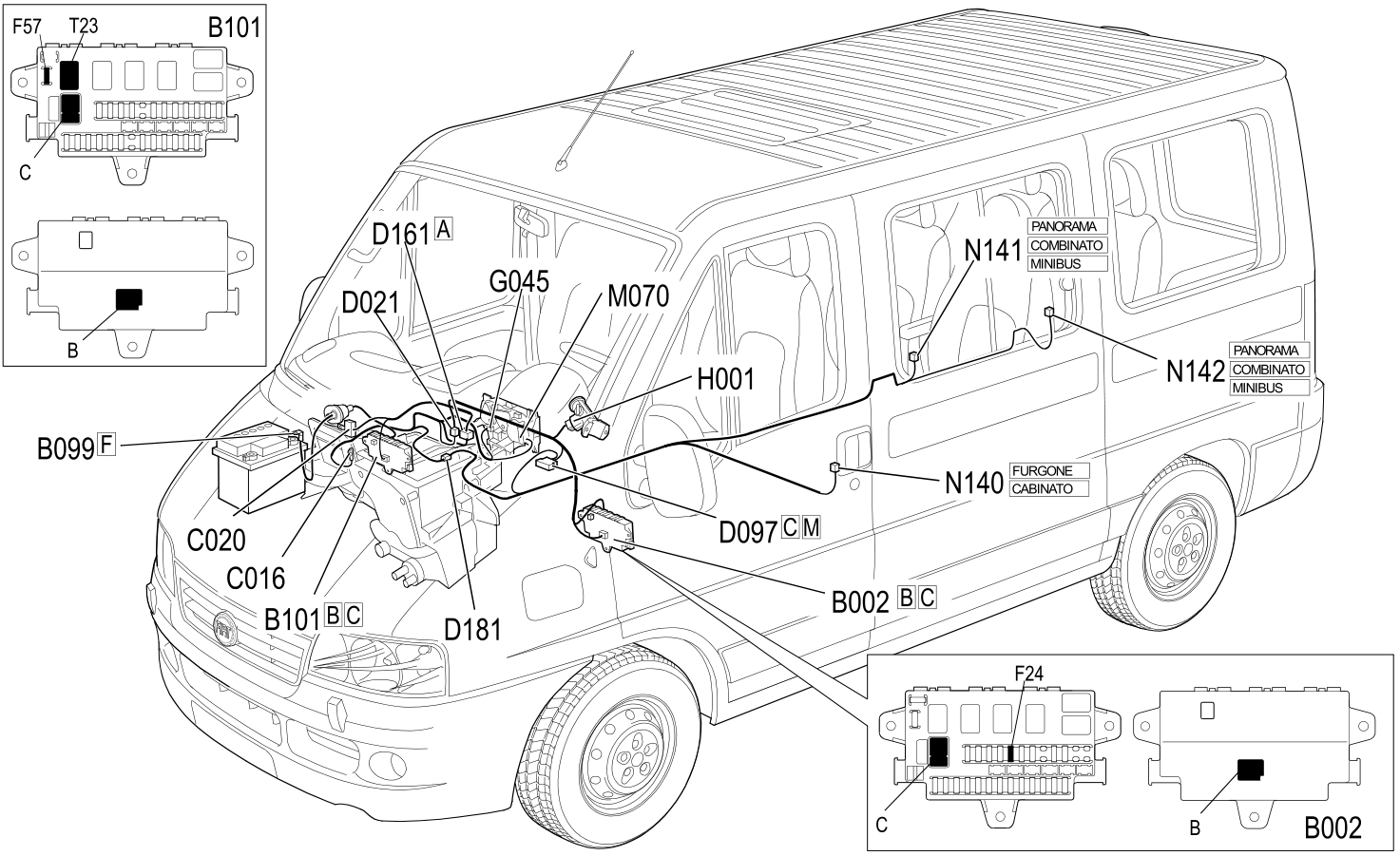

SUPPLEMENTARY HEATER LOCATION COMPONENTS

Location Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
B101	OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
D097	SHORT CIRCUITING COUPLING
D161	OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING
D181	HEATER/ADDITIONAL HEATER COUPLING
N140	FRONT SUPPLEMENTARY HEATER
N141	SECOND ROW SUPPLEMENTARY HEATER
N142	THIRD ROW SUPPLEMENTARY HEATER
