Supplementary heater wiring diagram
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Climate control system › Supplementary heater wiring diagram
Wiring diagrams and electrical functionsSupplementary heater wiring diagram

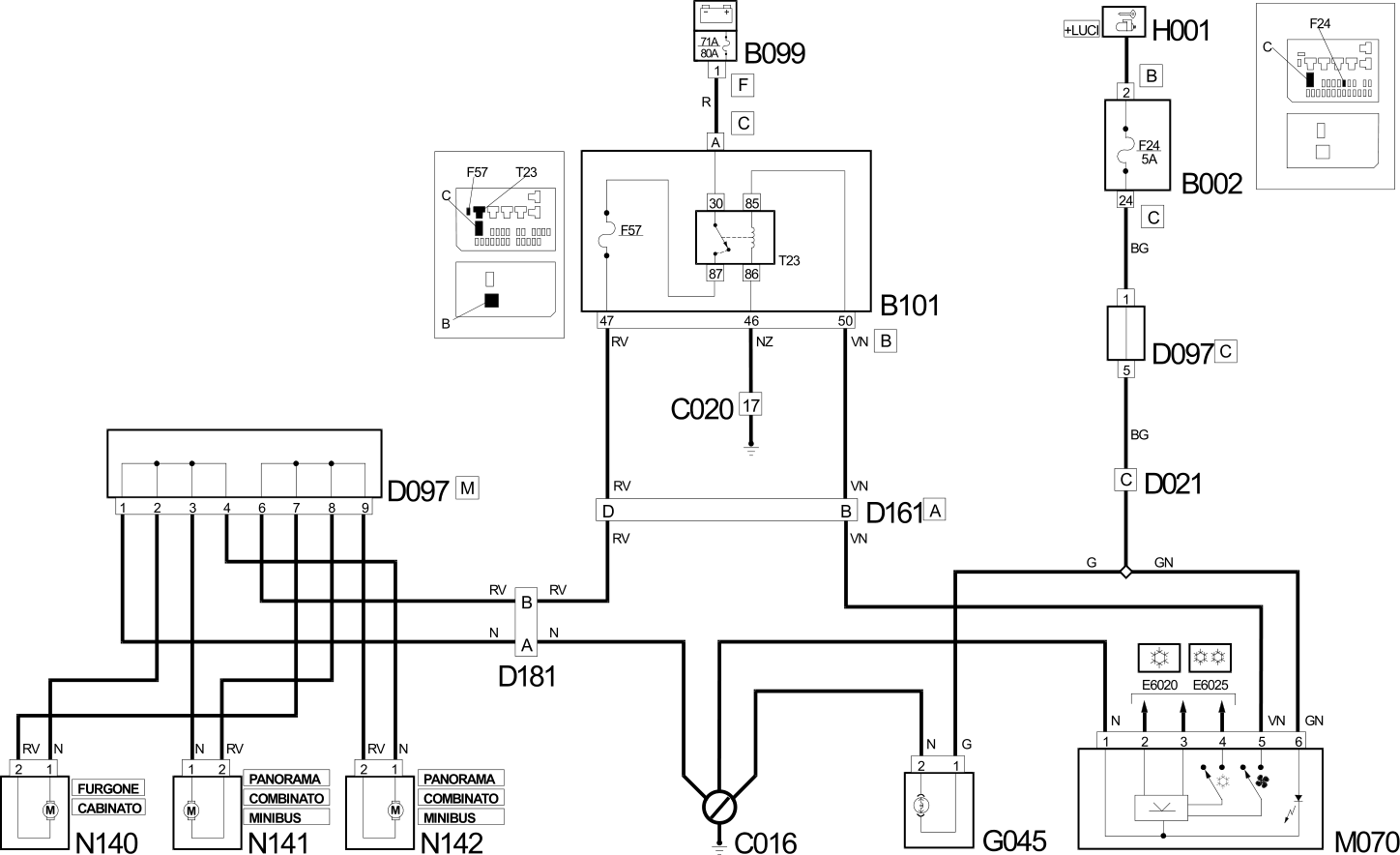

SUPPLEMENTARY HEATER WIRING DIAGRAM
Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| B101 | OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD | |
| D021 | DASHBOARD/AIR CONDITIONING-HEATER COUPLING | |
| D097 | SHORT CIRCUITING COUPLING | |
| D161 | OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING | |
| D181 | HEATER/ADDITIONAL HEATER COUPLING | |
| N140 | FRONT SUPPLEMENTARY HEATER | |
| N141 | SECOND ROW SUPPLEMENTARY HEATER | |
| N142 | THIRD ROW SUPPLEMENTARY HEATER |
