Wiring diagrams and electrical functionsHeater components location

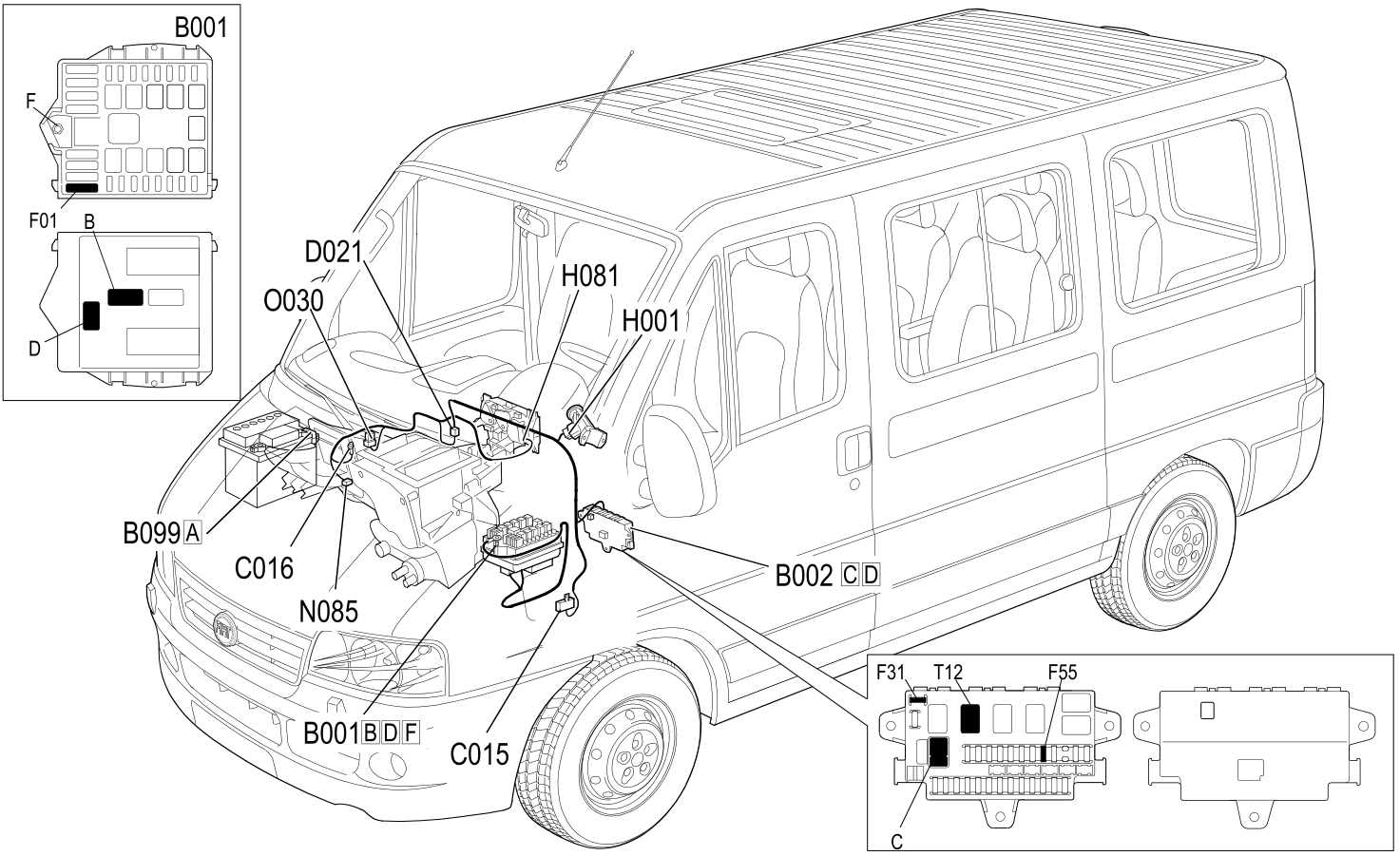

HEATER COMPONENTS LOCATION
Component location
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | JUNCTION UNIT | 5505A |
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| C016 | AIR CONDITIONING UNIT EARTH | |
| D021 | DASHBOARD/AIR CONDITIONING-HEATER COUPLING | |
| H001 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| H081 | CLIMATE CONTROL FAN CONTROL | |
| O30 | PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR | |
| N085 | PASSENGER COMPARTMENT AIR FAN |
