Additional heater wiring diagram
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Climate control system › Additional heater wiring diagram
Wiring diagrams and electrical functionsAdditional heater wiring diagram

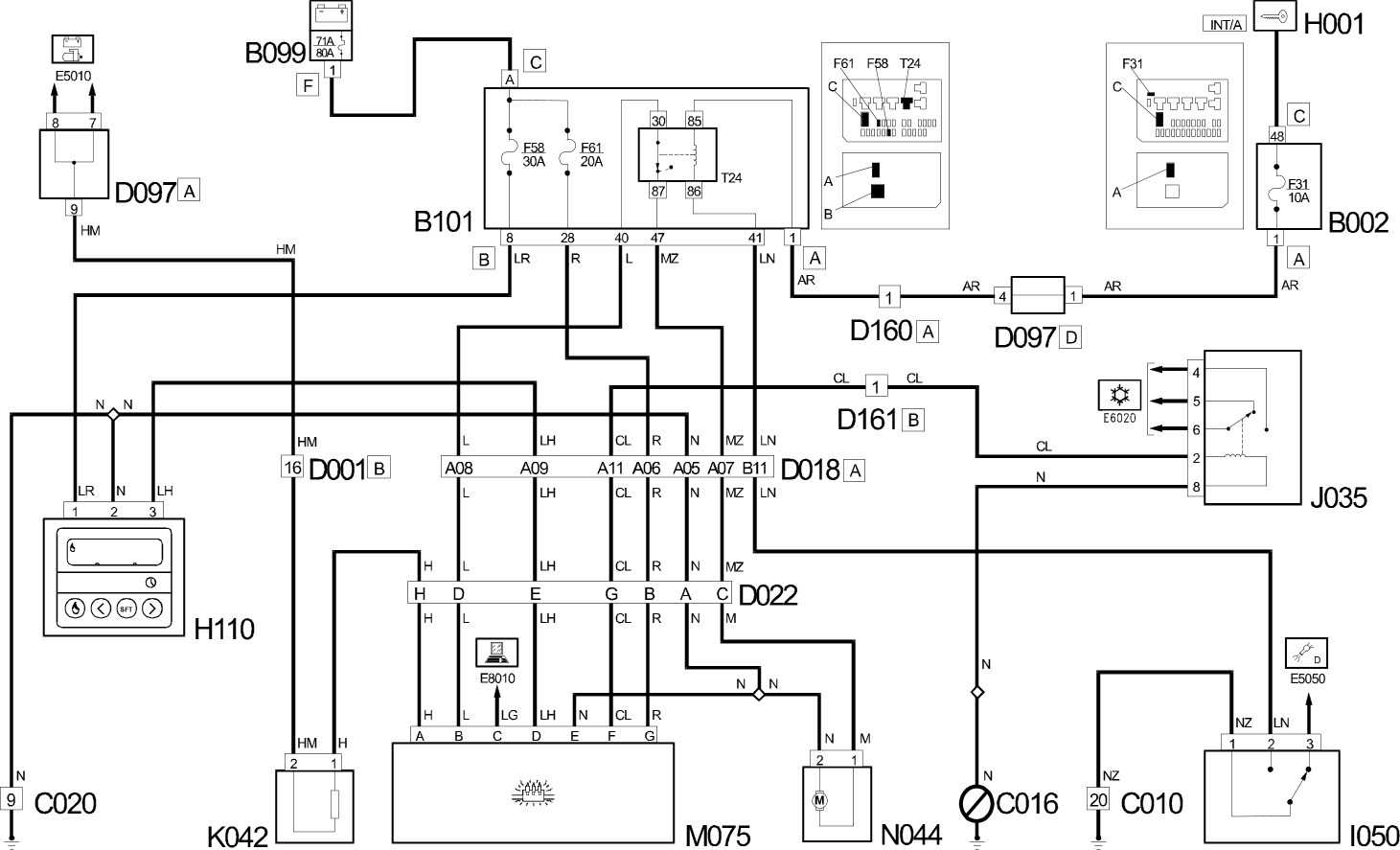

ADDITIONAL HEATER WIRING DIAGRAM
Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| B101 | OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD | |
| C010 | LEFT FRONT EARTH | |
| D001 | FRONT/DASHBOARD COUPLING | |
| D018 | ADDITIONAL FRONT/DASHBOARD COUPLING | |
| D022 | COUPLING FOR ADDITIONAL HEATER | |
| D097 | SHORT CIRCUITING COUPLING | |
| D160 | DASHBOARD/OPTIONAL DASHBOARD COUPLING | |
| H110 | ADDITIONAL AIR CONDITIONING TEMPERATURE CONTROLS | |
| I050 | INERTIA SWITCH | |
| K042 | AIR TEMPERATURE SENSOR | |
| K044 | AIR PRESSURE - TEMPERATURE SENSOR | |
| M075 | ADDITIONAL HEATER CONTROL UNIT | |
| N044 | ADDITIONAL HEATER ELECTRIC PUMP |
