INSTRUMENT LIGHTING WIRING DIAGRAM

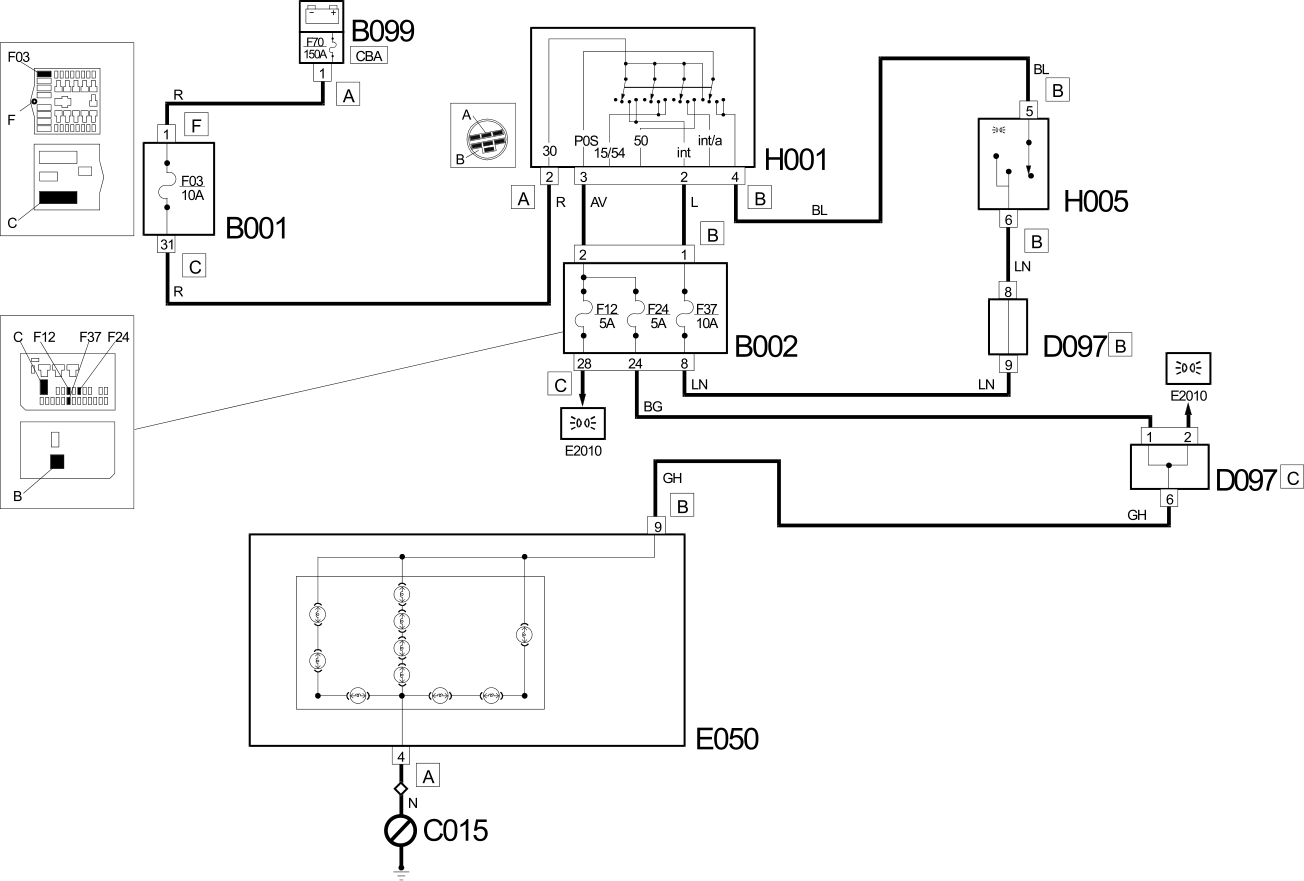

Wiring Diagram

INSTRUMENT LIGHTING WIRING DIAGRAM

Components

Component codeDescriptionReference to the assembly
B001JUNCTION UNIT
B002JUNCTION UNIT UNDER DASHBOARD
B099MAXI FUSE BOX ON BATTERY
C015DASHBOARD EARTH, DRIVER'S SIDE
D097SHORT CIRCUITING COUPLING
E050INSTRUMENT PANEL
H001IGNITION SWITCH
H005STEERING COLUMN SWITCH UNIT
