Wiring diagrams and electrical functions Courtesy lights wiring diagram
COURTESY LIGHTS WIRING DIAGRAM
Combi, Panorama, Van

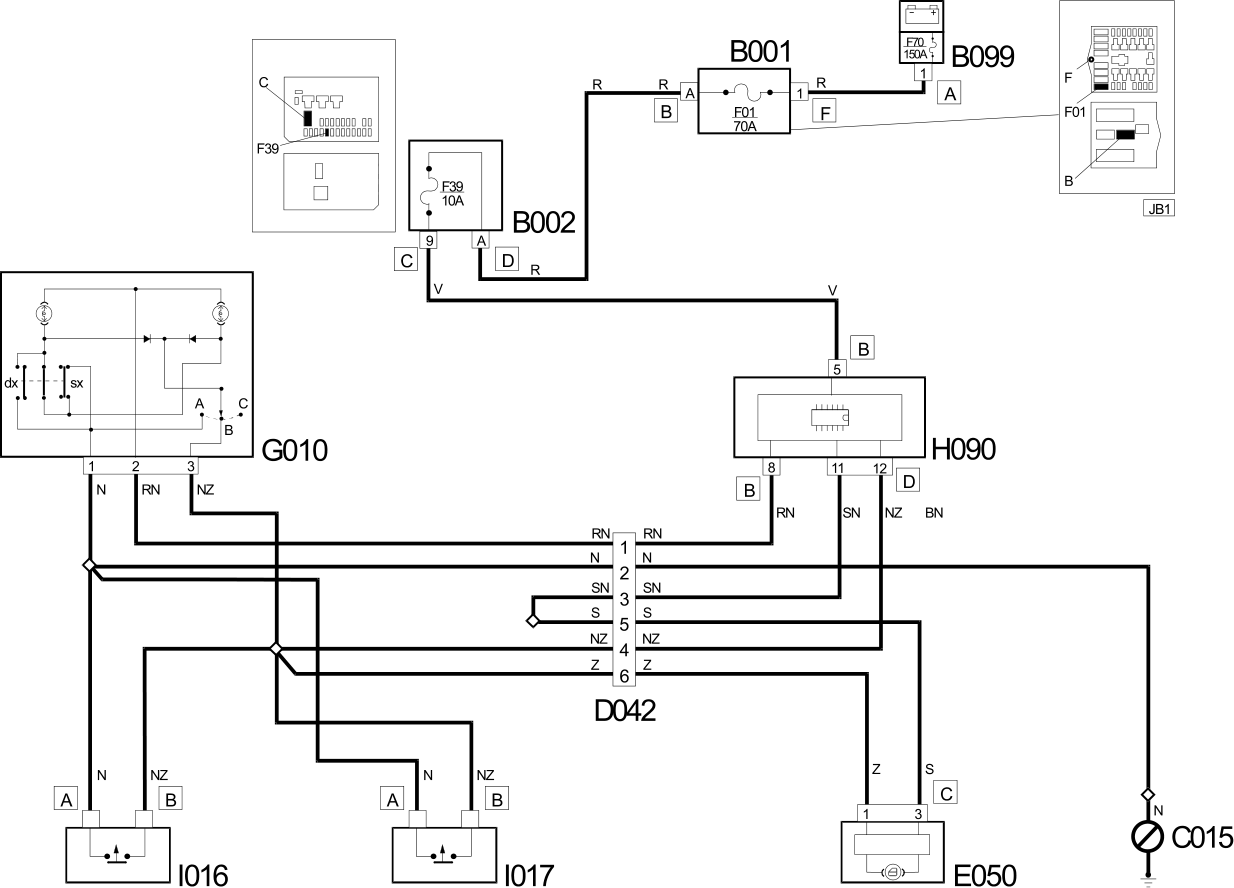

Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE D026 DASHBOARD/RIGHT REAR COUPLING D042 D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D171 RIGHT REAR/LUGGAGE COMPARTMENT COUPLING D174 OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING E050 INSTRUMENT PANEL G010 FRONT COURTESY LIGHT G011 G012 PASSENGER AREA REAR COURTESY LIGHT H090 SWITCH CONTROL PANEL H120 PASSENGER COMPARTMENT VENTILATION CONTROL I016 SWITCH ON LEFT FRONT DOOR I017 SWITCH ON RIGHT FRONT DOOR
Minibus

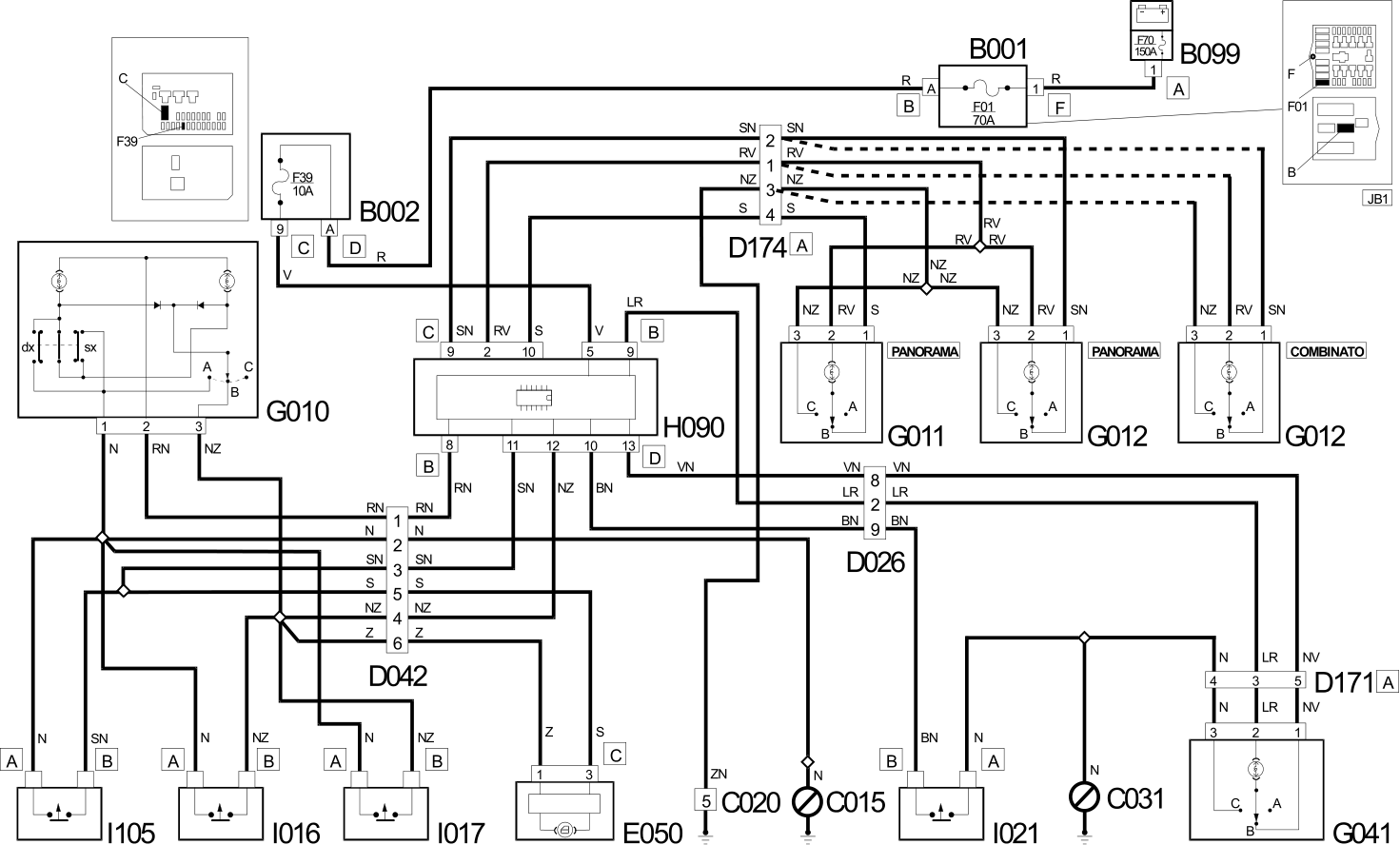

Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE C031 RIGHT REAR EARTH D026 DASHBOARD/RIGHT REAR COUPLING D042 D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D171 RIGHT REAR/LUGGAGE COMPARTMENT COUPLING D174 OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING E050 INSTRUMENT PANEL G010 FRONT COURTESY LIGHT G011 G012 PASSENGER AREA REAR COURTESY LIGHT G041 TAILGATE COURTESY LIGHT H090 SWITCH CONTROL PANEL H115 ADDITIONAL CONTROL PANEL H120 PASSENGER COMPARTMENT VENTILATION CONTROL I016 SWITCH ON LEFT FRONT DOOR I017 SWITCH ON RIGHT FRONT DOOR I021 SWITCH ON REAR DOOR I105 SWITCH ON RIGHT SLIDING DOOR PILLAR
Chassis cab
Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE C031 RIGHT REAR EARTH D026 DASHBOARD/RIGHT REAR COUPLING D042 D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D171 RIGHT REAR/LUGGAGE COMPARTMENT COUPLING D174 OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING E050 INSTRUMENT PANEL G010 FRONT COURTESY LIGHT G011 G012 PASSENGER AREA REAR COURTESY LIGHT G041 TAILGATE COURTESY LIGHT H090 SWITCH CONTROL PANEL H115 ADDITIONAL CONTROL PANEL H120 PASSENGER COMPARTMENT VENTILATION CONTROL I016 SWITCH ON LEFT FRONT DOOR I017 SWITCH ON RIGHT FRONT DOOR I021 SWITCH ON REAR DOOR I105 SWITCH ON RIGHT SLIDING DOOR PILLAR
20 Electrical
