SLIDING ROOF GLASS PANEL - R+R

Operation 7030B18 · SLIDING ROOF

Removing

- Fully open the sliding roof.

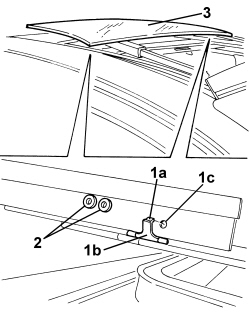

1. Working on both sides of the sliding roof, release retainers (1a) of guide detent (1b) from guide holes (1c).

2. Working on both sides, unscrew the bolts securing the glass to the guides.

3. Extract the glass from the guides with care.

Refitting

- Check that the glass is not damaged.

- If necessary, lubricate the guide sliding seats with vaseline.

1. Insert glass (1a) in the guides with care up to the protective gaiters (1b).

2. Workign on both sides of the sun roof, fasten protective gaiters (1b) to guides (2a).

3. Continue inserting glas (1a) until bolts (3a) can be screwed in.

4. Engage retainers (4a) of guide detent (4b) in holes (4c).

Op. 7030B17 SUN-ROOF GLASS - ALIGNMENT
