Sliding roof spoiler - r+r
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Sun roof/glass panel › Sliding roof spoiler - r+r
Body fittingsSliding roof spoiler - r+r

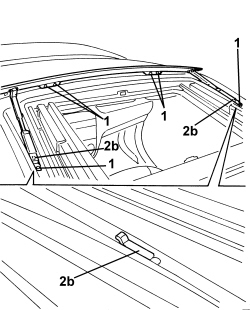

SLIDING ROOF SPOILER - R+R
Removing
- Fully open the sliding roof.
1. Unscrew the spoiler fixing bolts.
2. Remove spoiler (2a), moving it slightly forward to release from the side retainers (2b).
Refitting
- Check that the spoiler is undamaged.
- Position the spoiler and engage with the side retainers.
- Tighten the spoiler bolts.
- Check the spoiler moves correctly during sliding roof closure and opening.
