SUN ROOF (ASSEMBLY) - ALIGNMENT AND POSITIONING

Operation 7030B54 · SLIDING ROOF

Op. 7030B18 SLIDING ROOF GLASS PANEL - R+R

Op. 7030B42 SLIDING ROOF SPOILER - R+R

1. Working with care, return the sliding roof to closed position to return guides (1a) to their seats; during closure, guide cables (1b) into the seat to avoid incorrect positioning.

- Remove the rear parcel shelf

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

Op. 7065C86 CURRENT SOCKET IN LUGGAGE COMPARTMENT - R.R.

- Work on both sides.

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040E10 FRONT COURTESY LIGHT - R+R

- Remove all the grab handles.

.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R

- Remove both the seals.

Op. 7030B34 SLIDING ROOF COMPARTMENT DECORATIVE SEAL - R+R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

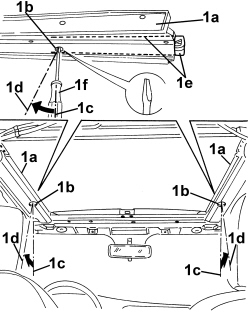

1. Working on one guide (1a) and then on the other, insert a medium-bladed screwdriver (1f) to the end of its travel through hole (1b). Hold in horizontal position (1c) and positioned as shown in the figure. Then, holding the tip pressed down, move to position (1d) to move internal guide (1e) forward.

Restore the screwdriver to position (1c) without pressing the tip, then hold the tip pressed down and restore to position (1d). Repeat the operation a few times until the screwdriver enters through internal guide (1e).

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

Op. 7030B34 SLIDING ROOF COMPARTMENT DECORATIVE SEAL - R+R

Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7040E10 FRONT COURTESY LIGHT - R+R

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7065C86 CURRENT SOCKET IN LUGGAGE COMPARTMENT - R.R.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

- Fully open the sliding roof.

Op. 7030B42 SLIDING ROOF SPOILER - R+R

Op. 7030B18 SLIDING ROOF GLASS PANEL - R+R
