SUN ROOF CONTROL SWITCH - R+R
Removing

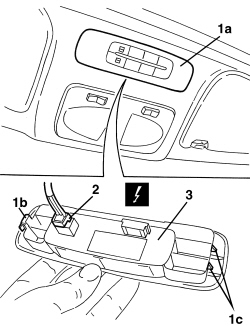

1. Move the switch unit (1a), releasing the flexible retainers (1b) and then the rigid retainers (1c).
2. Disconnect the electrical connection.
3. Keep the switch unit.
Refitting
- Check that the switch assembly is not damaged.
- Connect the electrical connection.
- Position the switch unit and do up the rigid retainers, then the flexible retainer.
