SUN-ROOF GLASS - ALIGNMENT

Operation 7030B17 · SLIDING ROOF

- Fully close the sun-roof.

1. Check that the sun-roof glass (1a) is properly aligned with the body and the fixed glass (1b).

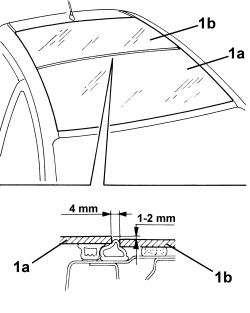

Check that the position of glass (1a) in relation to fixed glass (1b) respects the measurements shown in the detail along the entire width of the glass.

If necessary, adjust the position of glass (1a) as described below.

1. Fully open sun-roof (1a).

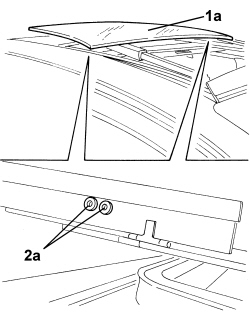

2. Working from both sides of the vehicle, loosen bolts (2a) securing the glass and use the slotted holes to adjust the glass position. Tighten the bolts.

3. Repeat point 1.
